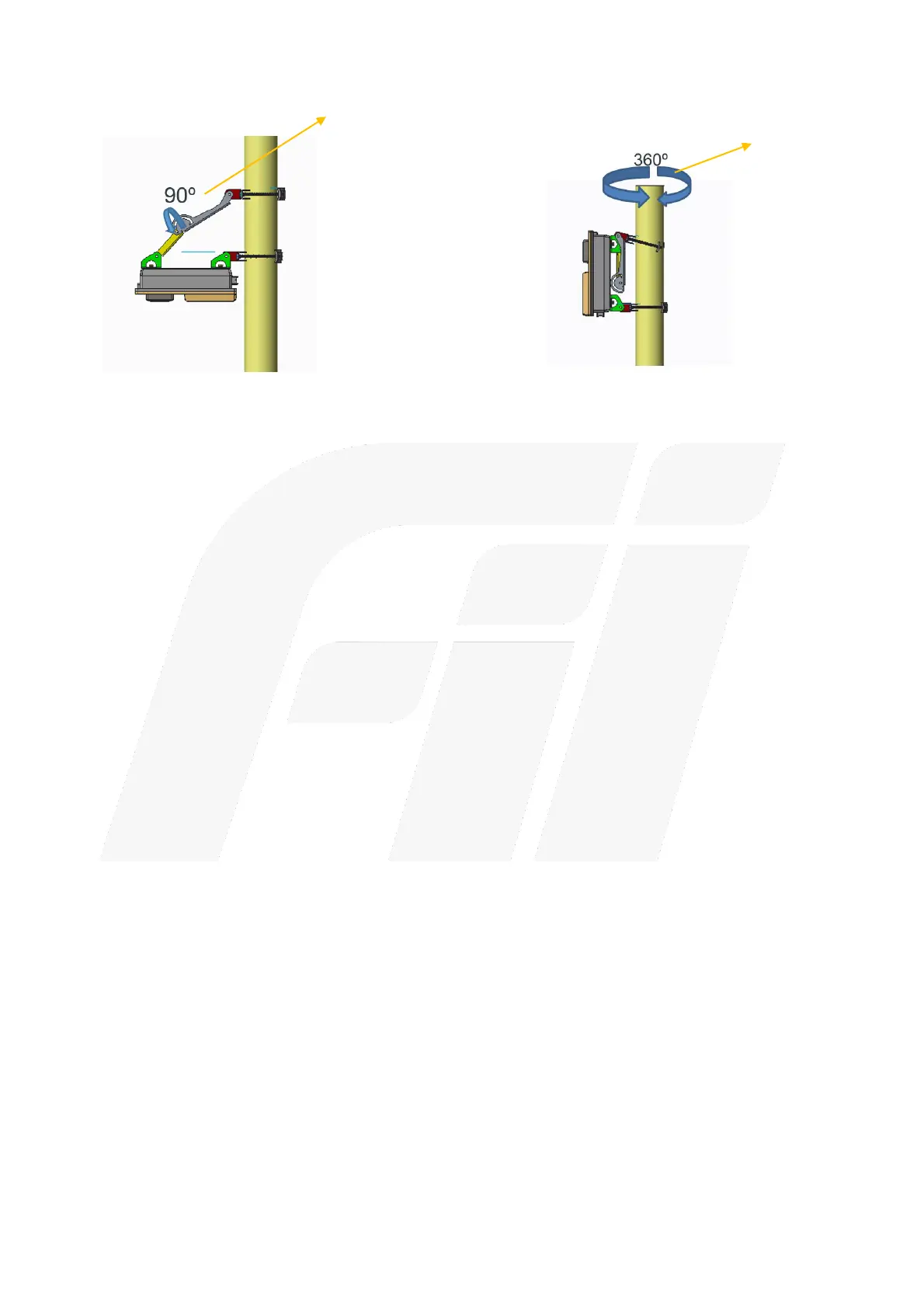

Figure 3.4 (a) Figure 3.4 (b)
Figure 3.4 – Bracket flexibility
The pole mount bracket is very flexible to allow a complete 360 rotation of the mounted
small cell in the horizontal plane. This allows the small cell to be installed pointing in any
direction required. The bracket is also capable of a 90 rotation in the vertical plane. This means
the small cell can be pointed towards the ground or towards the roof as required.
The small cell can be rotated by 90 from the pole in vertical direction by manual rotation as
shown in Figure 3.4 (a). To rotate the small cell in the horizontal plane, loosen the hex nuts and
then rotate to the desired direction as shown in Figure 3.4(b). Fasten the hex nuts tightly.
