1-2 TX433XL Transmitter Overview

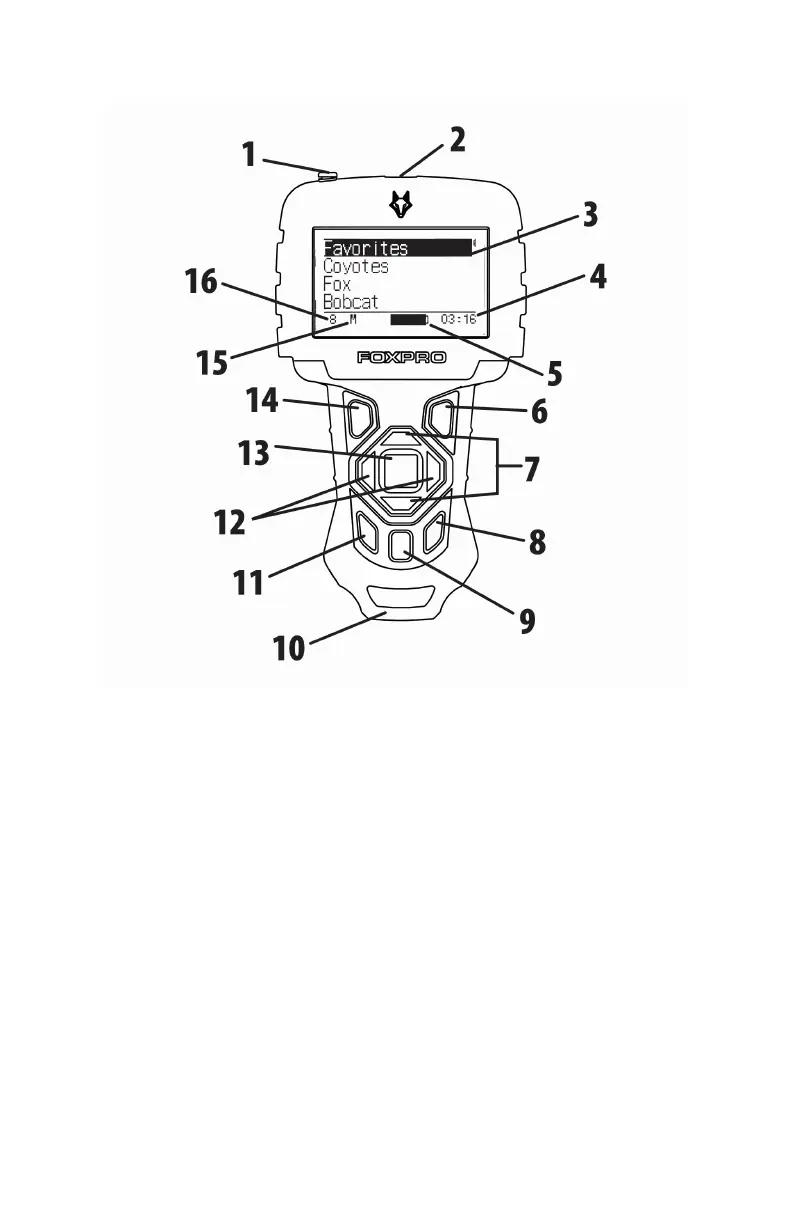

Figure 2 TX433XL Transmitter
The image above depicts the TX433XL transmitter. The image contains
numbered lines pointing to various areas of the transmitter. The
following text describes each of those areas. The transmitter has two
main sections. The handle portion contains buttons that allow you to
interact with the transmitter. Above the handle is a display that
provides information such as sound categories and names, volume, and
more. Not pictured in the image is the battery compartment door,
which is located on the backside of the transmitter.
1. On the top-left side of the transmitter is the telescopic antenna.
2. To the right of the antenna is the sound upload jack.
