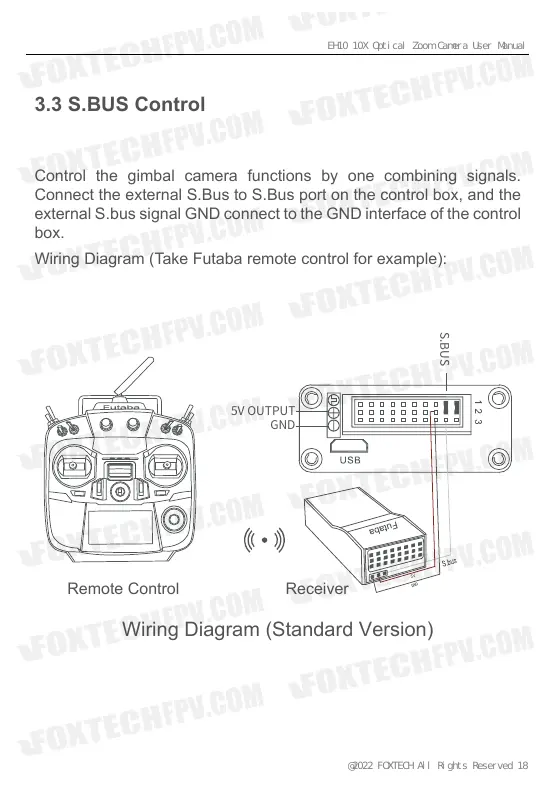

3.3 S.BUS Control
S.BUS
5V OUTPUT
GND
Control the gimbal camera functions by one combining signals.
Connect the external S.Bus to S.Bus port on the control box, and the
external S.bus signal GND connect to the GND interface of the control
box.
Wiring Diagram (Take Futaba remote control for example):
Remote Control Receiver
Wiring Diagram (Standard Version)
EH10 10X Optical Zoom Camera User Manual
@2022 FOXTECH All Rights Reserved 18
