PC
GND
S.BUS
TTX
RXD
GND
TXD
RX-
RX+
TX+
TX-
GND
GANL
CANH
DC5V
Quick-mount Version Control Box
USB to TTL Cable

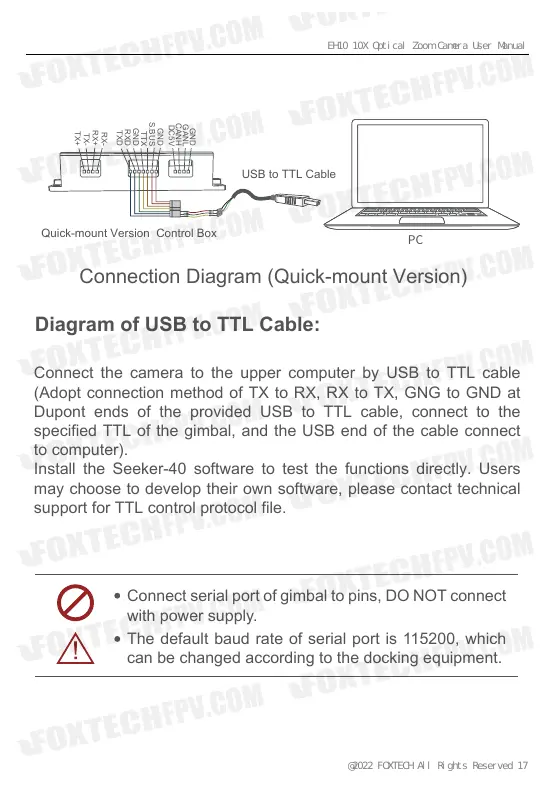

Connection Diagram (Quick-mount Version)
Diagram of USB to TTL Cable:
Connect the camera to the upper computer by USB to TTL cable
(Adopt connection method of TX to RX, RX to TX, GNG to GND at
Dupont ends of the provided USB to TTL cable, connect to the
specified TTL of the gimbal, and the USB end of the cable connect
to computer).
Install the Seeker-40 software to test the functions directly. Users
may choose to develop their own software, please contact technical
support for TTL control protocol file.
Connect serial port of gimbal to pins, DO NOT connect
with power supply.
The default baud rate of serial port is 115200, which
can be changed according to the docking equipment.
EH10 10X Optical Zoom Camera User Manual
@2022 FOXTECH All Rights Reserved 17
