Foxtech EH10 10X User Manual

Hardware Parameter
Gimbal Spec
Working voltage
Input voltage
Output voltage
Dynamic current
Idle current
450~700mA @ 12V
450mA @ 12V
12V
3S ~ 6S
5V (connect with PWM)
Working environment
temp
Output
Local-storage
Photo storage format
Video storage format
JPG (1920*1080/1280*720)
MP4 (1080P/720P 25fps/30fps)
Vibration angle
Pitch/Roll: ±0.02°, Yaw：±0.02°
Control method PWM / TTL / S.BUS / TCP
-20℃ ~ +60℃
IP (720p/1080P 25/30fps)
Mechanical Range
Pitch/Tilt: -60°～120°, Roll: ±35°,
Yaw/Pan: ±360°*N (IP output version)
Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N
(IP output version)
Controllable Range
SD card (Up to 128G,class 10, FAT32)

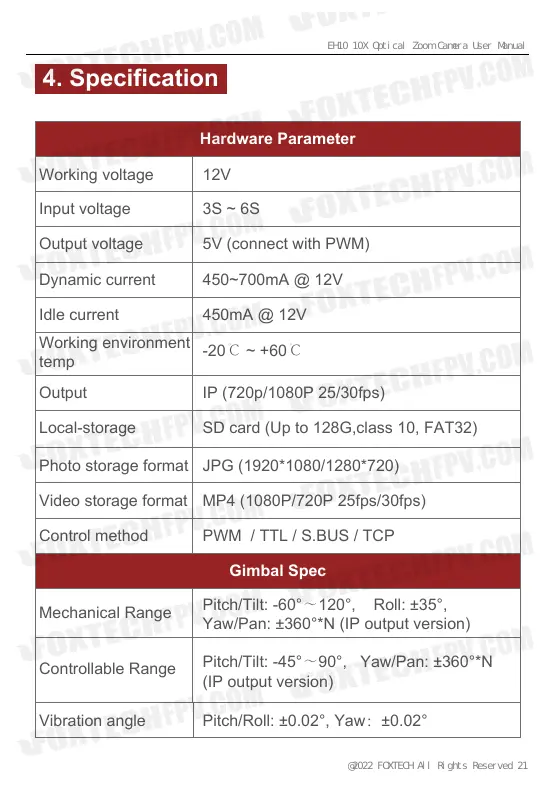

4. Specification
EH10 10X Optical Zoom Camera User Manual
@2022 FOXTECH All Rights Reserved 21
EH10 10X Optical Zoom Camera

Foxtech EH10 10X Specifications

General

Brand	Foxtech
Model	EH10 10X
Category	Digital Camera
Language	English
