FPI U31-2 Gas Fireplace Insert
INSTALLATION

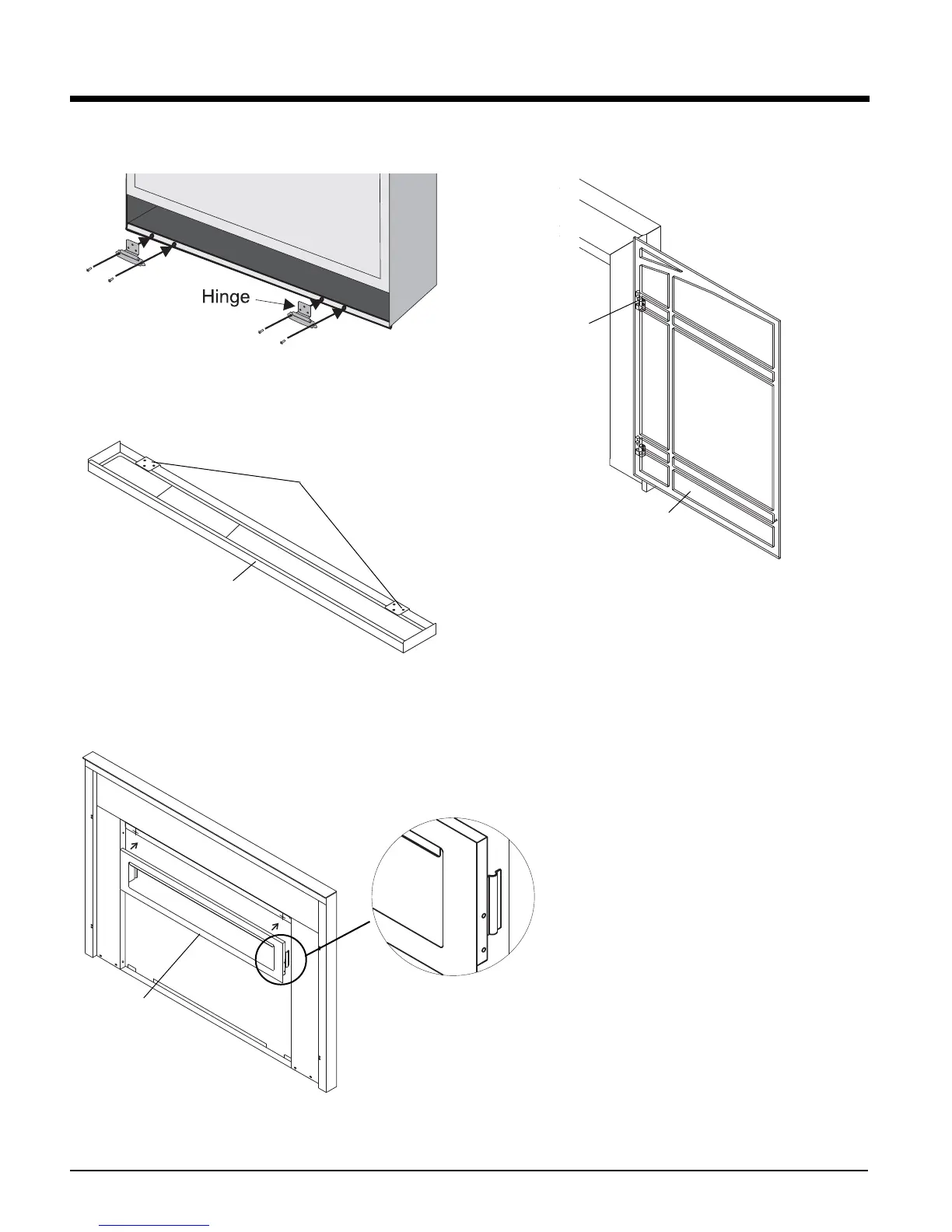

5) Place Bottom Frame near hinge. Flip hinge over Bottom Frame and
secure with 3 screws.
4) Install Spring Hinges on the Left and Right Side of the bottom of the
fi rebox using 2 screws per hinge.
6) The Top Frame is held in place by friction fi t, if the frame needs to
be adjusted; bend the bracket accordingly.
Top Frame
Hinge
Screen Door
7) Install the Left and Right Side Screen Doors in the fully open position
by placing over top of the hinges on the full screen door.
8) Close screen doors.
NOTE: If you fi nd that the doors do not align properly, adjust the
hinges on the door(s) by loosening them and adjust accordingly.
Bottom Frame
Hinge Location
