29
FPI U31-2 Gas Fireplace Insert
PARTS LIST
Bay Door
400-988 Bay Door c/w Black Trims
102) * Glass Retainer Side
103) * Glass Retainer Front
106) 940-315/P Side Glass
107) 936-243 Gasket - Adhesive Backing
108) 940-314/P Center Glass
110) 902-183 Bay Brick Panel - Standard
111) * Door Trim
112) 904-196 1" Round Magnet
910-424 Extension Knob - Pilot ON/OFF
910-426 Extension Knob - Flame HI/LOW
402-956 Gold Trim Bay Front

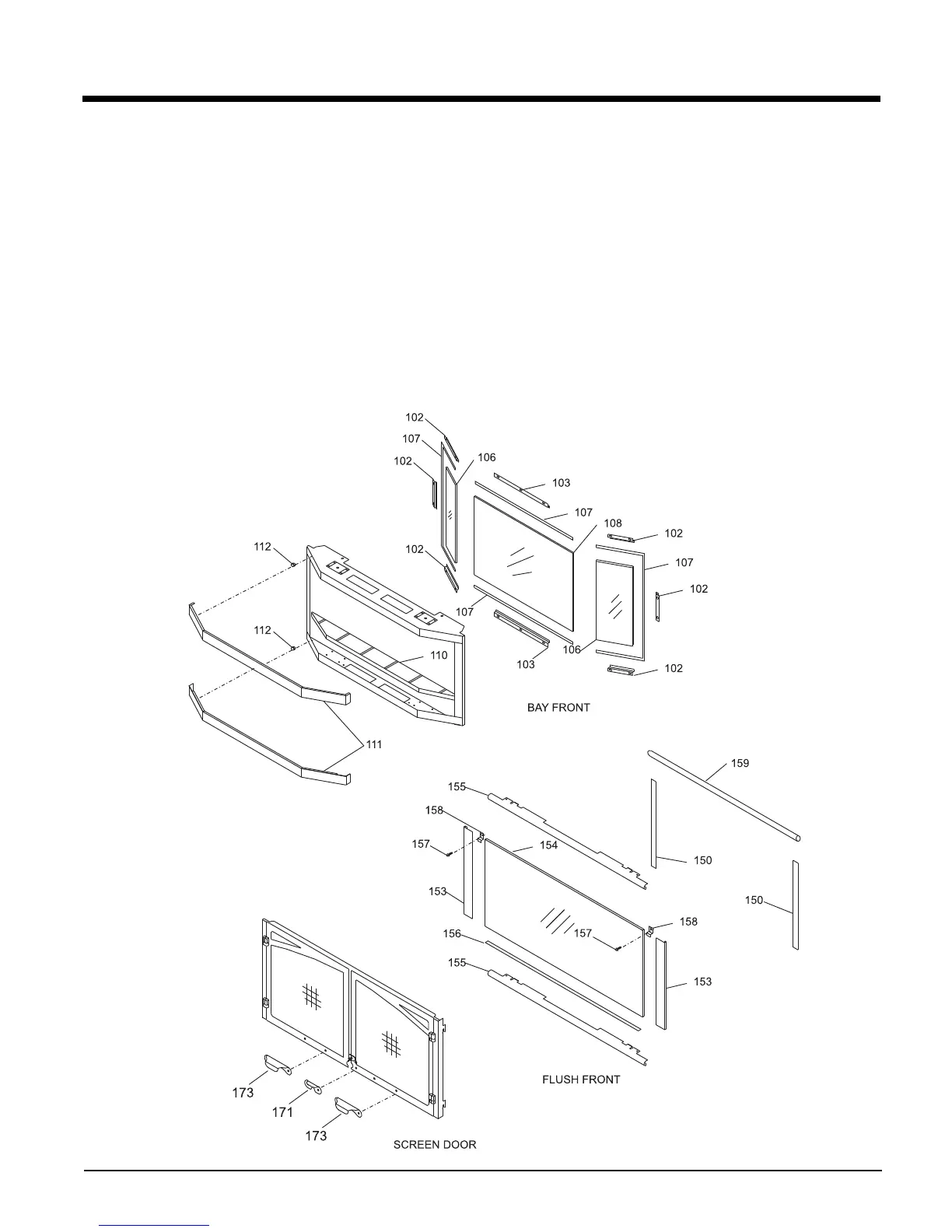

Bay & Flush Front Assembly
Part # Description Part # Description
Flush Door
402-515/P Complete Flush Front
150) 936-243 Door Frame Gasket - 7/8"
153) * Glass Side Trim
154) * Flush Glass
155) 402-046 Glass Support Trim - Black
156) 936-238 Flush Glass Gasket
157) * Screw #10-24 x 1/2"
158) 402-033 Flush Glass Bracket
159) 936-233 3/4" Rope Gasket
402-943 Complete Double Screen Door
171) 512-546 Door Latch
173) 430-133 Handle
*Not available as a replacement part.
