7
ENGLISH
N45 SM1A/SM1X/SM2A/SM2X -
N45 TM1A/TM2A

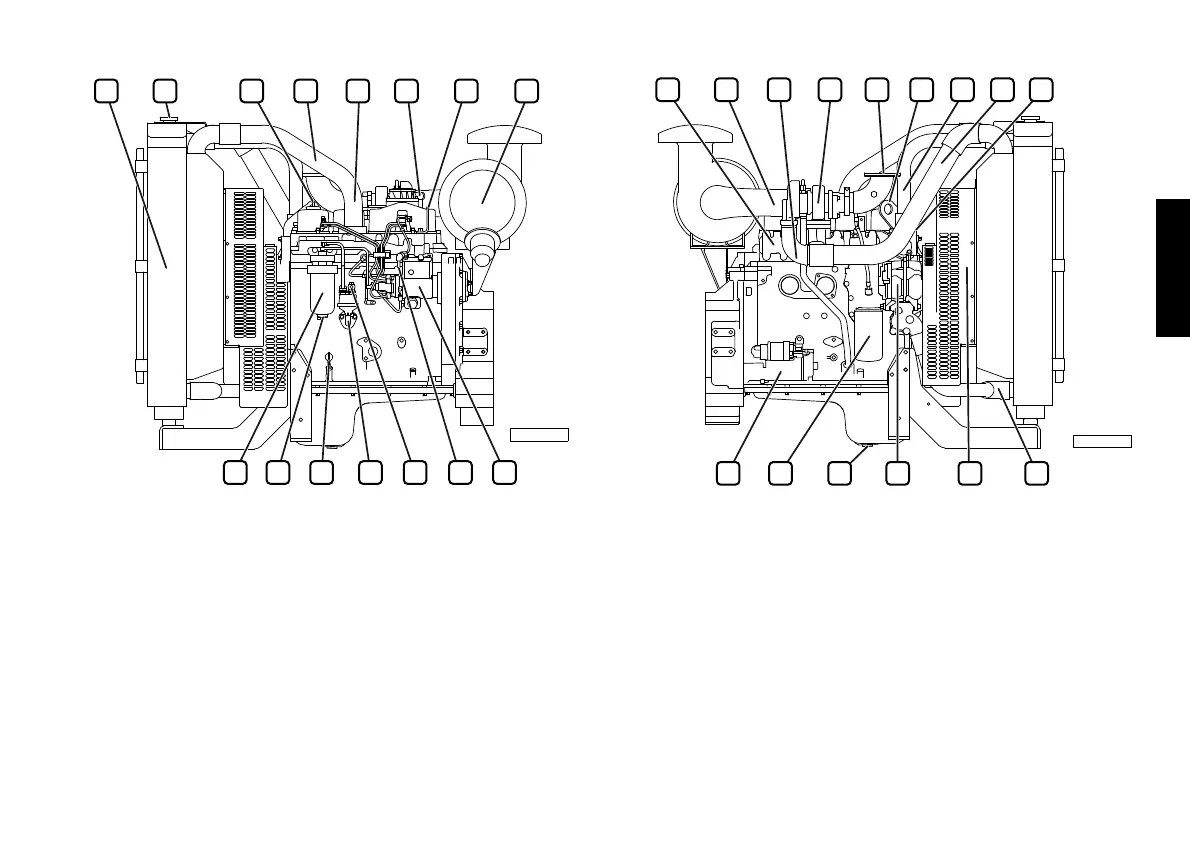

1. Heat exchanger/s - 2. Coolant filler cap - 3. Oil filler cap - 4. Engine
air inlet manifold - 5. Oil vapour bleeder - 6. Lifting U-bolt - 7. Air
filter - 8. Injection pump - 9. Fuel outlet connector to tank - 10. Fuel
inlet manifold from tank - 11. Hand pump - 12. Oil dipstick - 13. Fuel
filter condensation drainage plug - 14. Fuel filter.
*) Excluding versions SM
N45 SM1A/SM1X/SM2A/SM2X -
N45 TM1A/TM2A
1. Exhaust manifold - 2. Turbocharger air intake - 3. Turbocharging air
outlet - 4. Turbocharger- 5. Exhaust outlet - 6. Lifting U-bolt -
7. Coolant outlet manifold from engine - 8. Location of thermostatic
valve - 9. Engine coolant inlet connector sleeve - 10. Fan -
11. Alternator - 12. Lubricant oil discharge plug - 13. Oil filter -
14. Electrical starter motor.
*) Excluding versions SM
1
1314 1112 10 9 8
2 3
*
4
5
6 7
1
1314 12 11 10 9
2 3 4 5 6 7
*
8
