6

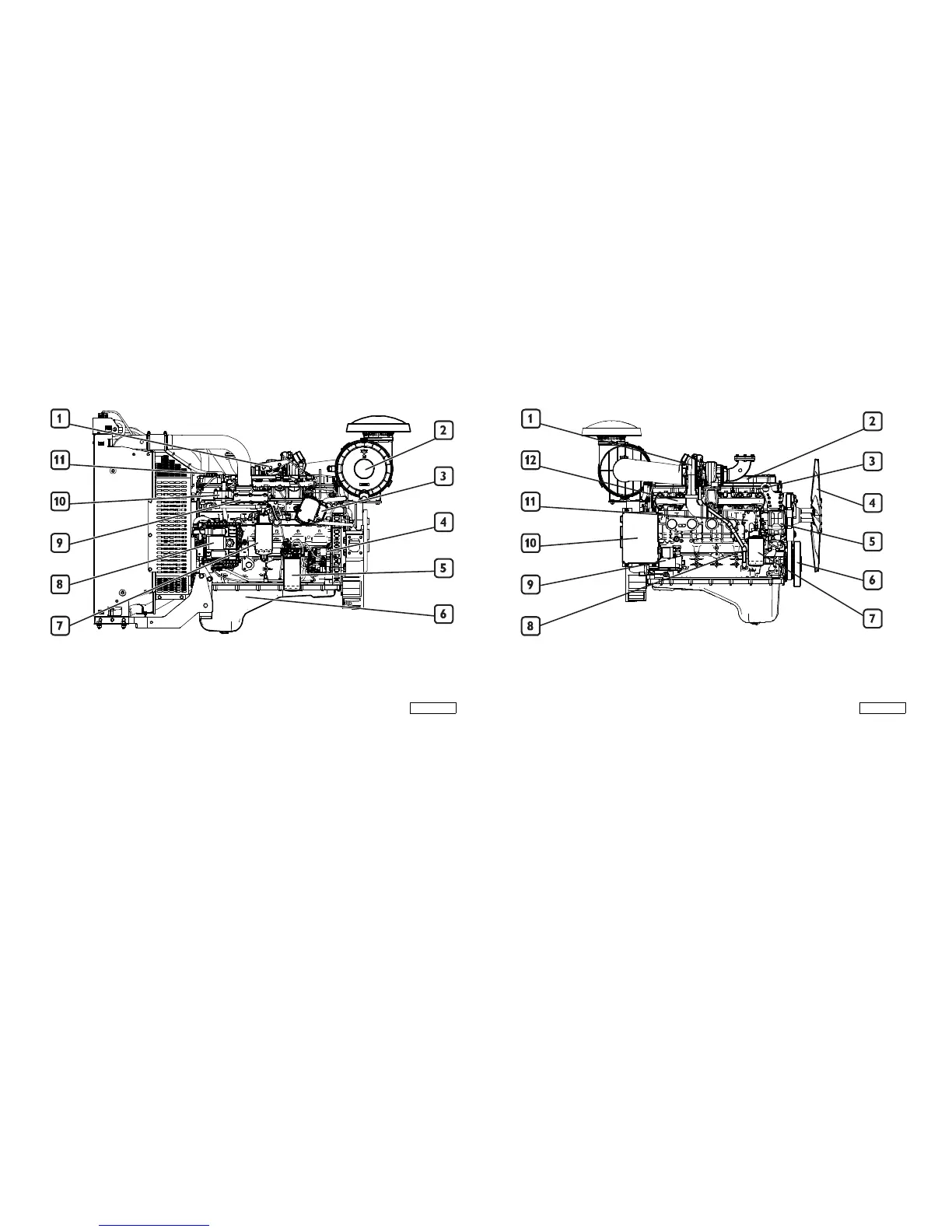

NF67TE8W.S550
1. Turbocharger - 2. Air filter - 3. Blow-by filter - 4. Fuel high-pressure
pump - 5. Fuel filter - 6. Oil sump - 7. Pre-fuel filter - 8. Engine Control
Unit EDC17CV41 - 9. Grid heater - 10. Intake manifold - 11. Oil filler
cap
NF67TE8W.S550
1. Turbocharger - 2. Tappet cover - 3. Lifting eyelet - 4. Fan -
5. Alternator - 6. Crankshaft pulley with damper - 7. Engine oil filter -
8. Turbocharger lubrication oil return pipe - 9. Electric starter motor -
10. Interconnection Control Unit - 11. Heat exchanger lubricant oil /
coolant - 12. Exhaust manifold
