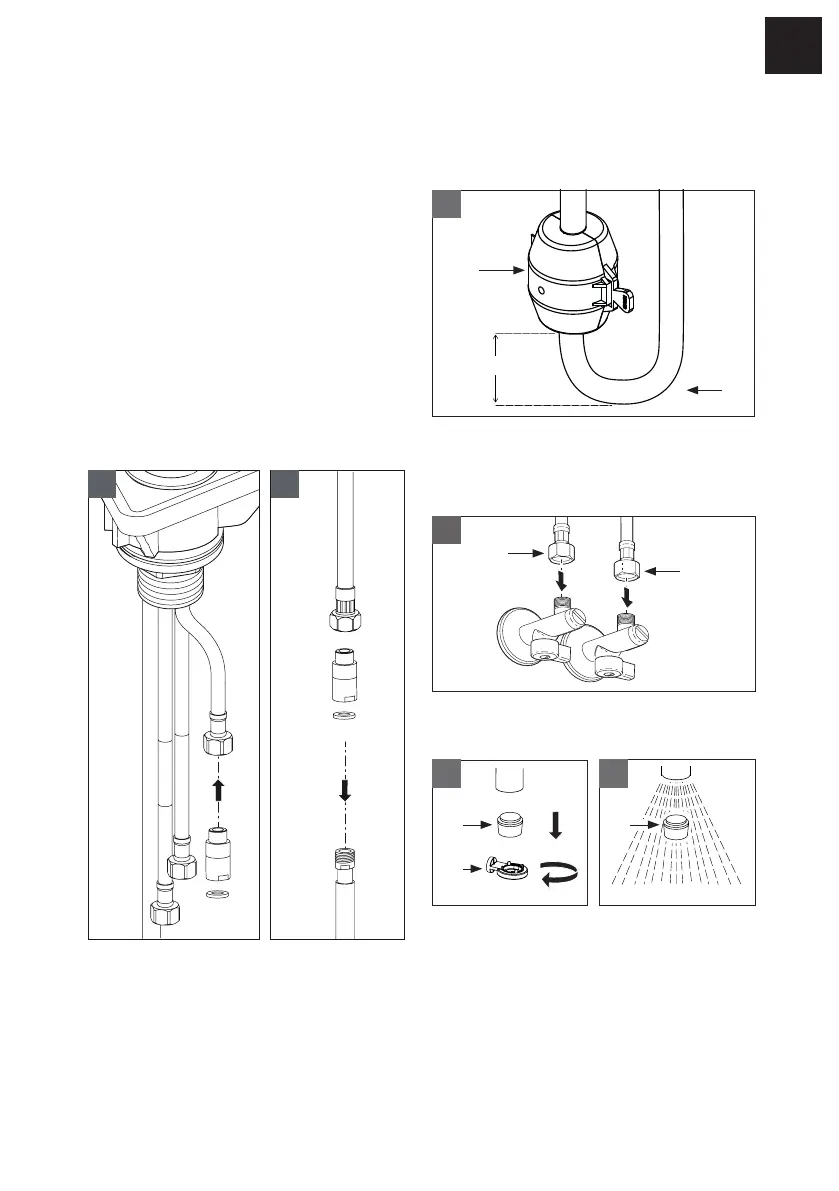

6. Install the mounting hardware to the
mounting shank of the Faucet Base (1)
underneath the mounting surface in
the following order: Rubber Washer (3),
Plastic Flange (4) and Fixing Plate (5)
(fig. 2B).
7. Secure the faucet by tightening the
Fixing Nut (6) onto the mounting shank
of the Faucet Base (1) and tightening the
screws in Fixing Nut (6) (fig. 2B).
8. Connect the Check Valve Holder (7)
to the Spray Supply Hose (8) (fig. 2C).
Then connect the Check Valve Holder (7)
to the Spray Hose (13) (fig. 2D). Make
sure the O-ring (7a) is in place in the
Check Valve Holder (7).
2D
2C
7
7
7a
13
8
8
9. Attach the Weight (9) to the Spray
Hose (13) approximately 2” above the
bend in the bottom of the Spray Hose
(fig. 2E).
2“
2E
13
9
10. Connect the Flexible Supply
Hoses (11) to the water supply in the
home (fig. 2F).
2F
11
11
11. Remove the Aerator (12) using the
Aerator Key (10) (fig. 2G).
2H
12 12
2G
10
12. Turn on water, flush the faucet and
Aerator (12) to remove any debris and
check for leaks (fig. 2H).
13. Reinstall the Aerator (12) and ensure
everything is functioning properlty.
