Technical data
Operating data Value
Operating pressure (ideal) 60 PSI 4 bar 400 kPa
Operating pressure (max.)* 115 PSI 8 bar 800 kPa
Operating pressure (min.)*
30 PSI
2 bar 200 kPa
Water temperature (ideal) 140°F 60°C
Water temperature (max.) 158°F 70°C
Hole Size For Faucet 1
3/8
“ 35mm
INSTALLATION INSTRUCTIONS
1. Remove all contents from the package
and check for completeness.
2. Turn off water supply.
3. Cut a mounting hole 1 3/8“
diameter (35mm) in the desired mounting
surface (if one isn’t available).

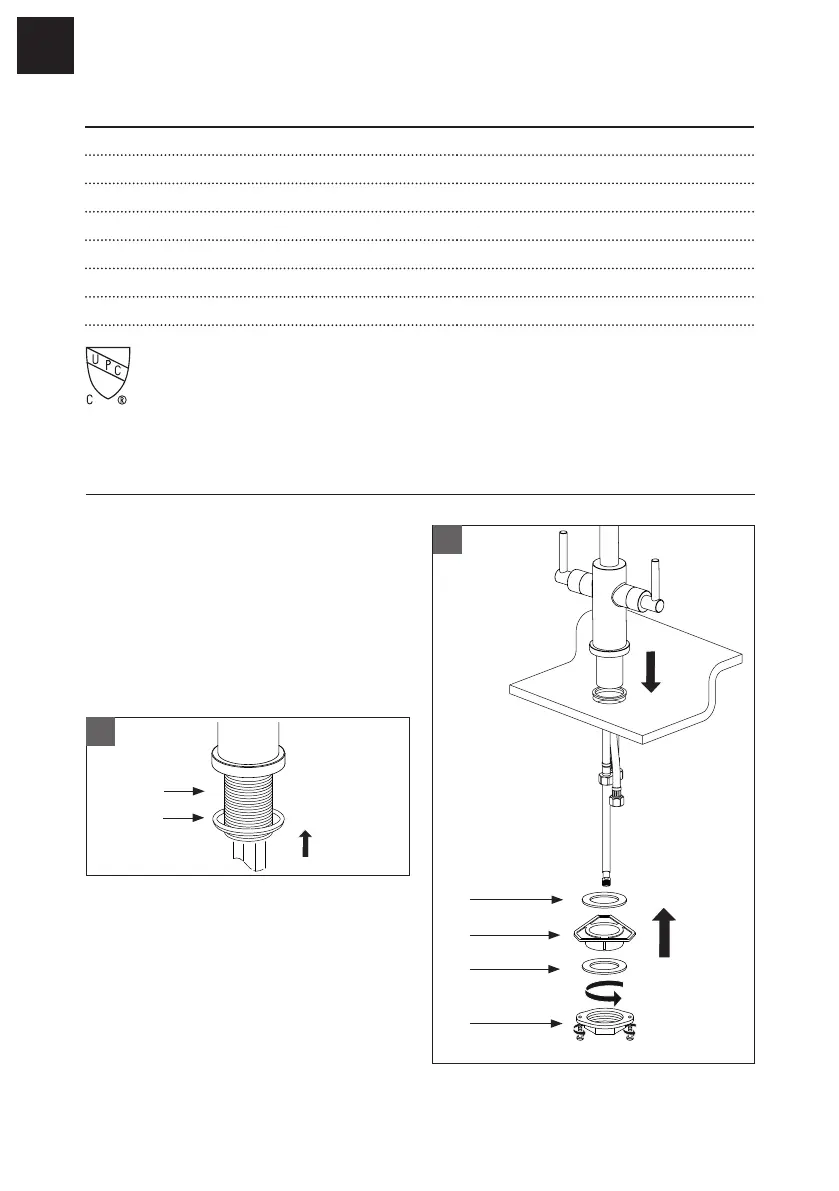

4. Ensure Base O-ring (2) is in place in the
Faucet Base (1) (fig. 2A).
2A
2
1
5. Insert the Faucet into the hole, Hoses
first (fig. 2B).
ATTENTION: Base-O-Ring (2) should
be sitting between the countertop and
Faucet Base. DO NOT use putty or other
sealant at this location.
NOTES: Solid surface installation: The
countertop mounting surface needs to be
flat and free of debris; otherwise the faucet
may not sit properly and could leak.
2B
3
5
6
4
Certifies this faucet complies with ASME A112.18.1 / CSA B125.1 & NSF 61, NSF 372 and
AB1953. The faucet also complies with water usage requirements of the California
Energy Comission and the US Department of Energy.
