Franke MINERVA User Manual

2
cold
hot
hot
cold
Ø 35 mm
min.
60 mm
3
4
189
168
86
116
78
241
362,5
59
80
59
2
2
O
59 59
80
43
50
M35
The Kettle Tap is suitable for dispensing boiling water (100°C) and hot and cold water. The connections of
the mixer section can be connected with filter valves directly to the hot and cold water mains. The boiling
water hose of the Kettle Tap should be directly connected to the Franke Heating Tank. See Heating Tank
Installation Manual.
In this Installation Manual are the instructions for the correct connection and safe use of the Kettle Tap.
If the Kettle Tap is not installed according to these instructions the warranty is invalid. The manufacturer
is not liable for damages resulting from non-compliance with the installation or user instructions, and is
for domestic kitchen use only.
INTRODUCTION

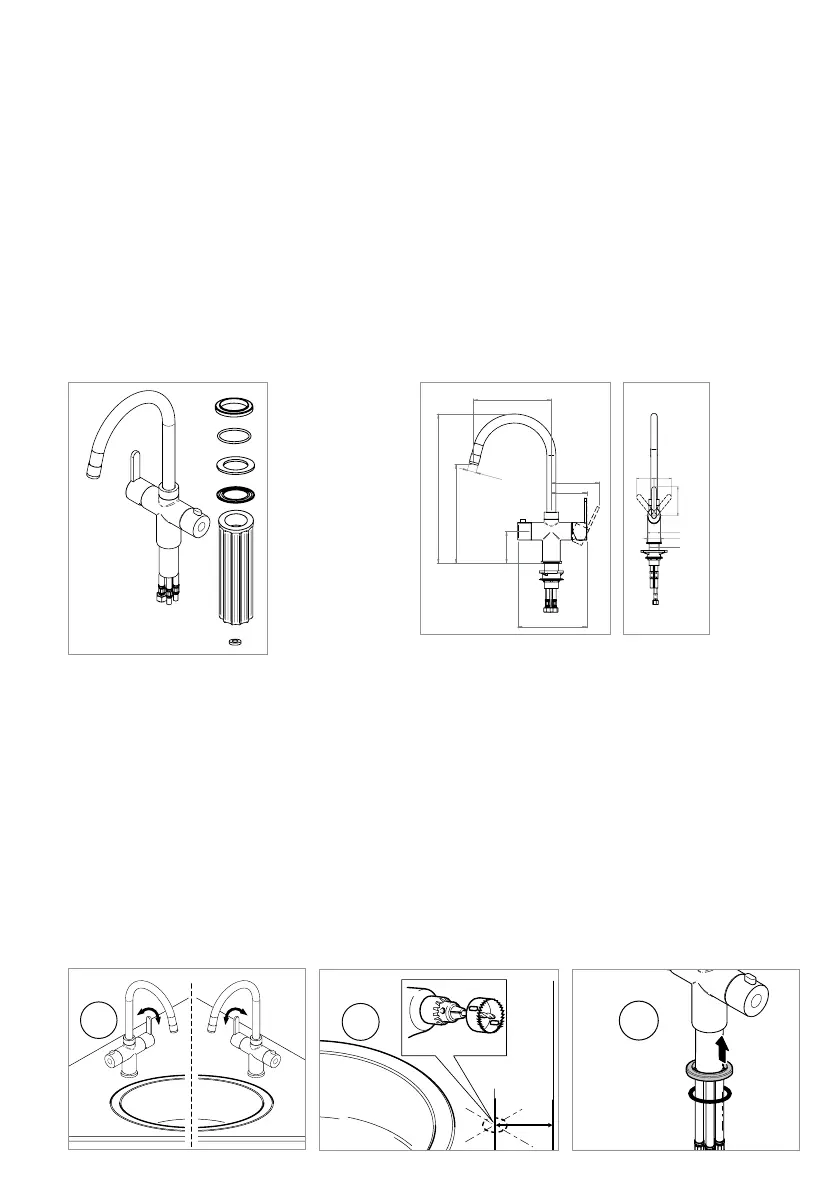

PACKAGE CONTENTS
Check the contents of the box
MOUNTING
1. Slide the 3-in-1 tap with the flexible hoses through the drilled hole.
2. Slide the gasket and retaining plate on to the threaded tube.
3. Tighten the locking spanner firmly.
4. Connect the flexible boiling water hose of the Itho 3-in-1 tap to the boiling water hose of the boiling water
vessel. Make sure to use the gasket between both boiling water hoses. Connect the hot and cold water
hoses with the mains pipes.
The picture illustrates these connections:
a. Cold water, (10mm compression fitting)
b. Hot water, (10mm compression fitting)
c. Boiling water, (connection M10 x 1,25 & gasket)
1x
1x
1x
1x
1x
1x
1x
1x Kettle Tap
1x Plinth
1x Seal
1x Rubber Gasket
1x Clamp Plate
1x Locking Spanner
1x Gasket
Caution: Place the gasket
between the hose of the tap and
the hose of the Heating Tank.
A spare gasket is supplied with
the Heating Tank.
Option: If necessary, install a
filter valve on either side of the
water filter for easy access and
maintenance.
Filling and venting the
heating tank.
1. Close the boiling water tap.
2. Open the mains valve.
3. Open the inlet valve of the
pressure relief valve.
4. Open the boiling water tap.
5. Wait until water flows
from the tap.
6. Let the water flow for
3 minutes until clear water
flows from the tap.
7. Check for leaks, rectify as
necessary.
Continue with the installation of
the Franke Heating Tank.
4
a
b
c
2
3
1
13mm
c
100 C
1
2
OPERATION OF THE BOILING WATER CENTRAL KNOB
When you start using the Kettle Tap, always flush a cupful of residual water prior to making tea or coffee.
This will eliminate the air bubbles from the surface water of your drink. Caution: The tap delivers boiling
water (at 100˚C) at all times, and care should be taken to avoid scalding.
This appliance is not intended for use by children, users with a physical or mental disability or users with
insufficient knowledge, unless they have received adequate instruction on the operation of the appliance by a
person who is responsible for their safety. Children must not play with the appliance under any circumstances.
Operation of the boiling water function
1. It is advisable to hold your cup, teapot or saucepan close to the outlet of the tap spout.
This will prevent the water from splashing and enable you to operate the Kettle Tap safely.
2. Press the release button and turn the knob.
NB: Releasing the button of the handle will immediately shut off the boiling water supply.
Operation of the Hot/Cold Lever
Utilise the vertical lever in the conventional way for the supply of normal hot, cold or mixed water.
Child safety
The tap is fitted with a childproof control knob which requires a push and turn action to operate it.
Caution:
The temperature of the
water is 100°C therefore
care should be taken to
avoid scalding!
INSTALLATION OF FRANKE MINERVA 3-IN-1 KETTLE TAP
Caution: This boiling water tap must only be connected to the Franke Heating Tank.
Preparation
1. Mount the Franke Heating Tank (see separate Installation manual).
2. Locate the Minerva 3-in-1 Kettle Tap on the sink or worktop.
Tip: Choose left or right handed use! This tap delivers boiling water, therefore we recommend that you
position the spout opposite to the boiling water control. Bear in mind also the position of the sink bowl(s)
and whether you are left or right handed.
Reverse the hot and cold operation by exchanging the position of the hot and cold water hoses in the tap body.
3. If necessary drill a hole Ø35mm at least 60mm from the back.
4. Slide the plinth and the O-ring over the foot.
FR101020 Kettle Tap Instructions Leaflet.indd 4-6 15/03/2011 15:56

Franke MINERVA Specifications

Operating Environment

maximum operating pressure (boiling water part)	1-3 bar
maximum operating pressure (mixer part)	1-5 bar
maximum temperature (boiling water part)	110 ˚C
maximum temperature (mixer part)	80 ˚C

Flow Rate

maximum flow rate (boiling water part)	3.5 l / min at 3 bar pressure
maximum flow rate (mixer part)	10 l / min at 3 bar pressure

Weight and Dimensions

outlet height	241 mm
overall tap height	362.5 mm
maximum worktop depth	50 mm
tap hole diameter	35 mm
