Franke TENDER - Installation

INSTALLATION
Cooker hood for wall mounting. The cooker
hood is equipped with Easy Clean motor
package HE (High Efficiency), LED lighting
and a metal mesh filter. The cooker hood
has four speeds and a timed ventilation
mode. Installation, use, care, maintenance
etc., are described in these instructions.
TECHNICAL INFORMATION
A
cm 60 70 90
A 598 698 898

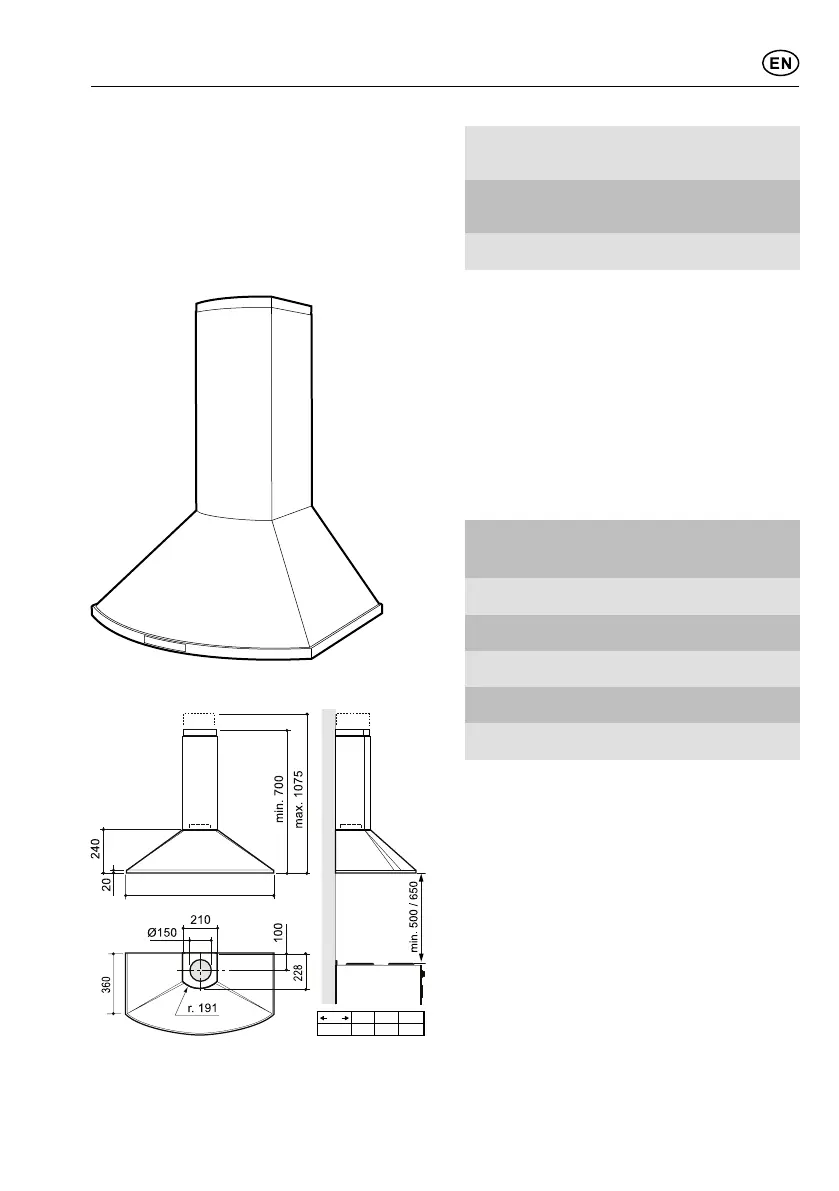

Fig. 1
Measure-
ments
see Fig. 1
Electrical
installation
230 V ~ earthed
Lighting LED 2 x 2 W
INSTALLATION
Fixing parts, screws for mounting, etc. are
supplied with the cooker hood.
Electrical installation
The cooker hood is supplied with a cable
and earthed plug for connection to an ear-
thed socket. The socket should be acces-
sible after installation is complete.
Installation Components
D
2 pcs
Brackets for the upper
chimney
E 7 pcs
Wall plugs
F
7 pcs
Screws 4,5 x 39 TORX T25
G
2 pcs
Screws 2,9 x 9,5 TORX T10
H
1 pcs
Cold breed protection
I 1 pcs
Ventilation tape
991.0520.120/D000000006918/180382/2021-10-08 11
