Franklin Chef FIM400 - Typical Installation of Ice Storage bin

8

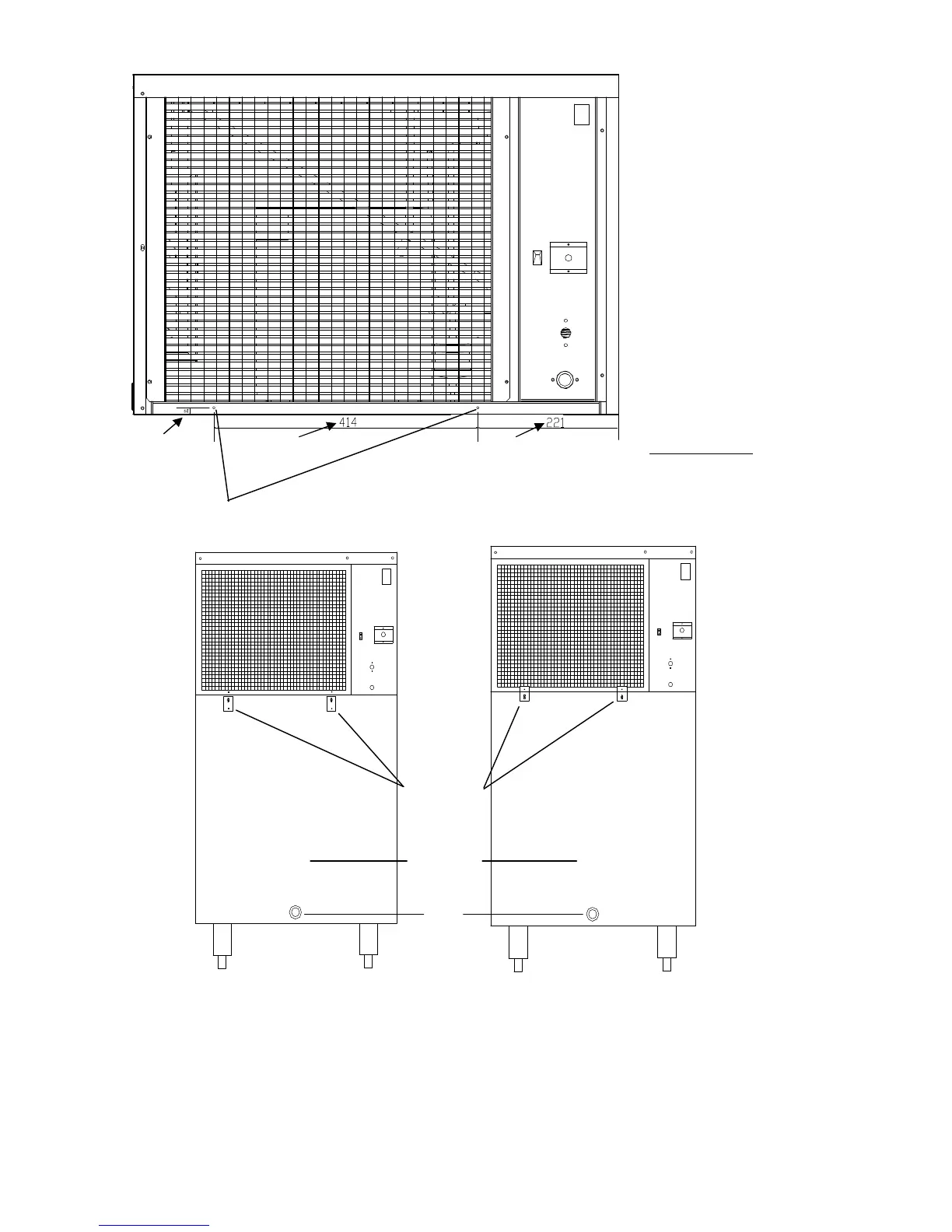

REAR VIEW
The two holes are for attachment to the ice storage bin. See drawings below.
Typical installation of ice storage bin
Two connecting brackets are attached to the upper rear edge of the ice storage bin. Turn
the brackets up (180?) and use two screws to connect the main machine and ice storage
bin.
? To ensure proper ventilation for your ice maker, you need keep the front of the unit
completely unobstructed.
? Choose a well-ventilated area with temperatures above 50ºF (10ºC) and below 100ºF
Connecting
brackets
Rear of ice
storage bin
Drain
7/16”
16.3”
8.7”
