4.5. Wall mounting
Free2Move eSolutions S.p.A. declines any liability for damage to persons
or things that may arise from the use of such tools. We recommend
contacting qualied personnel or service for any question or doubt
concerning easyWallbox installation.
The national and international building regulations and the directives dened by
the International Electrotechnical Commission IEC 60364-1 and IEC 60364-5-52
must be respected when xing easyWallbox to the wall. Correct positioning of
the charging station is important for its operation.
When the installation wall is chosen for easyWallbox, take the distances
of the connection to the power supply and the connector on the vehicle
into consideration as well as the parking and manoeuvring space
available.
If several easyWallboxes are installed close together, there must be at least
20 cm between each one.
easyWallbox must be installed at a height of 1.30-1.40 m from the oor.
Risk of electric shock.
Before starting installation, be sure that the easyWallbox is not
connected to any power supply. Any installation, maintenance and
dismantling operation should only be done when the power supply
is switched o on your service panel.

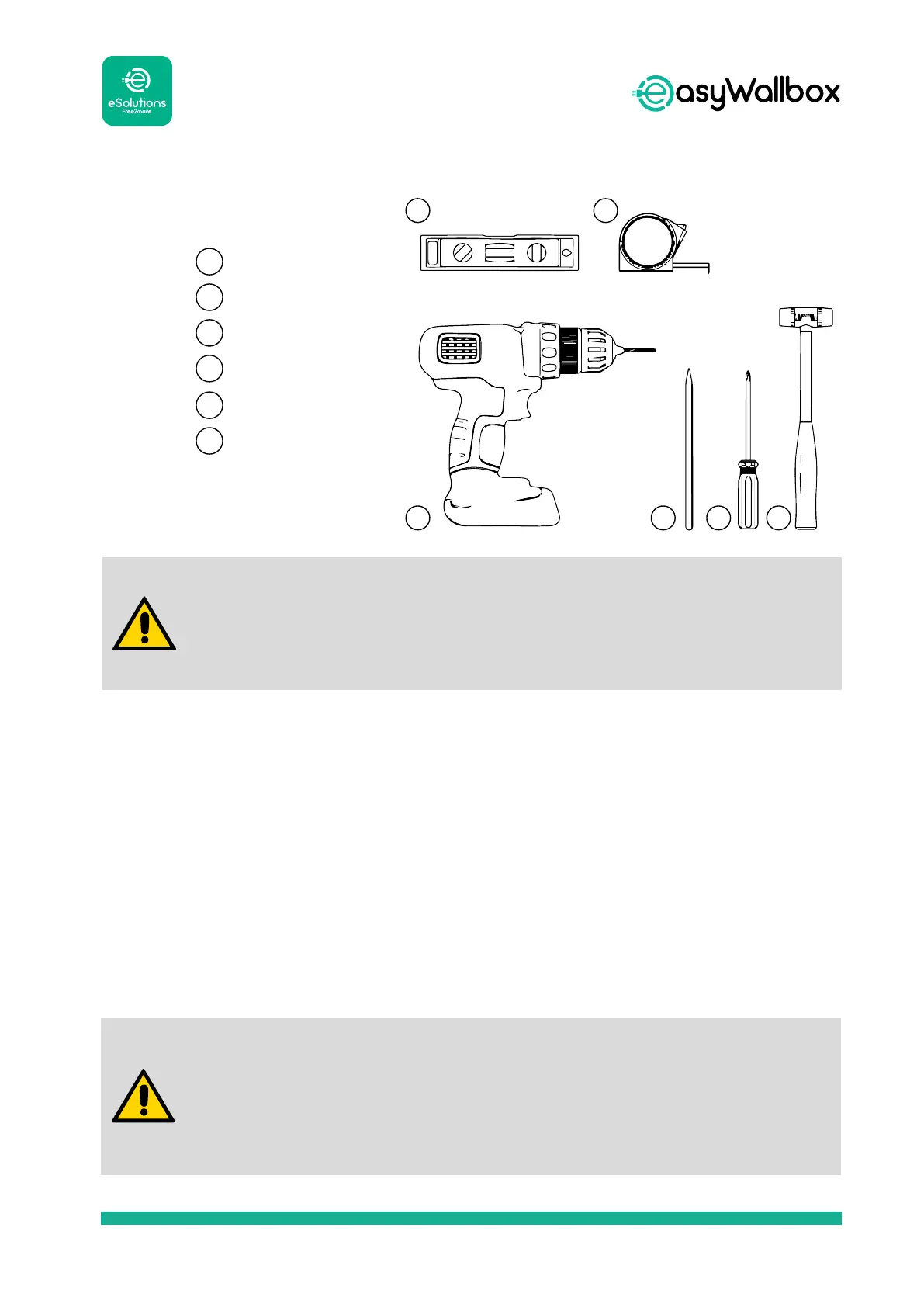

Drill
Pencil
Screwdriver
Hammer
Spirit level
Measure tape
Tools not included
