9

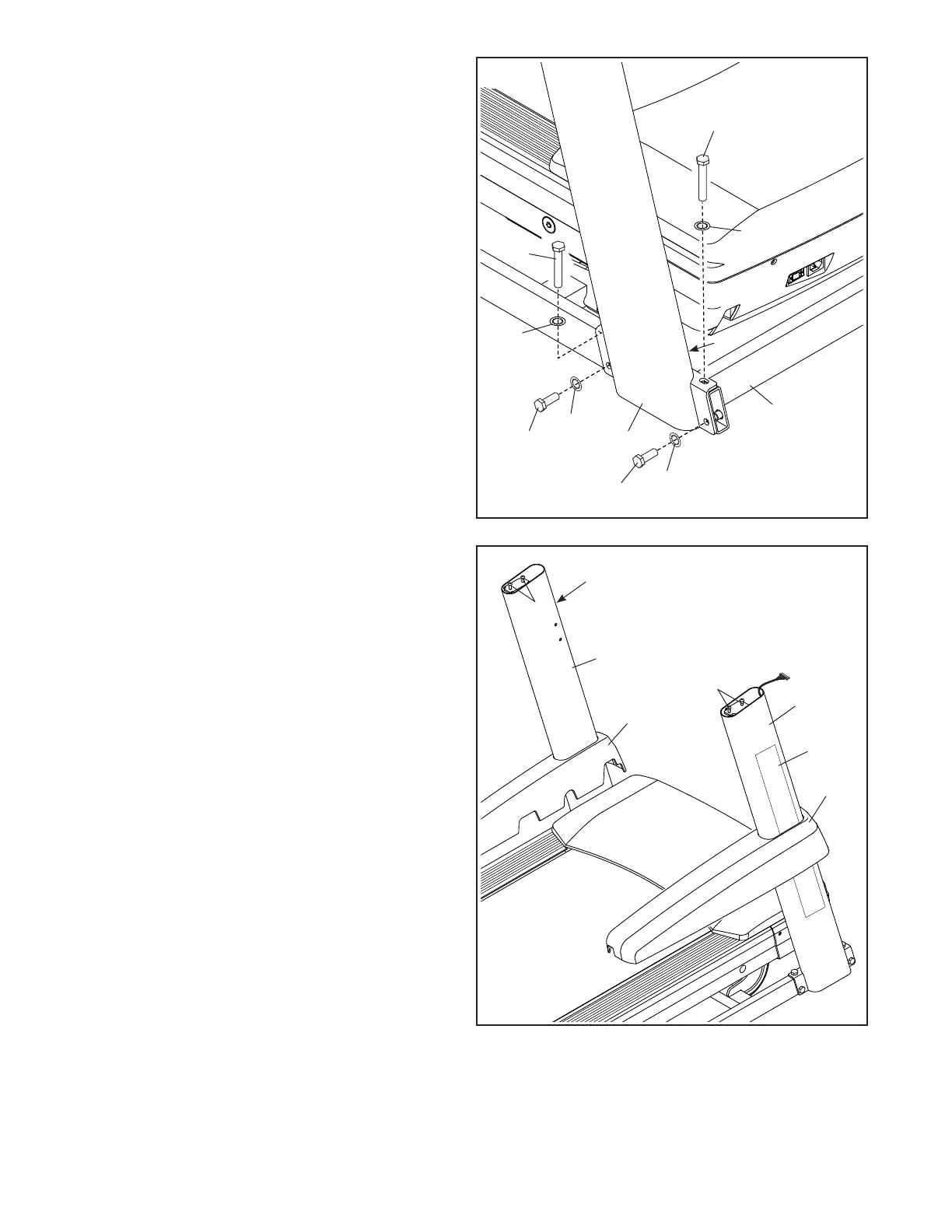

5. Identify the Left and Right Upright Covers
(89, 90).
Slide the Left Upright Cover (89) onto the Left
Upright (91), and slide the Right Upright Cover
(90) onto the Right Upright (84). Then, press the
Upright Covers downward until they snap into
place.
Then, remove and save the four indicated
5/16" x 2" Screws (2).
If there is a film covering the decal on the
Uprights (84, 91), carefully remove the film.
89
90
84
5
2
2
91
Film
Film
4
20
20
79
84
23
83
23
4. Hold the Right Upright (84) against the Base
(79). Make sure not to pinch the Upright Wire
(83).
Attach the Right Upright (84) with two 3/8" x
2 3/4" Screws (23), two 3/8" x 1 1/4" Screws
(20), and four 3/8" Star Washers (25) as shown;
do not fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
25
25
25
25
To Next Page
