Measure real consumption from Kinetis L Series MCUs
in different Low-Power Modes
1. Modify the FRDM-KL25Z hardware
WARNING : Order first a board-board connector hearder 2way, 1row, like Samtec
TSW-102-07-G-S or Molex 0022284023 with the corresponding jumper.

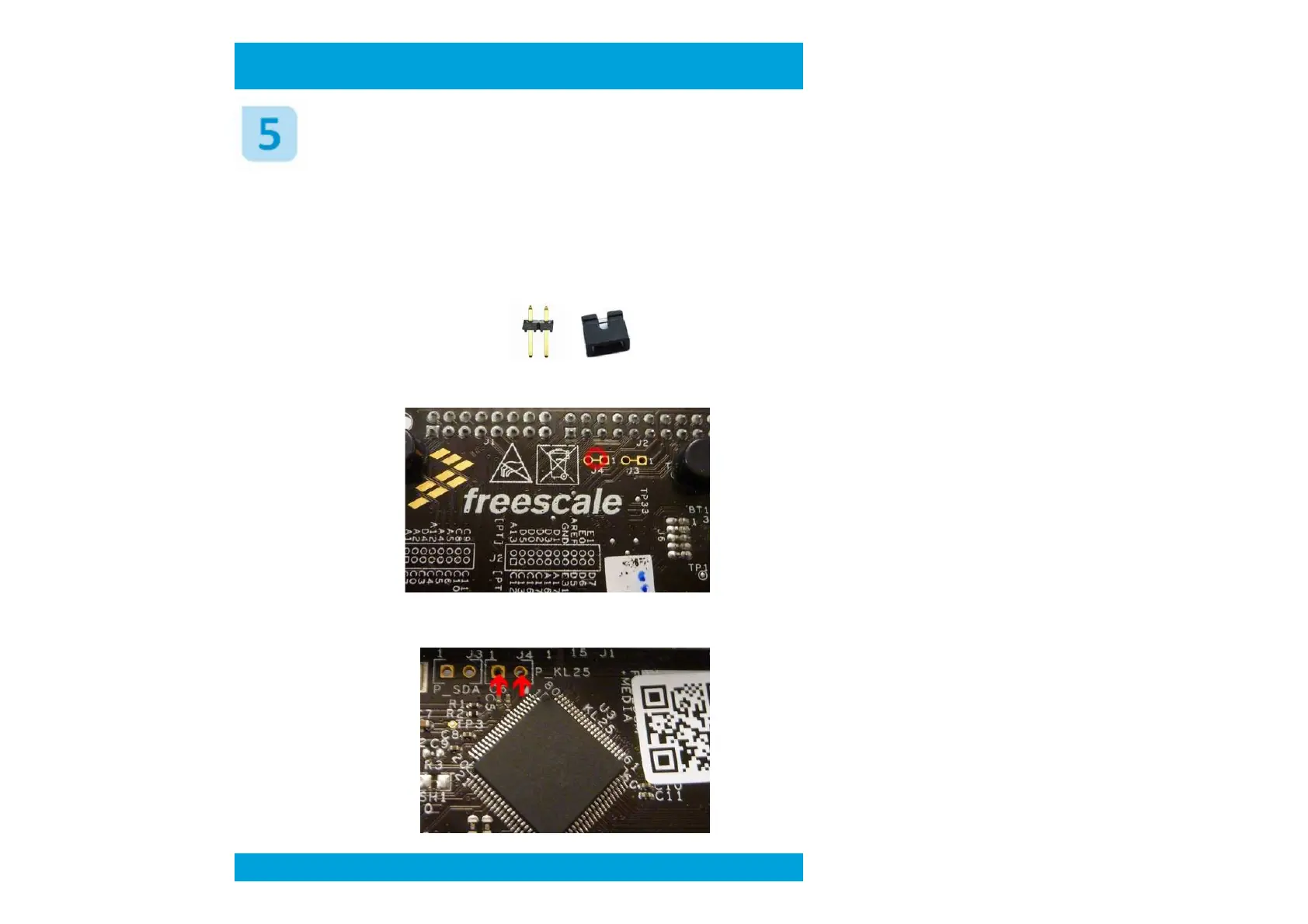

• On the back side of the board, cut the strap between J4 pins
• Then you need to connect a jumper on the top side between two pins J4
