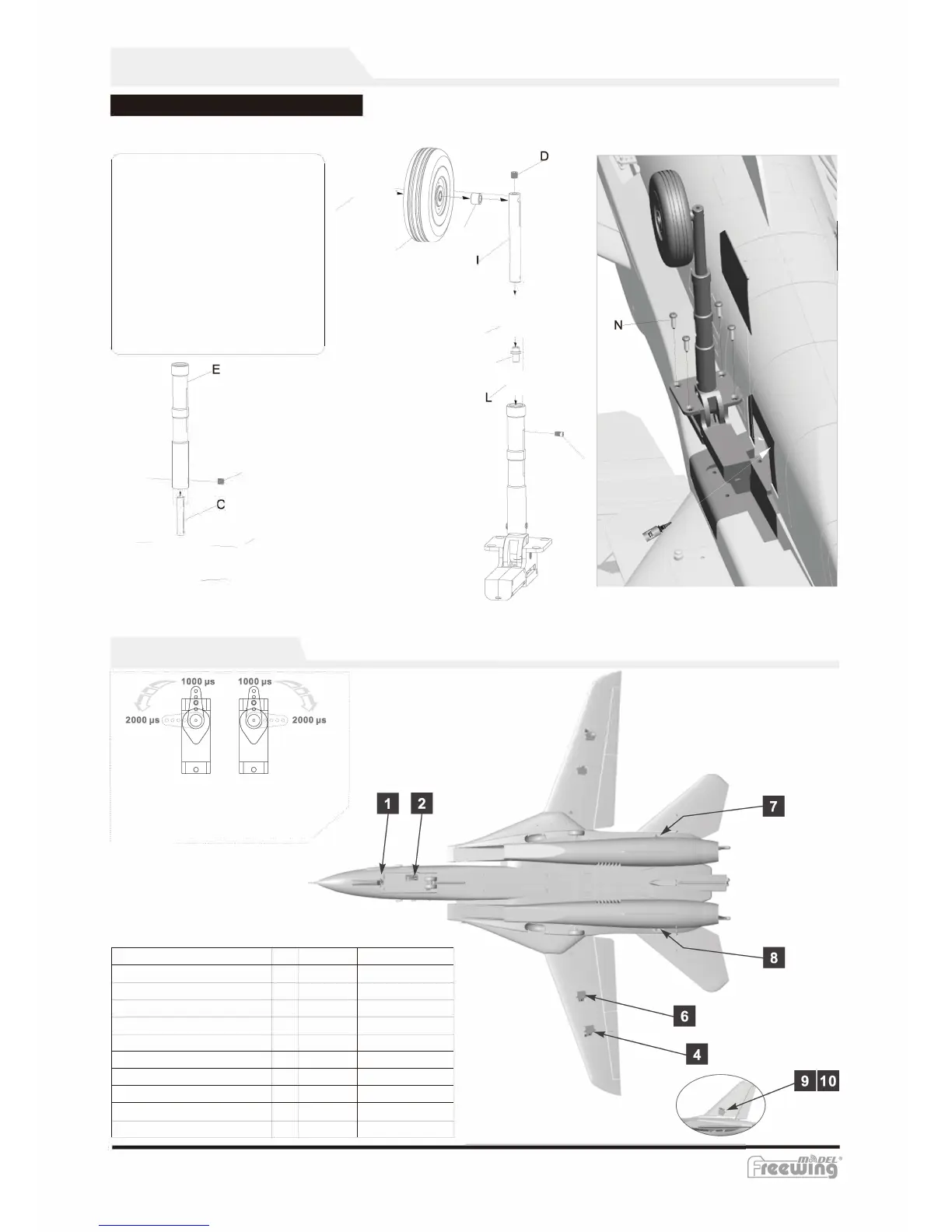

Landing Gear Installation
•
D
s
@
StepO
Servo Introduction
A servo or reversed servo is defined as
follows:
When the servo input signal changes
from 1000ųs to 2000ųs, if the servo arm
rotates clockwise, it's a positive servo.
If it rotates counter clockwise, it's a
reversed servo.
H
J
K
Step 6
Servo Cable
Length
F-14Tomcat
-9-
1
I
I
1;
-
--
-
--
M
Step 8
EN
M
ain
G
ear Assem
bly
Please refer to the following photos to assemble and disassemble the main
landing gear
List of parts and specs.
Front Gear Door 9g MB 1 Positive 850 mm
Nose Gear steering 9g MB 2 Positive 750 mm
Aileron (L) 17g MG 3 Positive 650 mm
Aileron (R) 17g MG 4 Positive 650 mm
Flap (L) 17g MG 5 Positive 500 mm
Flap (R) 17g MG 6 Reverse 500 mm
Elevator (L) 17g MG 7 Positive 650 mm
Elevator (R) 17g MG 8 Reverse 650 mm
Rudder (L) 17g MG 9 Positive 180 mm
Rudder (R) 17g MG 10 Positive 180 mm
