tridge that was originally installed on the dryer. Oil
coalescing cartridges can be used in any applica-
tion, but require more frequent service intervals
(every 1 to 2 years instead of every 2 to 3 years
for a standard cartridge). Do not replace an oil co-
alescing cartridge with a standard cartridge, as
this may result in contamination and malfunction-
ing of downstream air system components.
Refer to
Fig. 5 for cartridge replacement.
1. Drain the air system.
2. Using a strap wrench, turn the desiccant car-
tridge counterclockwise and remove it.
3. Remove and discard the O-ring.
4. Clean the top surface of the dryer base with a
commercial cleaning solvent.
IMPORTANT: If the air dryer base is damaged,
preventing a tight seal, replace the air dryer.
01/10/2011 f422527
B
B
A

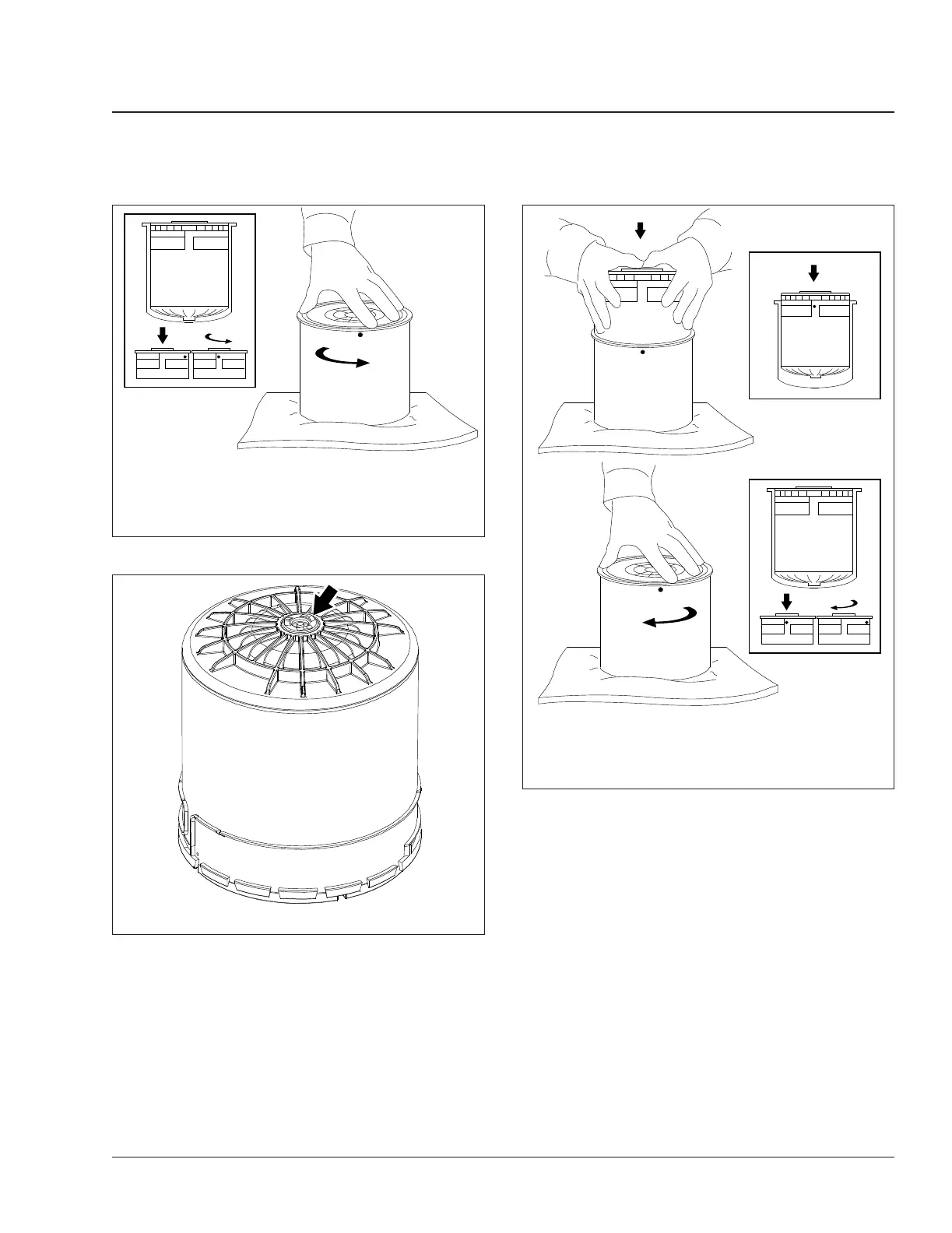

A. Canister/cartridge assembly shown upside-down.
B. Rotate the cartridge counterclockwise 45 degrees to
release it from the canister.
Fig. 2, Releasing the Cartridge
01/07/2011 f422528
Fig. 3, New Cartridge with Rubber Spring
01/10/2011 f422529
B
B
A
A
A
A. Install the new cartridge into the canister.
B. Press the cartridge into the canister and rotate
clockwise 45 degrees to engage the cartridge.
Fig. 4, Cartridge Rotation and Engagement
Brakes 42
Recreational Vehicle Chassis Maintenance Manual, July 2018 42/5
