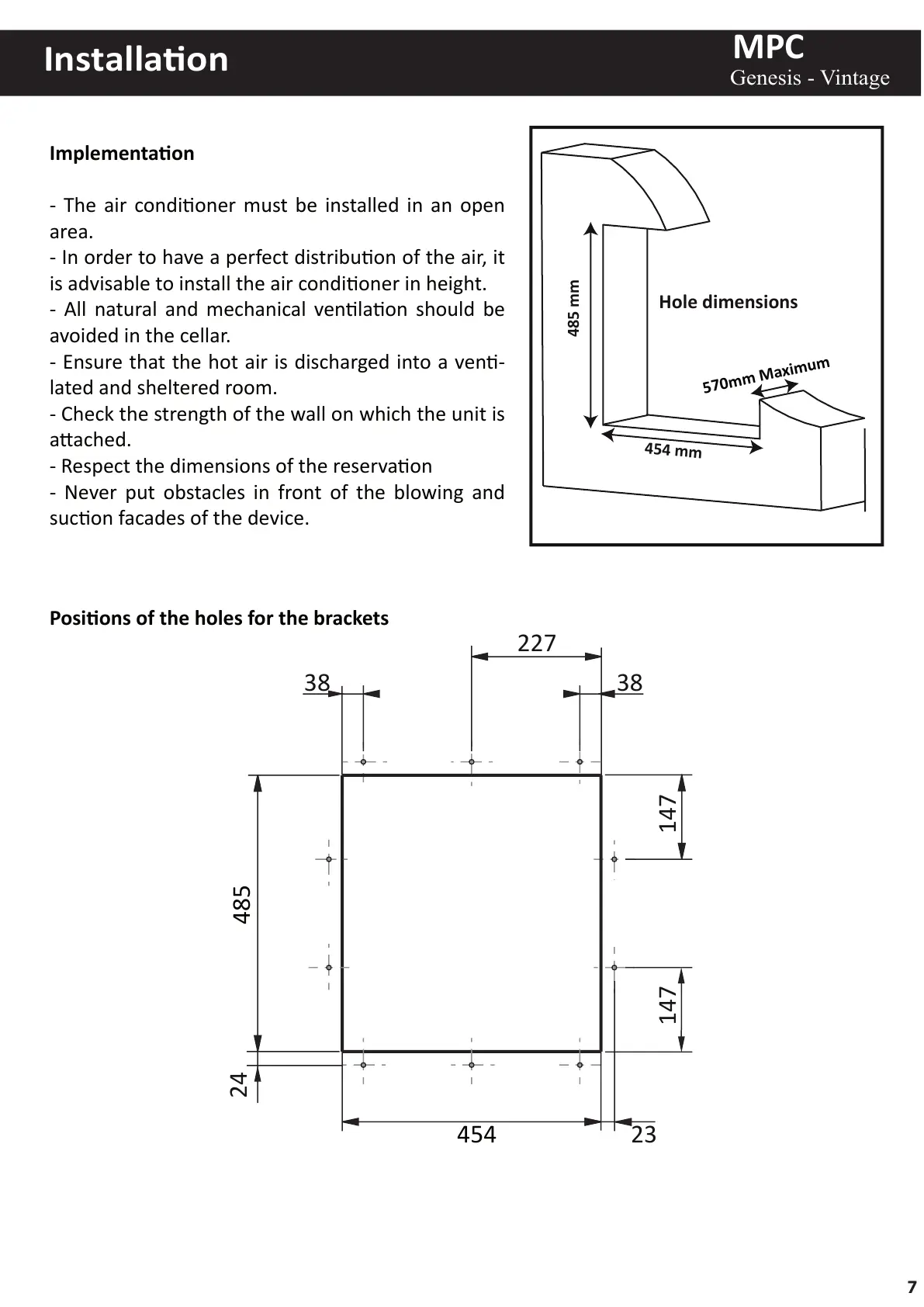

Friax MPC 48 - Installation Guide; General Installation Requirements

MPC
Genesis - Vintage
Installaon
Implementaon
- The air condioner must be installed in an open
area.
- In order to have a perfect distribuon of the air, it
is advisable to install the air condioner in height.
- All natural and mechanical venlaon should be
avoided in the cellar.
- Ensure that the hot air is discharged into a ven-
lated and sheltered room.
- Check the strength of the wall on which the unit is
aached.
- Respect the dimensions of the reservaon
- Never put obstacles in front of the blowing and
sucon facades of the device.
485 mm
454 mm
Hole dimensions
570mm Maximum
38
38
227
485
147
24
23
454
147
Posions of the holes for the brackets
7
