Friax MPC 48 - Installation Guide (continued)

MPC
Genesis - Vintage
Installaon

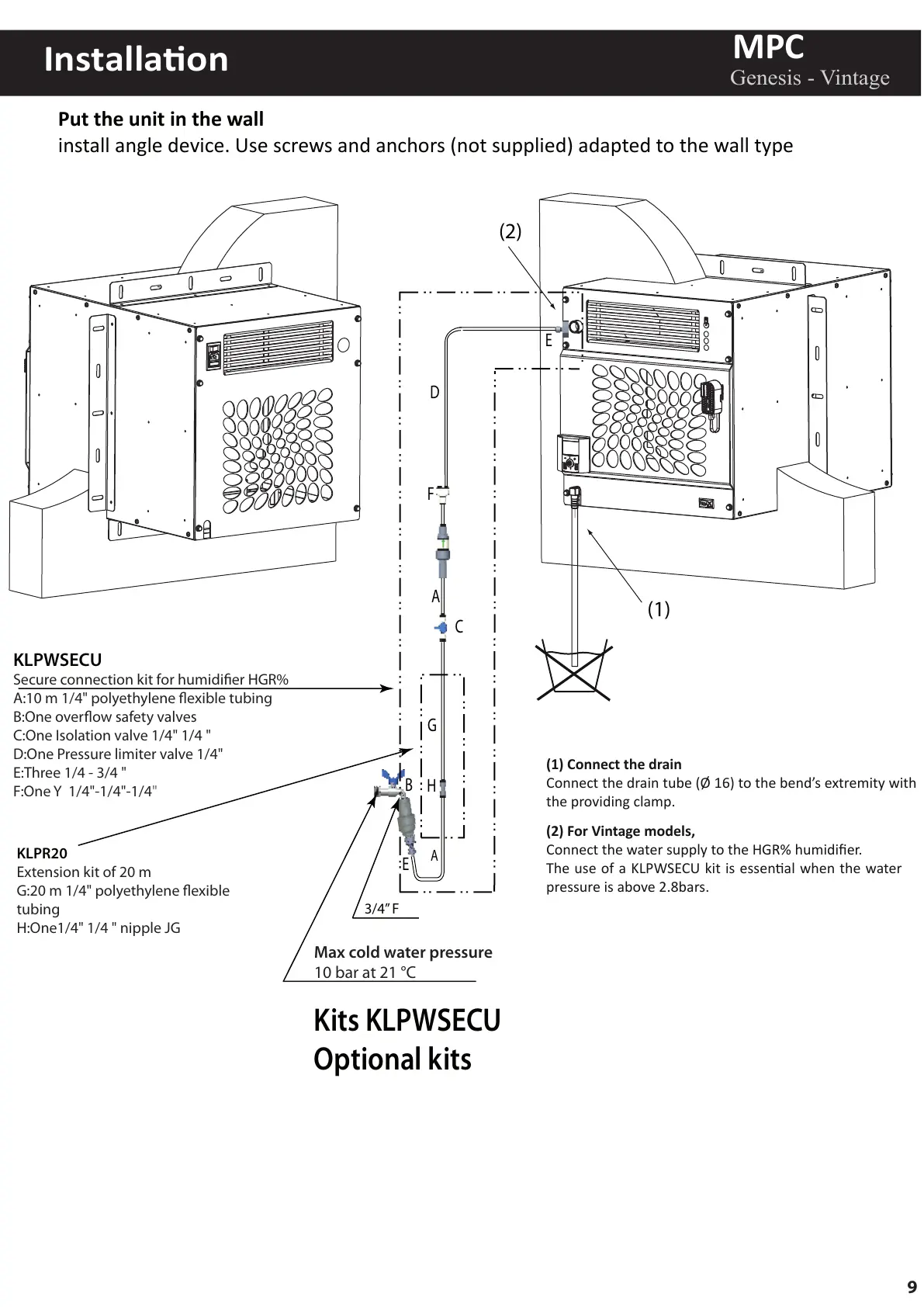

Put the unit in the wall
install angle device. Use screws and anchors (not supplied) adapted to the wall type
(1) Connect the drain
Connect the drain tube (Ø 16) to the bend’s extremity with
the providing clamp.
(2) For Vintage models,
Connect the water supply to the HGR% humidifier.
The use of a KLPWSECU kit is essenal when the water
pressure is above 2.8bars.
9
(1)
(2)
Outside the Cellar
Inside the Cellar
A
B
C
D
E
E
F
G
H
A
Kits KLPWSECU
Optional kits
3/4” F
KLPWSECU
Secure connection kit for humidier HGR%
A:10 m 1/4" polyethylene exible tubing
B:One overow safety valves
C:One Isolation valve 1/4" 1/4 "
D:One Pressure limiter valve 1/4"
E:Three 1/4 - 3/4 "
F:One Y 1/4"-1/4"-1/4"
KLPR20
Extension kit of 20 m
G:20 m 1/4" polyethylene exible
tubing
H:One1/4" 1/4 " nipple JG
Max cold water pressure
10 bar at 21 °C
Inside the cellar
Outside the cellar
