FRIDEN STW - Page 20

Page
20
FRIDEN
CALCULATING
MACHINE
CO.,
INC,
S-1s-50,
MODEL STW
SIDE FRAME

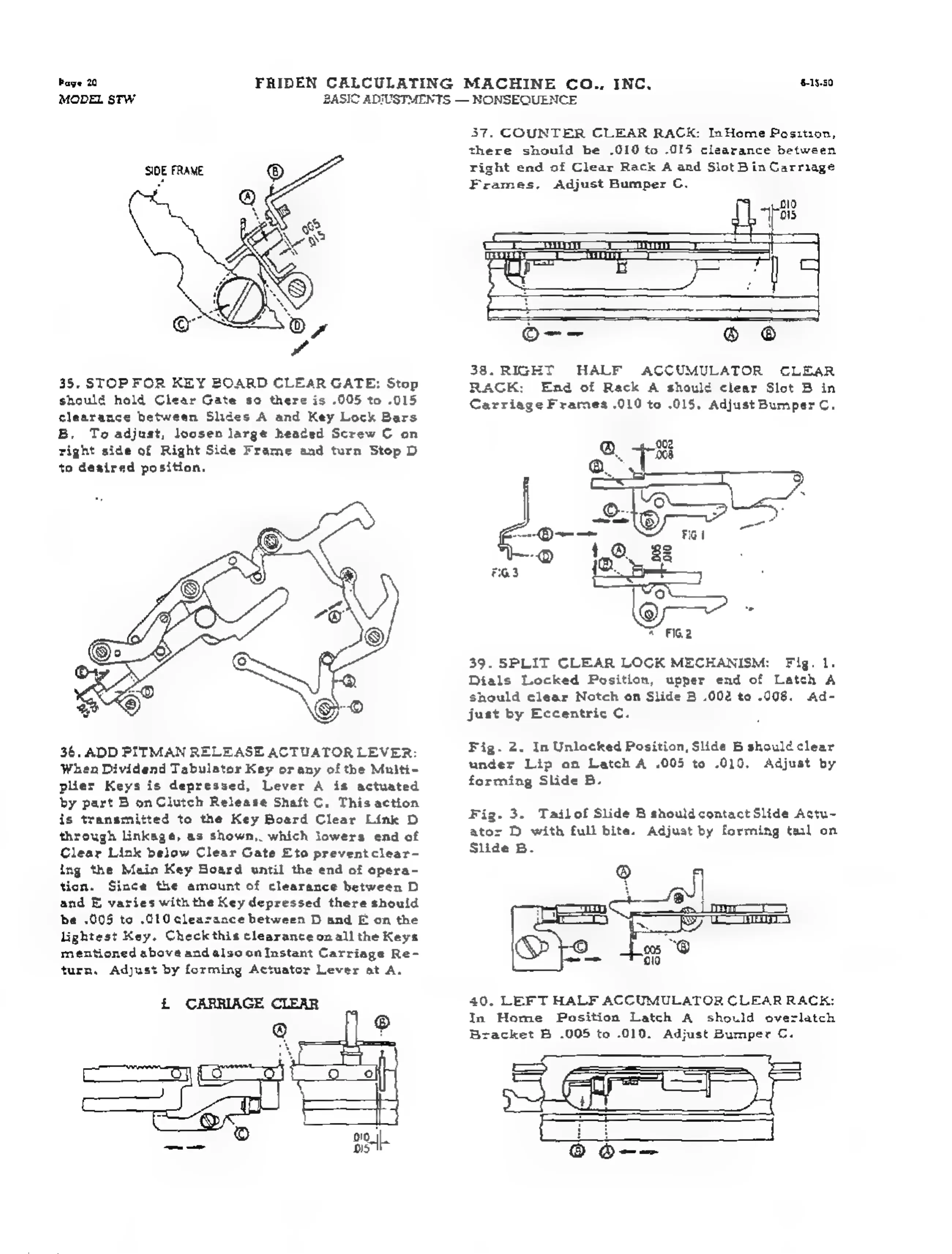

35. STOP FOR KEY BOARD CLEAR GATE: Stop
shoulé hold Clear Gate so there is .005 to .015
clearance between Slides A and Key Lock Bars
B, To adjust, loosen large headed Screw C an
right side of Right Side Frame and turn Stop D
to desired position.
36. ADD PITMAN RELEASE ACTUATOR LEVER:
When Dividend Tabulator Key orany of the Multi-
plier Keys is depressed, Lever A is actuated
by part B on Clutch Release Shaft C. This action
is transmitted to the Key Board Clear Link D
through linkage, as shown, which lowers end of
Clear Link below Clear Gate Eto preventclear-
ing the Main Key Board until the end of apera-
tion. Since the amount of clearance between D
and E varies withthe Key depressed there should
be .005 to .010 clearance between D and E on the
lightest Key. Check this clearance onall the Keys
mentioned above and also on Instant Carriage Re-
turn, Adjust by forming Actuator Lever at A.
BASIC ADIUSTMENTS — NONSEQUENCE
37. COUNTER CLEAR RACK: InHeme Position,
there should be .010 to 015 clearance between
right end of Clear Rack A and SlotBin Carriage
Frames. Adjust Bumper C.
fp lll
a 01S
oc
38. RIGHT HALF ACCUMULATOR CLEAR
RAGK: End of Rack A should clear Slot B in
Carriage Frames .010 to .015, Adjust Bumper C.
* FR2
39. SPLIT CLEAR LOCK MECHANISM: Fig. 1.
Dials
Locked
Position,
upper
end
of
Latch
A
should clear Notch on Slide B .002 te .008. Ad-
just by Eccentric C.
Fig. 2. In Unlocked Position, Slide B should clear
under
Lip
an
Latch
A
.005
to
.010.
Adjust
by
forming Slide B.
Fig. 3. Tailof Slide B should contact Slide Actu~
ator D with full bite. Adjust by forming tail on
Slide B.
40, LEFT HALF ACCUMULATOR CLEAR RACK:
In Home Position Latch A should overlatch
Bracket
B
.005
to
.010.
Adjust
Bumper
C.
