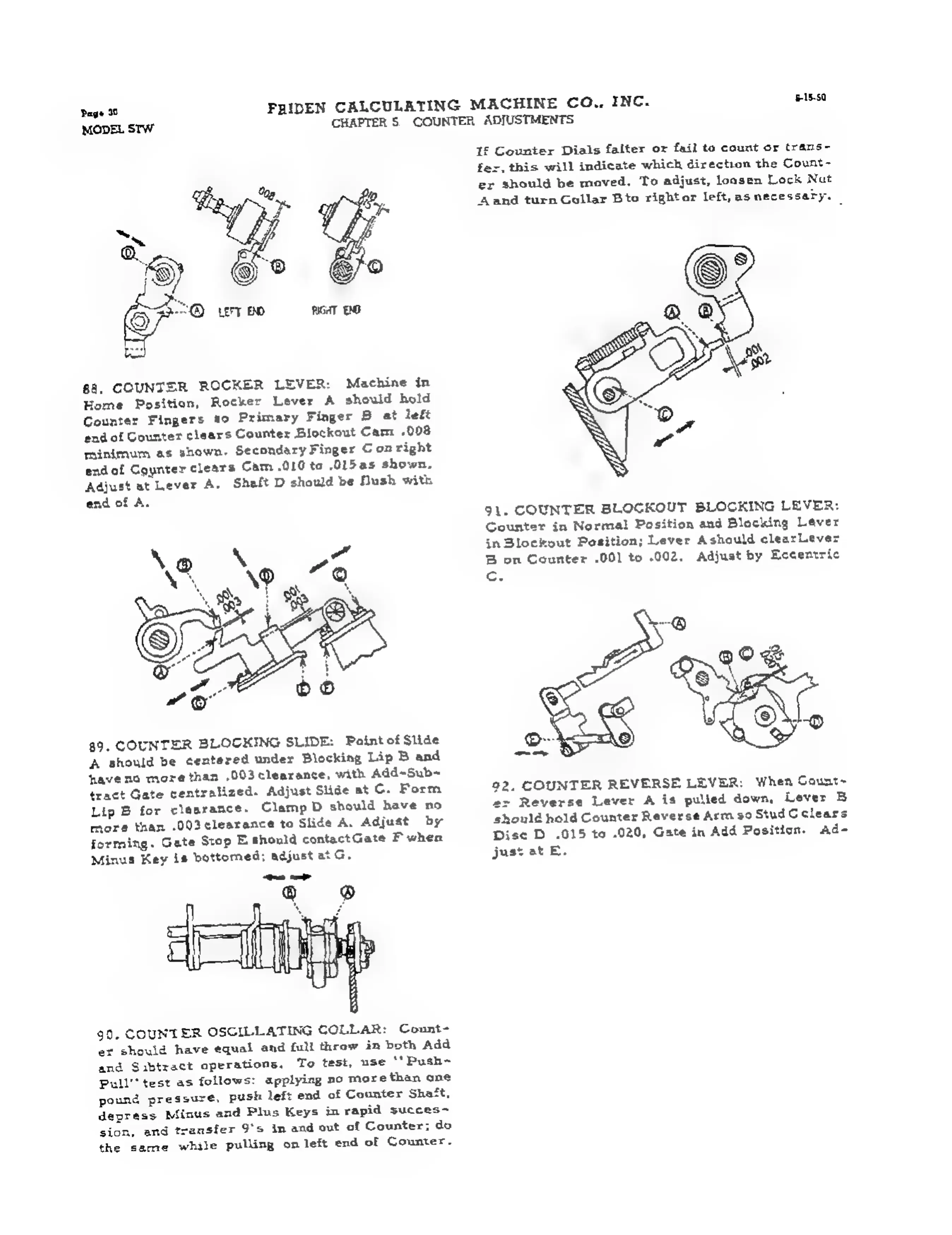

FRIDEN STW - Page 30

Page
30
FPRIDEN
CALCULATING
MACHINE
co,,
INC.
e150
MODEL
STW
$o-"@
rt
Bo
AIGAT
ENO
88.
COUNTER
ROCKER
LEVER:
Machine
in
Home
Position,
Rocker
Lever
A
should
hold
Counter
Fingers
so
Primary
Finger
8
at
lege
end
of
Counter
clears
Counter
Blockout
Cam
.008
minimum
as
shown.
Secondary
Finger
C
on
right
endof
Goynter
clears
Cam
.010
ta
.0l5as
shown.
Adjust
at
Lever
A.
Shaft
D
should
be
flush
with
end
of
A.
89.
COUNTER
BLOCKING
SLIDE:
Point
of
Slide
A
should
be
centered
under
Blocking
Lip
B
and
havens
more
than
003
clearance,
with
Add~Sub~
tract
Gate
centralized.
Adjust
Slide
at
C.
Form
Lip
B
for
clearance.
Glamp
D
should
have
no
more
than
.003
clearance
to
Slide
A.
Adjust
by
forming.
Gate
Stop
E
should
contactGate
F
when
Minus
Key
is
bottomed;
adjust
at
G.
90.
COUNTER
OSCILLATING
COLLAR:
Count-
er
should
have
equal
and
full
throw
in
both
Add
and
Subtract
operations.
To
test,
use
‘““Bush~
Pull"
test
as
follows:
applying
no
more
than
one
pound
pressure,
push
left
end
of
Counter
Ska‘t,
depress
Minus
and
Plus
Keys
in
rapid
succes~
sion,
and
transfer
9's
in
and
out
of
Counter;
do
the
same
while
pulling
on
left
end
of
Counter.
CHAPTER
S.
COUNTER
ADJUSTMENTS
1f
Counter
Dials
falter
or
fail
to
count
or
trans-
fer,
this
will
indicate
which
direction
the
Count-
er
should
be
moved.
To
adjust,
loasen
Lock
Nut
‘Aand
turn
Collar
Bto
rightor
left,
as
necessary.
91.
COUNTER
BLOCKOUT
BLOCKING
LEVER:
Counter
in
Norma!
Position
and
Blocking
Lever
in
Blockout
Position;
Lever
Ashould
clearLever
Boon
Counter
.001
to
002.
Adjust
by
Eccentric
c.
92,
COUNTER
REVERSE
LEVER:
When
Gount~
2:
Reverse
Lever
A
is
pulled
down,
Lever
B
should
hold
Counter
Reverse
Arm
so
Stud
C
clears
Dise
D
.615
to
.020,
Gate
in
Add
Position.
ad-
just
at
BE.
