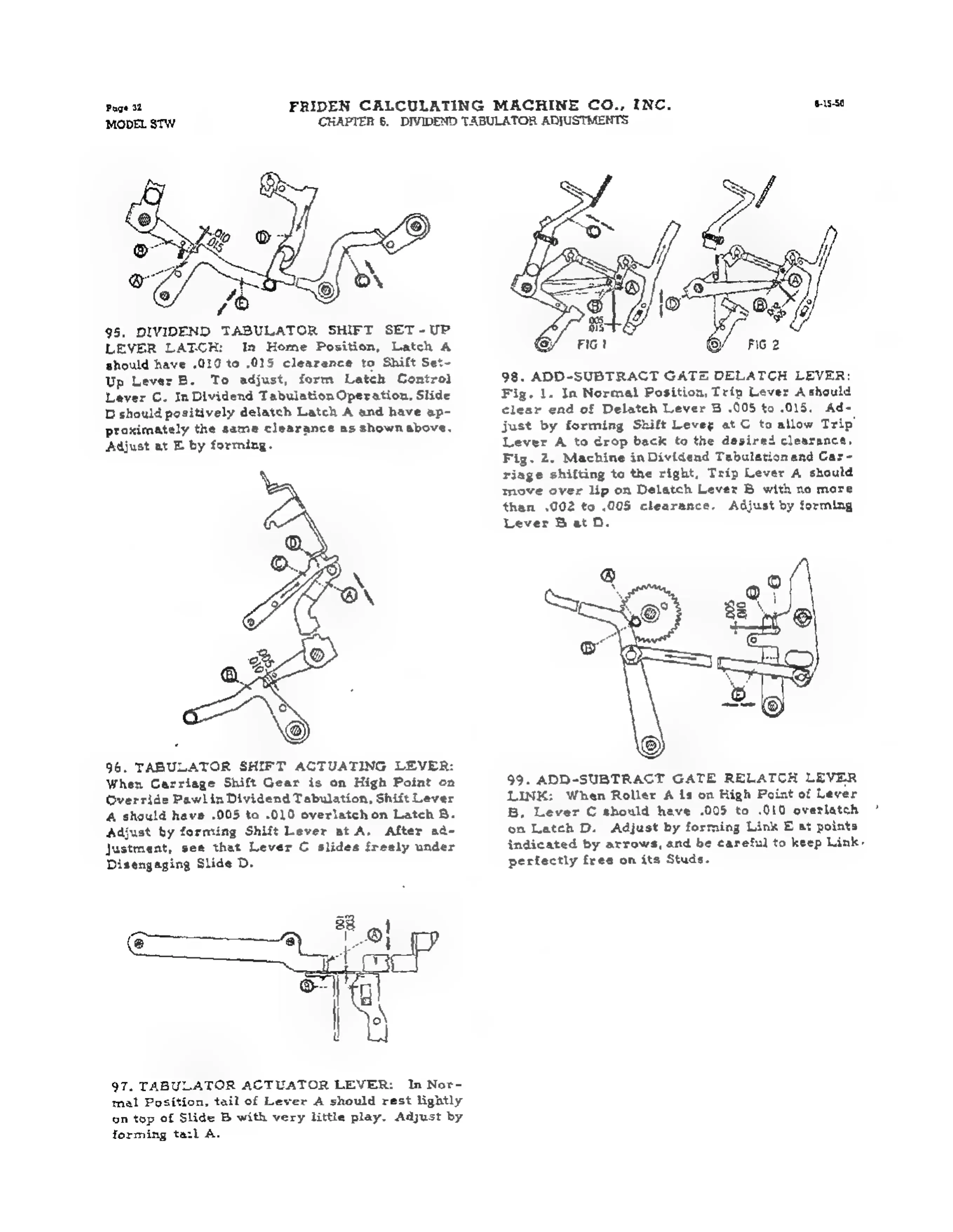

FRIDEN STW - Page 32

Page
32
FRIDEN
CALCULATING
MACHINE
CO., INC.
615-50
MODEL STW
95.
DIVIDEND
TABULATOR
SHIFT
SET-UP
LEVER
LATCH:
In
Home
Position,
Latch
A
should
have
.010
to
.015
clearance
to
Shift
Set-
Up
Lever
B.
To
adjust,
form
Latch
Contro}
Lever
C.
In
Dividend
Tabulation
Operation,
Slide
D
should
positively
delatch
Latch
A
and
have
ap-
proximately
the
same
clearance
as
shown
above.
Adjust
at
E
by
forming.
96.
TABULATOR
SHIFT
ACTUATING
LEVER:
When
Carriage
Shift
Gear
is
an
High
Point
cn
Override
Pawlin
Dividend
Tabulation,
Shift
Lever
A
should
have
.005
to
.010
overlatchon
Latch
B.
Adjust
by
forming
Shift
Lever
at
A.
After
ad-
justment,
see
that
Lever
C
slides
freely
under
Disengaging
Slide
D.
97.
TABULATOR
ACTUATOR
LEVER:
In
Nor-
mal
Position,
tail
of
Lever
A
should
rest
lightly
on
top
of
Slide
B
with
very
little
play.
Adjust
by
forming
tail
A.
CHAPTER
§.
DIVIDEND
TABULATOR
ADJUSTMENTS
98.
ADD-SUBTRAGCT
GAT=
DELATCH
LEVER:
Fig.
1.
In
Normal
Position,
Trip
Lever
Ashould
Clear
end
of
Delatch
Lever
B
.005
to
.015.
Ad-
just
by
forming
Shift
Leveg
at
C
to
allow
Trip’
Lever
A
to
drop
back
to
the
desired
clearance,
Fig.
2.
Machine
in
Dividend
Tabulationand
Car-
riage
shifting
to
the
right,
Trip
Lever
A
should
move
over
lip
on
Delatch
Lever
B
with
no
more
than
.002
to
.005
clearance.
Adjust
by
forming
Lever
Bat
D.
99.
ADD-SUBTRACT
GATE
RELATCH
LEVER
LINK:
When
Roller
A
is
on
High
Point
of
Lever
B,
Lever
C
should
have
.005
to
.010
overlatch
on
Latch
D.
Adjust
by
forming
Link
E
at
points
indicated
by
arrows,
and
be
careful
to
keep
Link-
pertectly
free
on
its
Studs.
