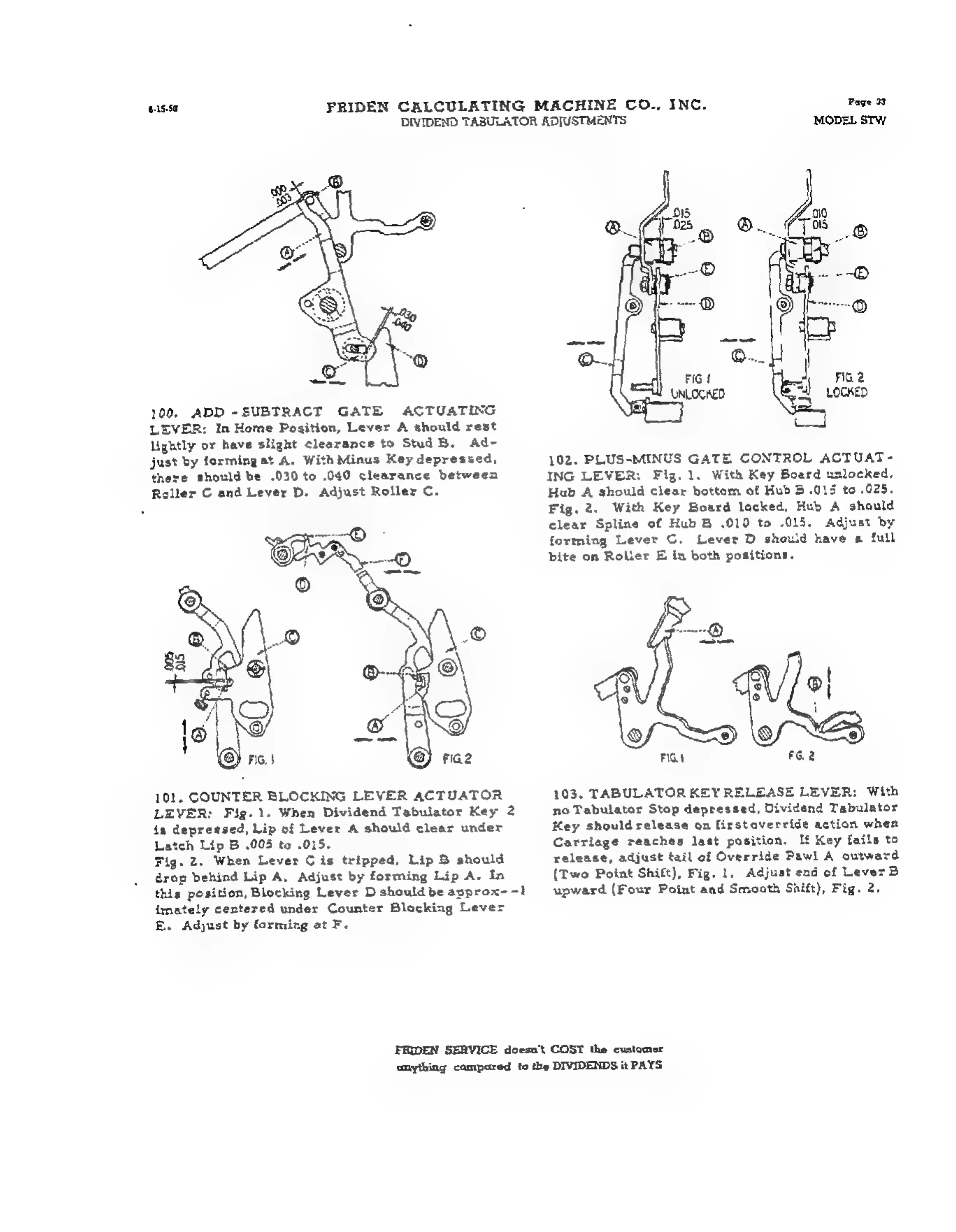

FRIDEN STW - Page 33

e1s.sr
FRIDEN
CALCULATING
MACHINE
CO.,
INC.
DIVIDEND
TABULATOR
ADJUSTMENTS
200.
ADD
-SUBTRACT
GATE
ACTUATING
LEVER:
In
Home
Position,
Lever
A
should
rest
lightly
or
have
slight
clearance
to
Stud
B..
Ad-
just
by
forming
at
A.
With
Minus
Key
depressed,
there
should
be
.030
to
.040
clearance
between
Roller
C
and
Lever
D.
Adjust
Roller
C.
101.
COUNTER
BLOCKING
LEVER
ACTUATOR
LEVER:
Fig.
1.
When
Dividend
Tabulator
Key
2
is
depressed,
Lip
of
Lever
&
should
clear
under
Latch
Lip
B
.005
to
.015.
Fig.
2.
When
Lever
C
is
tripped,
Lip
B
should
grop
behind
Lip
A,
Adjust
by
forming
Lip
A.
In
this
position,
Blocking
Lever
D
should
be
avprox--1
imately
centered
under
Counter
Blocking
Lever
EB.
Adjust
by
forming
at
F.
Page 33
MODEL STW
102.
PLUS-MINUS
GATE
CONTROL
ACTUAT-
ING
LEVER:
Fig.
1.
With
Key
Board
unlocked,
Hub
A
should
clear
bottom
of
Hub
3.015
to
.025.
Fig.
2.
With
Key
Board
locked,
Hub
A
should
clear
Spline
of
Hub
B
.010
to
.015.
Adjust
by
forming
Lever
CG.
Lever
D
should
have
a
full
bite
on
Rolier
E
in
both
positions.
FIG
103,
TABULATOR
KEY
RELEASE
LEVER:
With
no
Tabulator
Stop
depressed,
Dividend
Tabulator
Key
should
release
on
firstoverride
action
when
Carriage
reaches
last
position.
If
Key
fails
to
release,
adjust
tail
of
Override
Pawl
A
outward
(Two
Point
Shift),
Fig.
1,
Adjust
end
of
Lever
B
upward
(Four
Point
and
Smooth
Shift),
Fig.
2.
FRIDEN
SERVICE
doesn't
COST
the
customer
anything
campored
to
the
DIVIDENDS
it
PAYS
