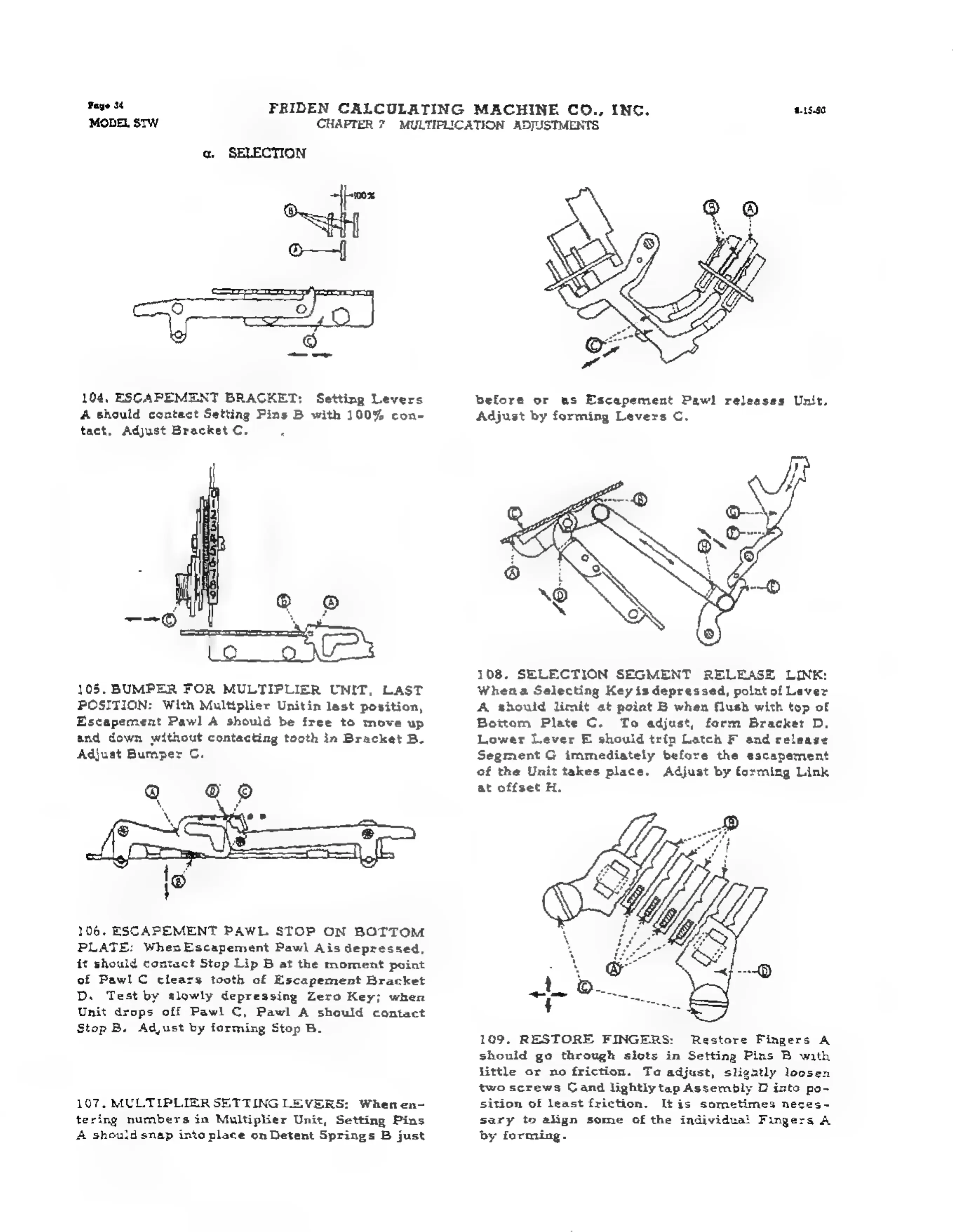

FRIDEN STW - Page 34

Faye
3¢
FRIDEN
CALCULATING
MACHINE
CO.,
ING.
£18.60
‘MODEL STW
a. SELECTION
rox
104, ESCAPEMENT BRACKET: Setting Levers
A should contact Setting Pins B with 100% con-
tact. Adjust Bracket C. a
CHAPTER
7.
MULTIPLICATION
ADJUSTMENTS
before or as Escapement Paw) releases Unit.
Adjust by forming Levers C.
105. BUMPER FOR MULTIPLIER UNIT, LAST
POSITION: With Multiplier Unitin last position,
Escapement Pawl A should be free to move up
and down without contacting tooth in Bracket B.
Adjust Bumper C.
q @
106. ESCAPEMENT PAWL STOP ON BOTTOM
PLATE: WhenEscapement Pawl Ais depressed,
it should contact Stop Lip B at the moment point
of Pawl C clears touth of Escapement Bracket
D. Test by slowly depressing Zero Key; when
Unit drops off Paw! C, Pawl A should contact
Stop B. Adjust by forming Stop B.
107, MULTIPLIER SETTING LEVERS: Whenen-
tering numbers in Multiplier Unit, Setting Pins
A should snap into place on Detent Springs B just
108, SELECTION SEGMENT RELEASE LINK:
Whena Selecting Key is depressed, point of Lever
A should limit et point B when flush with top of
Bottom Plate C. To adjust, form Bracket D.
Lower Lever E should trip Latch F and release
Segment G immediately before the escapement
of the Unit takes place. Adjust by forming Link
at offset H.
109, RESTORE FINGERS: Restore Fingers A
should go through slots in Setting Pins B with
little
or
no
friction.
To
adjust,
slightly
loosen
two screws Cand lightly tap Assembly D inte po~
sition of least friction. Itis sometimes neces~
sary to align some of the individual Fingers A
by forming.
