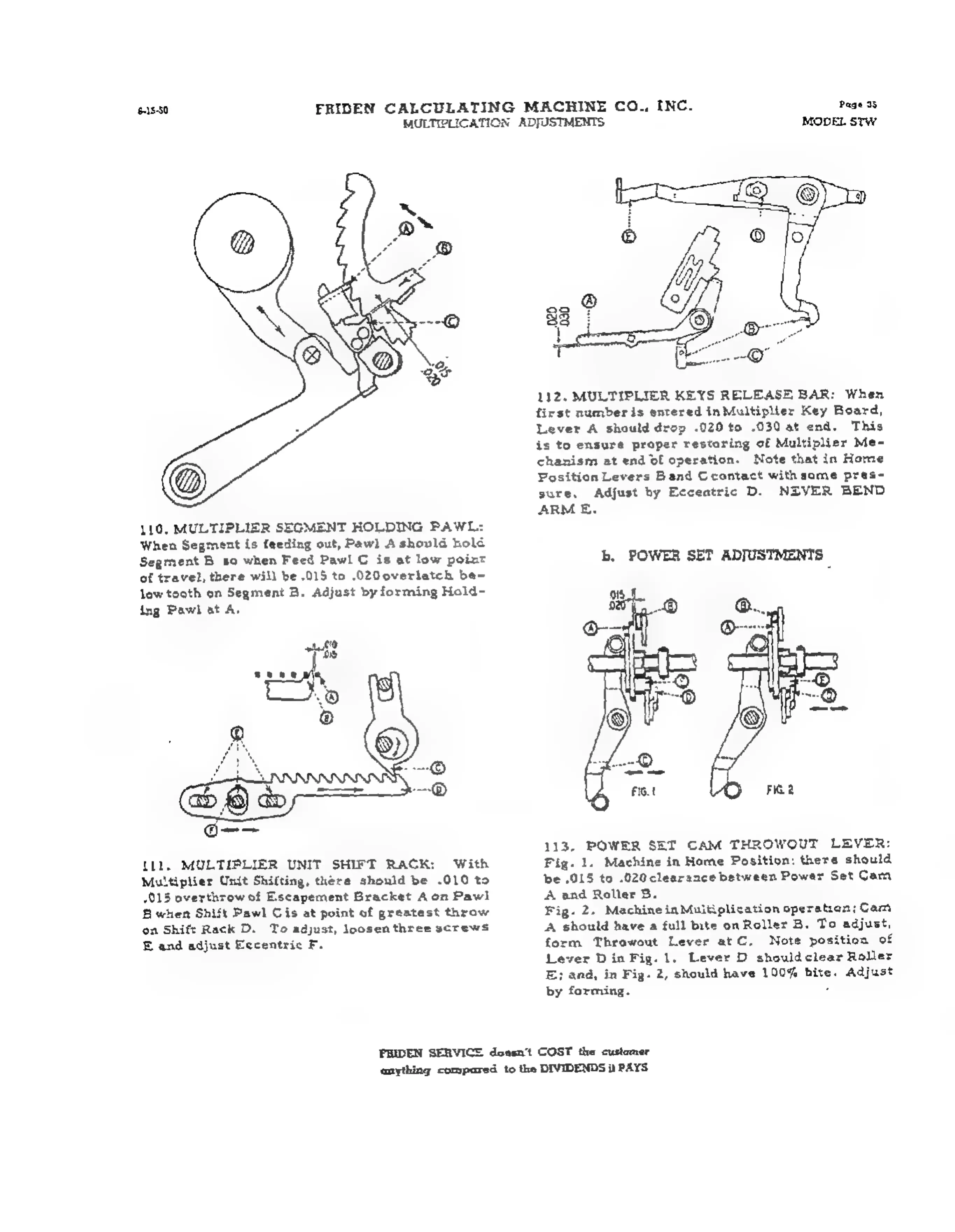

FRIDEN STW - Page 35

618-50
FRIDEN
CALCULATING
MACHINE
CG.,
INC.
Page
33
MULTIPLICATION
ADJUSTMENTS
116,
MULTIPLIER
SEGMENT
HOLDING
PAWL:
When
Segment
is
feeding
out,
Paw)
A
should
hold
Segment
B
so
when
Feed
Pawl
©
is
at
low
point
of
travel,
there
will
be
.015
to
.020overlatch
be-
lew
tooth
on
Segment
B.
Adjust
by
forming
Hold-
ing
Pawl
at
A.
{ll.
MULTIPLIER
UNIT
SHIFT
RACK:
With
Multiplier
Unit
Shifting,
thére
should
be
.010
to
.015
overthrow
of
Escapement
Bracket
Aon
Pawl
Bwhen
Shift
Pawl
Gis
at
point
of
greatest
throw
on
Shift
Rack
D.
To
adjust,
loosen
three
screws
&
and
adjust
Eccentric
F.
MODEL STW
112.
MULTIPLIER
KEYS
RELEASE
BAR:
When
first
number
is
entered
in
Multiplier
Key
Board,
Lever
A
should
drop
.020
to
.030
at
end.
This
is
to
ensure
proper
restoring
of
Multiplier
Me-
chanism
at
end
of
operation.
Note
that
in
Home
Position
Levers
Band
Ccontact
with
some
pres-
sure,
Adjust
hy
Eccentric
D.
NEVER
BEND
ARM
E.
b, POWER SET ADJUSTMENTS
113.
POWER
SET
CAM
THROWOUT
LEVER:
Fig.
1.
Machine
in
Home
Position:
there
should
be
O15
to
.020
clearance
between
Powar
Set
Cam
A
and
Roller
3.
Fig.
2.
Machine
inMuitiplication
operation;
Cam
A
should
have
a
full
bite
on
Roller
B.
To
adjust,
form
Thrawout
Lever
at
C.
Note
position
of
Lever
D
in
Fig.
1.
Lever
D
shouldclear
Roller
E;
and,
in
Fig.
2,
should
have
100%
bite.
Adjust
by
forming.
:
FRIDEN
SERVICE
doasn’t
COST
the
customer
anything
compared
to
the
DIVIDENDS
ii
PAYS
