This document is an installation and operation manual for a Friedrich Room Air Conditioner, specifically the Chill series, models CP06 and CP08, operating at 115 Volts. It provides comprehensive instructions for safe and efficient use, installation, and maintenance of the unit.

The Friedrich Room Air Conditioner is designed to provide maximum comfort and quietness. It functions as a cooling unit, offering various operational modes to suit different user needs and environmental conditions.

Function Description

The air conditioner operates by drawing in room air, cooling it, and then discharging the cooled air back into the room. It features a thermostat that monitors room temperature and maintains the desired setting, which can be adjusted between 60°F and 86°F (16°C and 30°C).

Key operational modes include:

Cooling Mode: For cooling the room to a set temperature.
Money Saver® Mode: An energy-saving operation mode.
Fan Mode: For basic ventilating fan operation without cooling.
Dry Mode: For dehumidification, reducing humidity in the room.

The unit also incorporates a fan speed selector with three settings: Low, Medium, and High, allowing users to adjust the airflow intensity for increased power while cooling. An Auto Swing feature automatically controls the air flow direction, ensuring even distribution of cooled air throughout the room.

For convenience, the air conditioner includes an ON/OFF Timer function. When the unit is off, the timer can be set to start the unit after a specified number of hours (1-24 hours). When the unit is running, the timer can be set to shut off the unit after a specified duration. For sleeping comfort, the temperature setting will automatically rise 2°F after 30 minutes, and again after another 30 minutes, when the timer is set.

The unit's design includes a vent control that can be closed for maximum cooling efficiency by allowing internal air circulation, or opened to discharge stale air. Airflow direction can be further customized by adjusting both horizontal and vertical louvers, allowing users to direct the air left, right, up, or down.

Usage Features

Before operating the unit, it is crucial to ensure adequate wiring and a compatible wall receptacle. The manual explicitly states not to use an extension cord and emphasizes the importance of proper grounding. The power cord may include a current interrupter device with test and reset buttons, which should be tested periodically for safety.

The unit is controlled via a control panel on the unit itself and a remote control. The remote control requires two AAA 1.5V batteries, and instructions for insertion are provided, along with warnings not to use rechargeable batteries and to remove batteries if the unit will not be used for an extended period. The remote control sensor on the unit should not be exposed to direct sunlight for optimal operation.

For optimal cooling performance and energy efficiency, users are advised to keep the air filter clean, ensure good airflow around the unit (both inside and outside), and consider unit placement in shaded areas. Using drapes or blinds on sunny sides of a dwelling can also enhance efficiency. Good insulation, including weather stripping on doors and and caulking around doors and windows, is also recommended.

Maintenance Features

Regular maintenance is essential for the air conditioner's optimal performance and longevity. The primary maintenance task involves cleaning the air filter. The air filter, located behind the inlet grille, should be checked and cleaned at least once every two weeks, or more frequently if necessary.

To clean the air filter:

Open the inlet grille by pulling out its bottom.
Remove the air filter from the front grille assembly by pulling it up slightly.
Wash the filter using lukewarm water (below 104°F/40°C).
Gently shake off excess water and replace the filter once completely dry.

The manual also addresses drainage. In high humidity conditions, the base pan may overflow. To drain excess water, the drain cap can be removed from the back of the unit, and a drainpipe can be secured. It is noted that some dripping from the back of the basepan is normal operation. When installing the drainpipe, force should be applied away from the fins to avoid injury.

For inner cleaning of the unit, it is recommended to contact an Authorized Service Center or dealer. Users are warned against using harsh detergents that could cause corrosion or damage to the unit.

Safety precautions are highlighted throughout the manual, including warnings against touching metal parts when removing the air filter, cleaning the unit with water, operating the unit without the air filter, and directing airflow directly at room occupants. It also advises against modifying the power cord, operating with wet hands, or applying insecticides or flammable sprays near the unit. The edges of the case can be sharp, so caution and heavy gloves are recommended during handling.

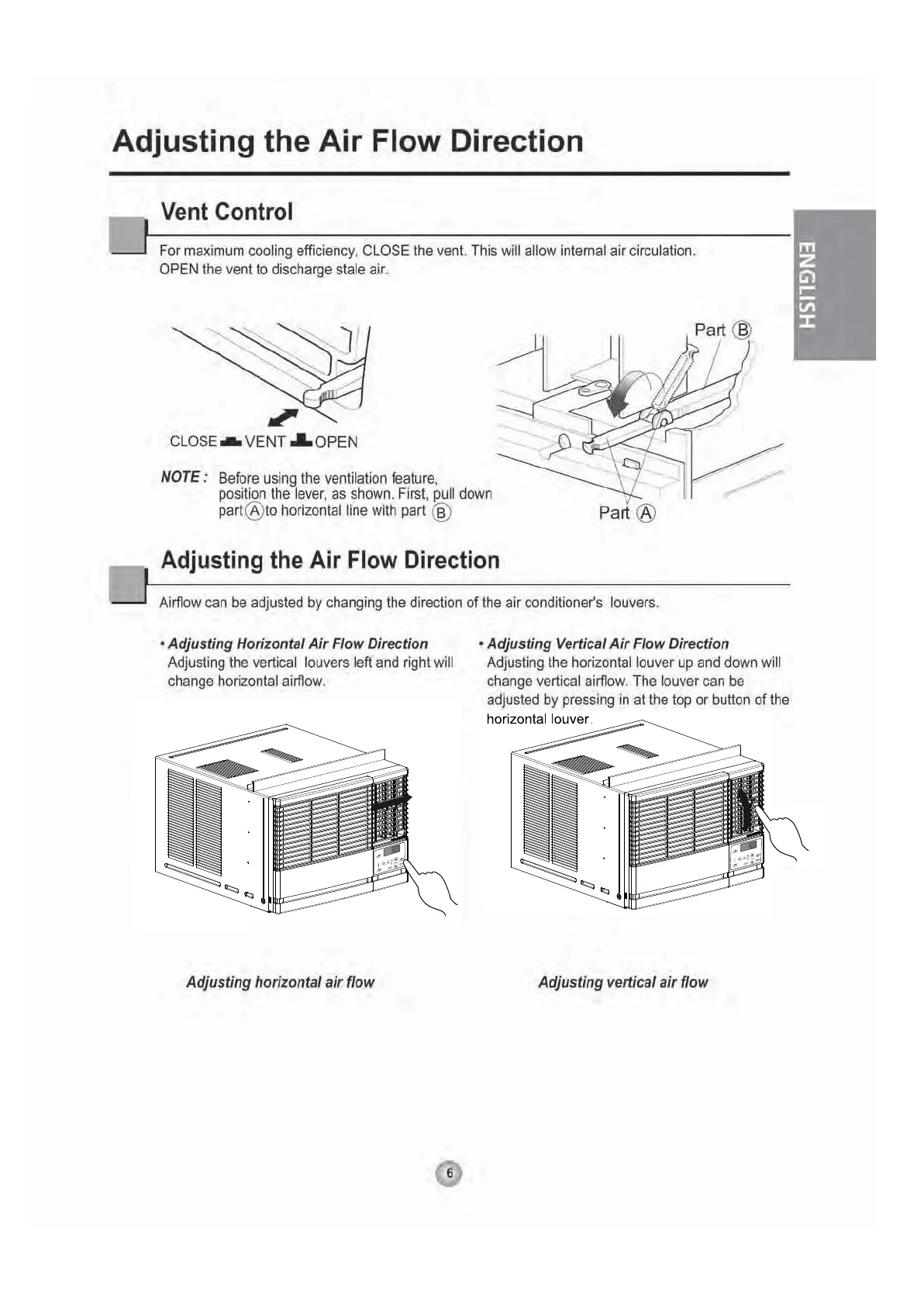

Friedrich CHILL CP08 - Adjusting the Air Flow Direction; Airflow Direction Adjustment
