Friedrich CP06E10 - Cabinet Installation

12
H
S
I
L
GN
E

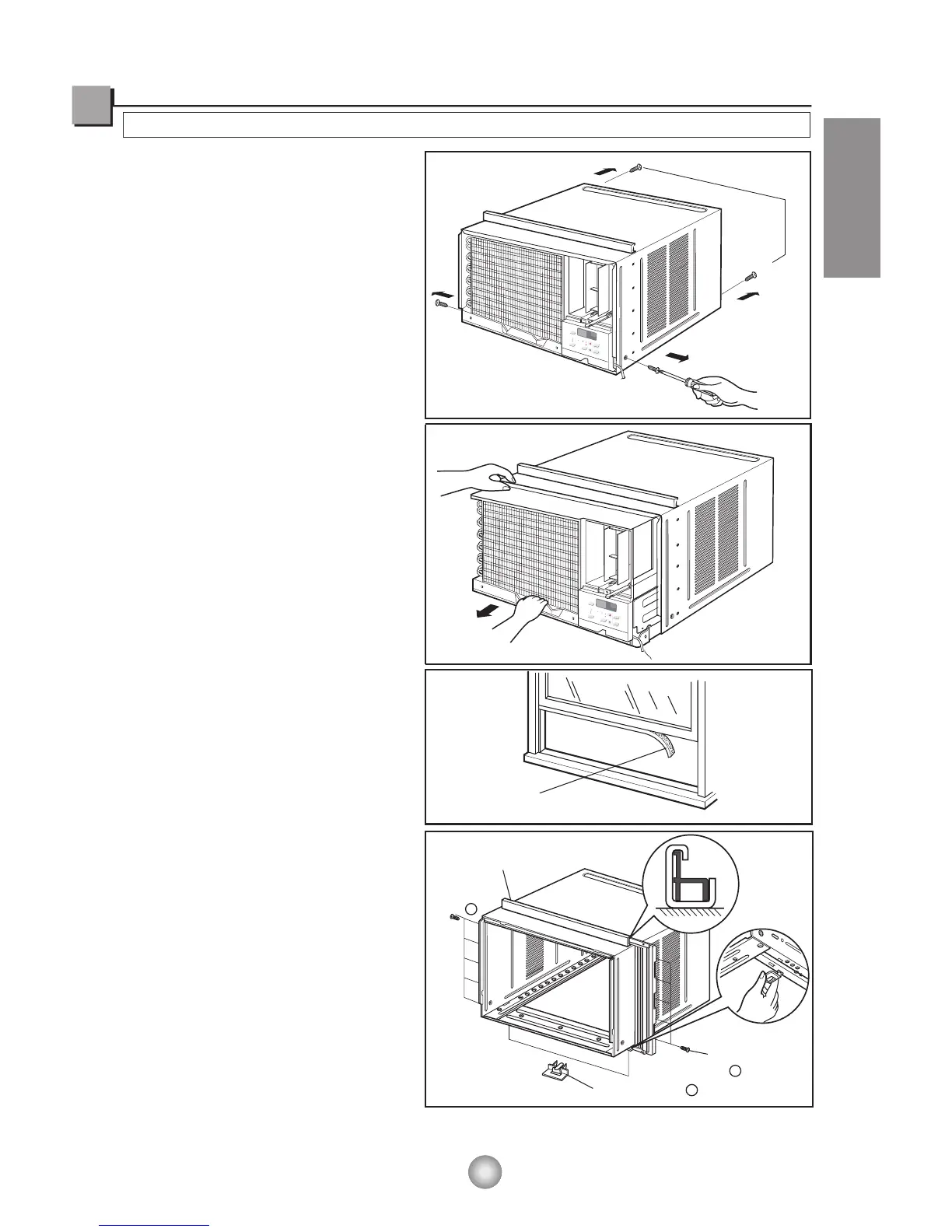

PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back.
2. Slide the unit out from the cabinet by gripping
the base pan handle and pulling forward while
bracing the cabinet.
3. Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-PE to
the
underside of the window sash.
4.
5.
6.
Inse
rt the Frame guides into the bottom of the
cabinet.
Insert the Frame Curtain into the
and Frame Guides.
Fasten the curtains to the unit with 8 Type
A screws.
Shipping screws
Foam-PE
Upper guide
Screw
(Type A)
Screw(Type A)
Frame guide
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Suggested Tool Requirements
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
