and operable manner.
above the ground for heat pump operation,
this will allow proper water drainage.
anchors for your mounting material.

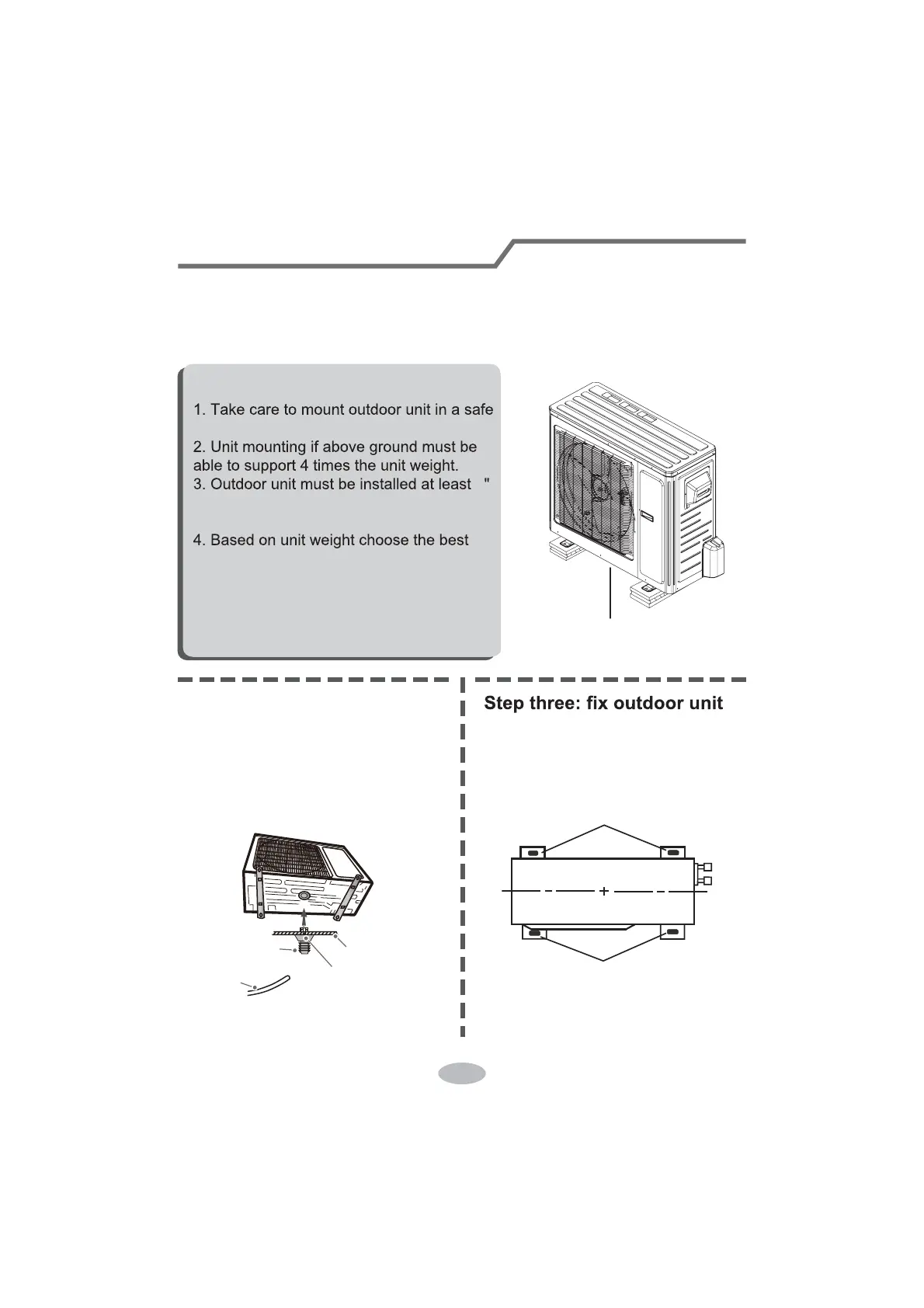

Installation of outdoor unit
Step one: Mounting of the outdoor unit
1. Select installation base on building material.
2. Choose the correct mounting hardware for application.
1. Place the outdoor unit on the
support.
Fix the foot holes of outdoor unit
with bolts.
2.
2. Connect the drain hose into the drain vent.
foot holes
foot holes
chassis
outdoor drain joint
11
drain vent
Drain hose
Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
Step two: install drain joint
1.
at least 2 above the floor
2
