13

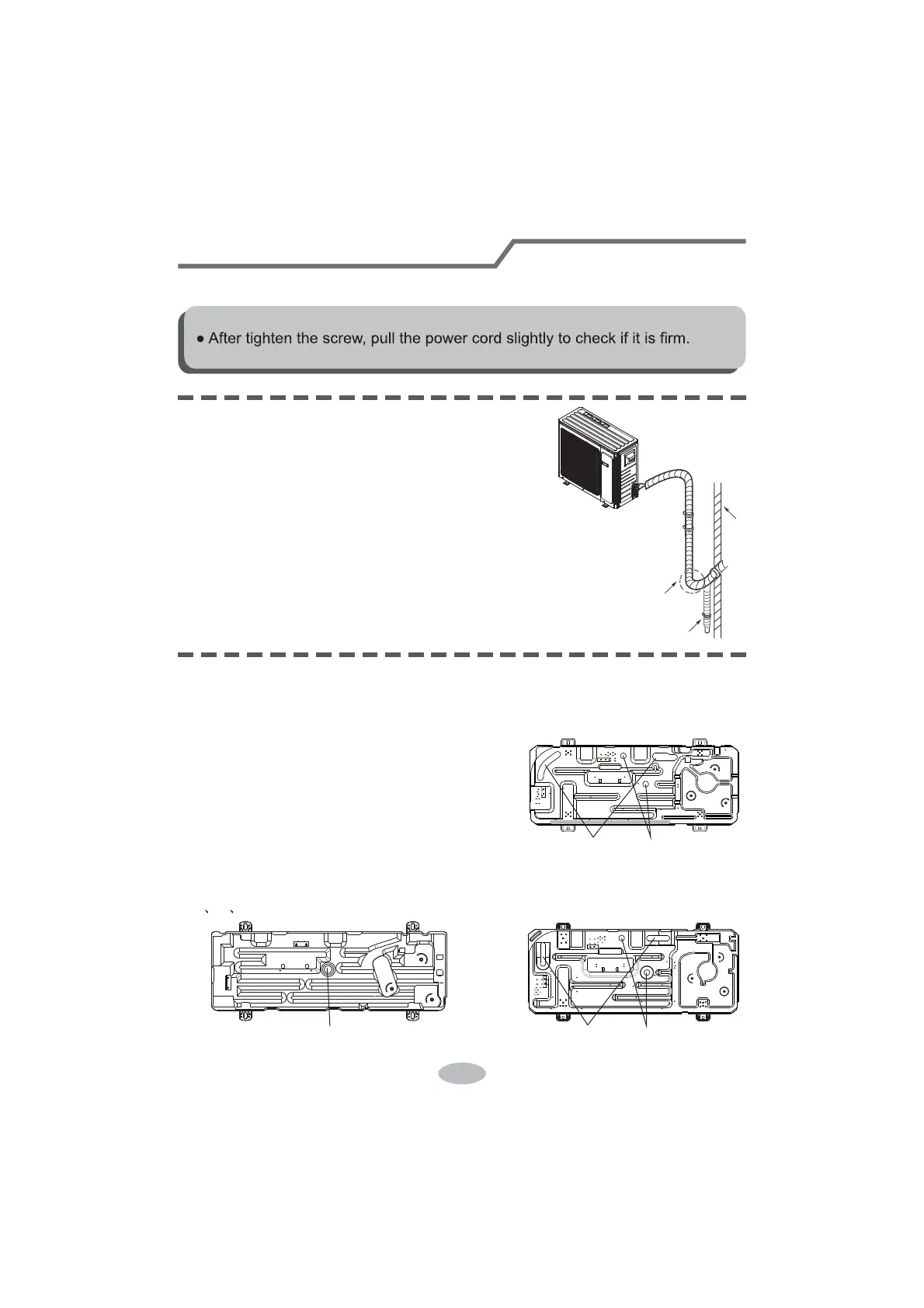

Step six: Arrange piping
Outdoor Condensate Drainage (only for Heat pump unit)
1. The pipes should be placed along the wall,
bent reasonably and hidden
2. If outdoor unit placement is higher than wall
penetration, create a drip loop in the line-set to
keep water from entering the building.
Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip.
Note:
During heating operation, the condensate and
defrosting water should be drained out reliably
through the drain hose. Install the outdoor dr-
on the
base plate and attach the drain hose to the co-
nnector so that the waste water formed in the
outdoor unit can be drained out. The hole dia-
Whether to plug other holes will be determined
by the dealers to actual conditions.
18K UNIT:
09
12K UNIT:
drain hole Drain-water hole
Bottom frame
!"#
drain hole Drain-water holeDrain-water hole
Bottom frameBottom frame
$
wall
drain hose
07
