Friedrich Kuhl series Installation Instructions

Model Kühl and Kühl + Series
Step 5. Install each sensor to the units’ electronic control PCB connector pin. Note that each
sensors connector is color coded (See Fig 1 & 2). The sensors connector color matches
the PCB connection connector color.
Step 6. Reinstall the units’ control panel and then insert the supply power cord to the units power
supply. Re-establish unit power and observe user interface display. If a sensor is not
installed correctly a wrench will be displayed. If the sensors are correctly installed then no
wrench will be displayed.

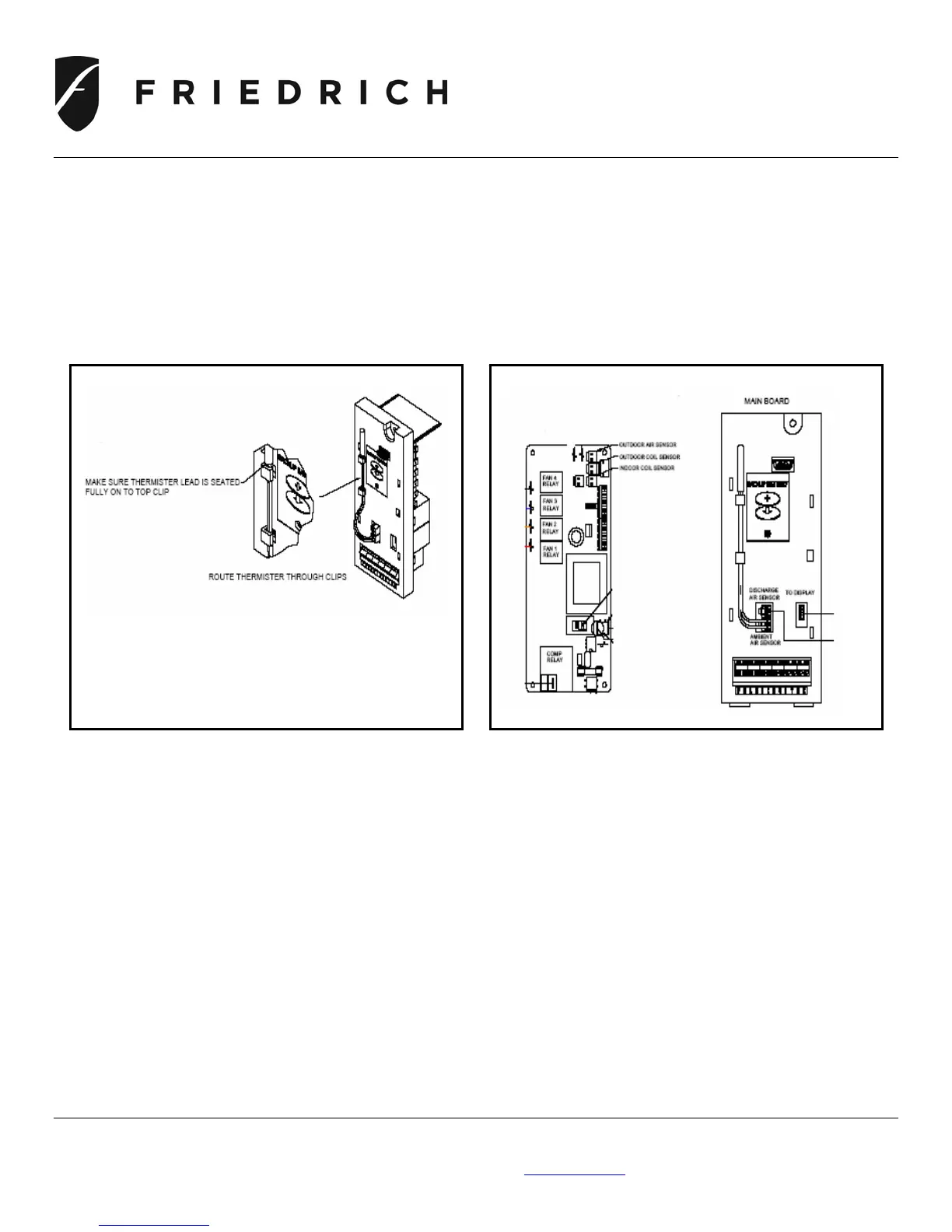

Figure 1 Figure 2
920-198-08 (6-10) Friedrich Air Conditioning Co. Page 2 of 2
Post Office Box 1540 / San Antonio, Texas 78295-1540
(210) 357-4400 / (800) 541-6645 / www.friedrich.com

Friedrich Kuhl series Specifications

General

Airflow (CFM)	Varies by model
Dimensions	Varies by model
Heating Capacity	Varies by model (Varies by model)
Voltage	115V/230V
Wi-Fi Control	Yes
Filter Type	Antimicrobial
Installation Type	Window/Wall
Sound Level	47 - 60 dB
Type	Window Air Conditioner
Smart Features	Wi-Fi
Fan Speeds	3
Refrigerant	R-410A
Operating Voltage	115V/230V
