112 PB

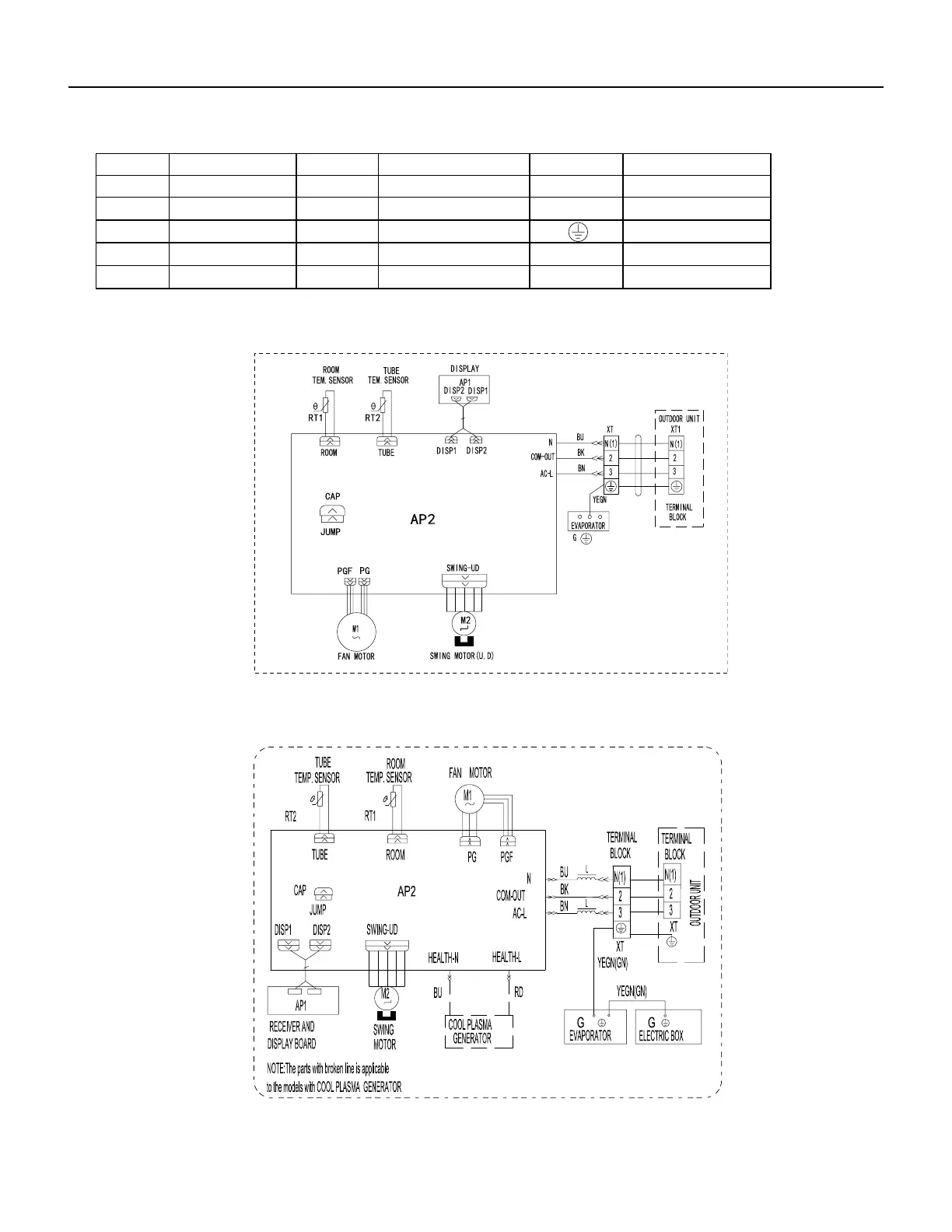

WIRING DIAGRAMS
Figure 802
18K Indoor Unit Wiring Diagram
MWM09Y1J MWM12Y1J
Figure 801
9-12K Indoor Unit Wiring Diagram
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP Jumper cap
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
