68 PB
Removal
Outdoor Unit

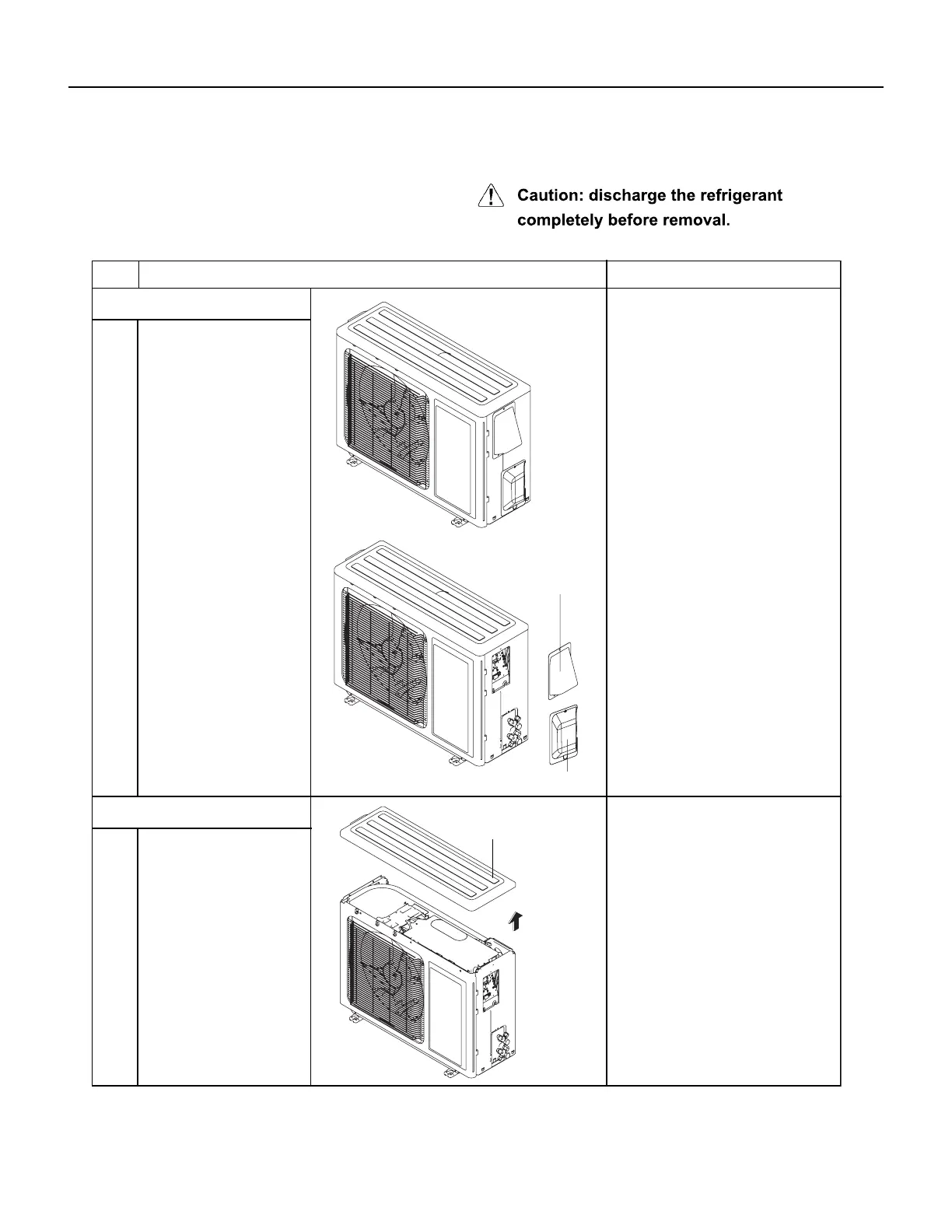

1. Features
2. Remove top panel
Top panel
a
Loosen the screw of the
cable cross plate sub-
assy and remove it.
Pull down the stop valve
cover and remove it.
a
Cable Cross
Loosen the 3 screws
(right, left) and lift
the top panel.
Valve Cover
Plate sub-assy
Steps
Procedure
Points
