21
920-087-06
The vent control lever is located behind the front cover on the
left side of the unit. The unit is shipped in the closed position
with a locking screw in place. The screw must be removed to
operate the lever. When the lever is back, (OPEN), outside air
is mixed with indoor air. When the lever is forward, (CLOSED),
no outside air is admitted into the room and room air is recycled
through the unit.
Fresh Air Vent Control
NOTE: The vent should remain closed for peak operating effi ciency.
Auxiliary Fan Control
The Smart Center also has the ability to control a 24VAC relay
to activate an auxiliary, or transfer, fan. The outputs are listed as
F1 and F2 on the control board.
To connect the relay, simply wire one side of the relay to F1
and the other side to F2. Anytime that the PTAC fan runs the
terminals will send a 24VAC signal to the relay. The relay must
be 24 VAC, 50mA or less.
Note: The relay and auxiliary fans must be fi eld supplied.
NOTE: It is the installer's responsibility to ensure that all control
wiring connections are made in accordance with the installation
instructions. Improper connection of the thermostat control wir-
ing and/or tampering with the unit's internal wiring can void the
equipment warranty and may result in property damage, personal
injury or death. Other manufacturer's PTACs and even older
Friedrich models may have different control wire connections.
Questions concerning proper connections to the unit should be
directed to the factory.
Wire Size Maximum Length
#24 400 ft.
#22 600 ft.
#20 900 ft.
#18 1500 ft.
#16 2000 ft.
Desk Control Terminals
The Friedrich PD model PTAC has built-in provisions for
connection to an external switch to control power to the unit. The
switch can be a central desk control system or even a normally
open door switch.
For desk control operation connect one side of the switch to the
D1 terminal and the other to the D2 terminal (See fi gure 17).
Whenever the switch closes the unit operation will stop.
Maximum Wire Length for Desk Control Switch
Note: The desk
control system and
switches must be
fi eld supplied.

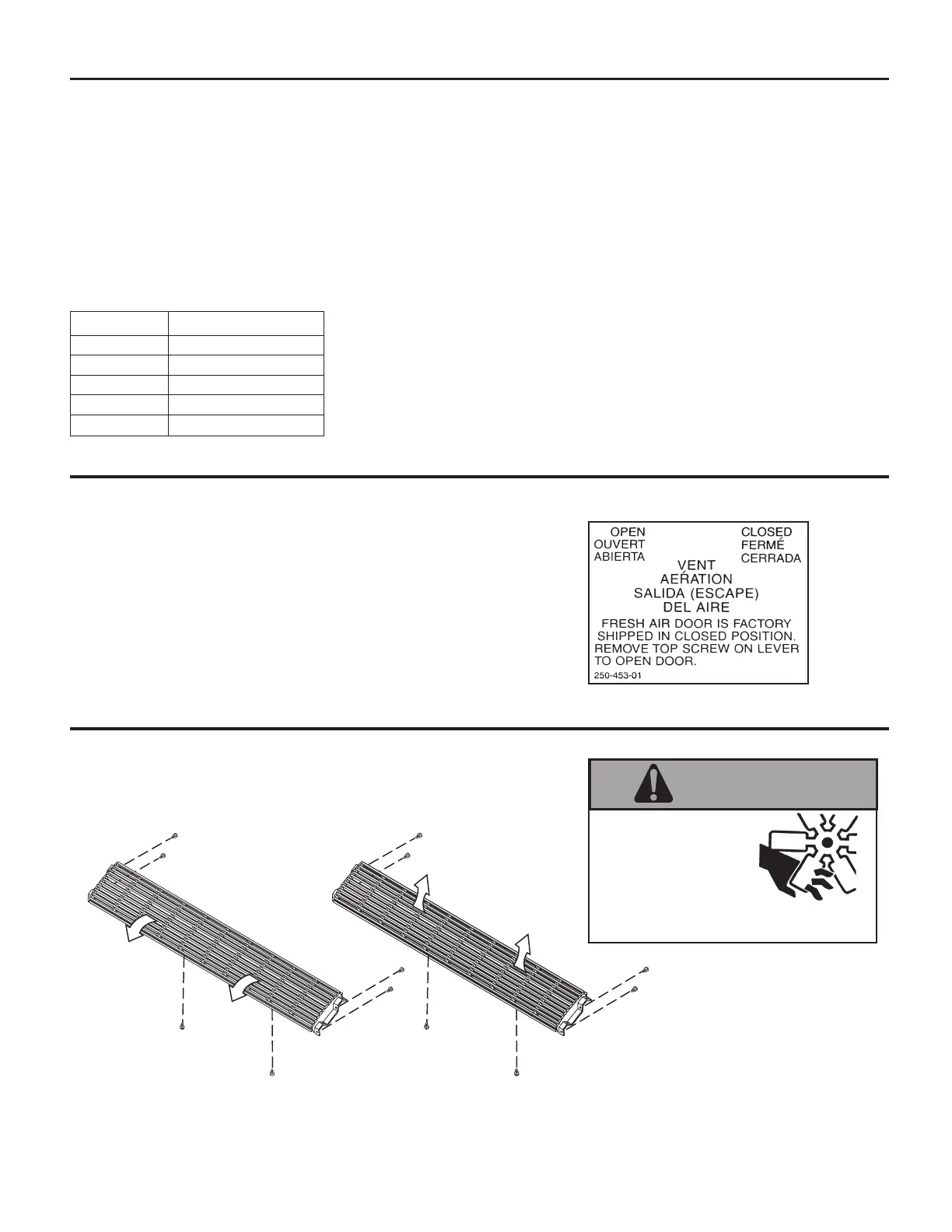

Air Discharge Grille
The air discharge grille can be redirected to blow air either straight up or at an angle into the room. To change the airfl ow direction, remove
the front cover, locate and remove the six grill retaining screws. Reverse the ends of the grille and refasten the grille to the cover.
Moving parts hazard.
Turn off electric power
before servicing this
component.
Failure to do so can result in property
damage, personal injury and/or death.
WARNING
