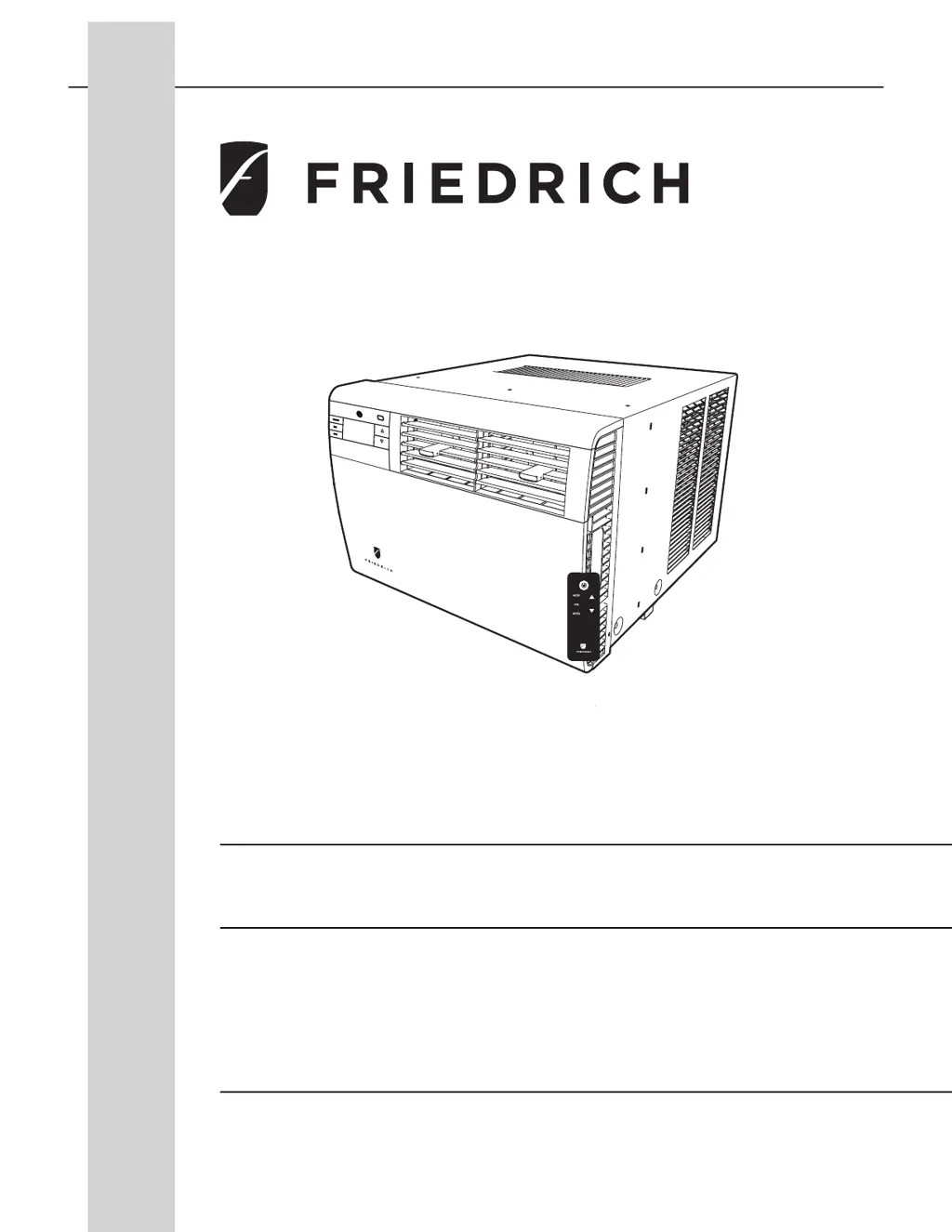

Friedrich Q Series - User Manual

Other manuals for Friedrich Q Series

Parts Manual44 pages

Questions and Answers

R
Robert ThomasSep 12, 2025
How to stop Friedrich Air Conditioner from water “spitting” into room?
- M
  Michelle JuarezSep 12, 2025
  If your Friedrich air conditioner is “spitting” water into the room, it could be due to: * Sublimation, where unconditioned saturated outside air mixes with conditioned air. Ensure that foam gaskets are installed between window panes and between the unit and the sleeve. * The downward pitch of the installation being too steep towards the back of the unit. Follow installation instructions to ensure the downward pitch is no less than 1/4” and no more than 3/8”. * A restricted coil or dirty filter. Clean and advise the customer of periodic cleaning and maintenance needs of the entire unit.
M
Michael LeeAug 25, 2025
Why Friedrich Q Series unit does not operate?
- A
  Alicia HendersonAug 25, 2025
  Your Friedrich air conditioner might not be operating due to several reasons: * The power button might be off, or the set temperature has been reached. Try pressing the power button and adjusting the temperature setting. * The LCDI power cord could be unplugged. Ensure it's plugged into a grounded outlet. * The LCDI power cord may have tripped. Press the RESET button until it latches. * A circuit breaker might have tripped, or a fuse blown. Reset the breaker or replace the fuse. If the issue continues, contact an electrician. * There may have been a power failure. The unit should resume operation once power is restored.
P
pjuarezAug 26, 2025
Why Friedrich Air Conditioner does not heat adequately?
- M
  Michael OrtizAug 26, 2025
  If your Friedrich air conditioner isn't heating adequately, consider these issues: * A dirty filter. Clean it (See Routine Maintenance). * The unit being undersized. Check the heat rise across the coil. If the unit operates efficiently, check if insulation can be added to the attic or walls. * The heater hi-limit control cycling on and off. Check for adequate fan air across the heater and for an open hi-limit control. * A shorted or open supplementary heater. Do an ohmmeter check. * Incorrect wiring. Check the applicable wiring diagram.
K
Kimberly HahnAug 27, 2025
What to do if my Friedrich Q Series trips circuit breaker or blows fuses?
- N
  Nichole MoralesAug 27, 2025
  If your Friedrich air conditioner is tripping the circuit breaker or blowing fuses, consider these potential causes: * Too many appliances are on the same circuit. The air conditioner needs its own dedicated circuit. * You're using an extension cord. Avoid using extension cords with air conditioners. * The circuit breaker or fuse has the wrong rating. Replace it with one that has the correct rating.
K
Karen CollinsAug 29, 2025
Why does my Friedrich Air Conditioner run too much?
- J
  Jessica WestAug 29, 2025
  If your Friedrich air conditioner is running excessively, it could be due to: * An excessive heat load in the room. If there are heat-producing appliances in use or the room is heavily occupied, the unit will run longer to remove the heat. * An improperly sized unit. Be sure to use exhaust vent fans while cooking or bathing and, if possible, try not to use heat-producing appliances during the hottest part of the day.
J
Janet TaylorAug 31, 2025
How to fix Friedrich Air Conditioner LCDI Power Cord Trips?
- T
  Timothy ThompsonAug 31, 2025
  The LCDI power cord on your Friedrich air conditioner may trip due to: * Disturbances on your power supply line. Press and release the RESET button (listen for a click) to resume normal operation. * Electrical overload, overheating, or a pinched cord. After identifying and fixing the issue, press and release the RESET button (listen for a click) to resume normal operation.
M
mrobertsSep 19, 2025
How to fix Friedrich Air Conditioner room temperature uneven (Heating cycle)?
- T
  Todd GraySep 22, 2025
  Uneven room temperature during the heating cycle of your Friedrich air conditioner can be caused by: * A bad indoor ambient thermistor. Check diagnostic codes, check thermistors, and replace as needed. * Fan speed set too low. Set the fan speed to a higher setting.
B
blankenshipemilyNov 20, 2025
What to do if my Friedrich Air Conditioner does not cool or only cools slightly?
- K
  kellymartinNov 20, 2025
  If your Friedrich air conditioner isn't cooling effectively, here's what might be happening: * The unit might be undersized. Refer to an industry standard sizing chart to ensure it is adequate for the room size. * The indoor ambient thermistor could be faulty. Check diagnostic codes and replace the thermistor if needed. * The filter might be dirty. Clean the filter as described in the owner’s manual. * The condenser or evaporator coil may be dirty or restricted. Clean with a pressure wash or biodegradable cleaner. * There might be poor air circulation. Adjust the louvers and use a high fan speed. * A fresh air or exhaust air door could be open. Close these doors. * The unit could have low capacity due to undercharge. Check for leaks and repair them. * The compressor might ...
K
Kathleen TaylorSep 9, 2025
How to resolve water leaks into room from Friedrich Air Conditioner?
- L
  lfaulknerSep 9, 2025
  If water is leaking into the room from your Friedrich air conditioner, consider these possible causes: * The evaporator drain pan is overflowing. Clean any obstructions in the drain trough. * Condensation is forming underneath the base pan. Reseal or replace the evaporator drain pan. * Poor installation is allowing rain to enter. Check the installation instructions and reseal as needed. * Condensation is forming on the discharge grille louvers. Clean the coils (see Routine Maintenance). * The chassis gasket is not installed. Install the gasket according to the Installation manual. * The unit's downward slope is too steep inward. Refer to the installation manual for proper installation.
M
Madeline ThompsonSep 6, 2025
How to troubleshoot Friedrich Q Series electronic control board that does not turn unit off?
- P
  Patrick BarberSep 6, 2025
  If the electronic control board in your Friedrich air conditioner isn't turning the unit off, it may be due to: * Compressor relay contacts stuck. Replace the electronic control board. * Incorrect wiring. Refer to appropriate wiring diagrams. * The unit being undersized for the area to be cooled. Refer to an industry standard sizing chart. * A defective thermistor. Replace the thermistor or electronic control board.

Summary

Introduction to Friedrich Room Air Conditioners

Important Safety Information

Details crucial safety precautions and hazard warnings for installation and repair personnel.

Personal Injury or Death Hazards

Highlights electrical hazards and potential risks associated with unit operation and maintenance.

Refrigeration System Repair Hazards

Details hazards related to refrigerant handling, system repair, and potential burns.

Mechanical Hazards

Specifications for Kühl Air Conditioners

Electrical Data

Details circuit ratings, breaker/fuse types, power cord requirements, and receptacle specifications.

Operation of Kühl Air Conditioners

User Interface Overview

User Interface: CnCT (WiFi Connection) Menu

User Interface: diAG Menu

Explains how to access and toggle through diagnostic error codes.

Wi-Fi Set Up Instructions

Control Panel Functions

Unit Cooling Mode

Refrigeration Sequence of Operation

Routine Maintenance Procedures

Remove and Install the Chassis

Chassis Removal and Installation

R-410 A Sealed System Repair

R-410 A Sealed System Repair Considerations

Lists important considerations and required equipment for R-410A systems.

Refrigerant Charging Procedures

Explains proper refrigerant charging methods and potential issues.

Undercharged Refrigerant Systems

Describes symptoms, causes, and checks for undercharged refrigerant systems.

Overcharged Refrigerant Systems

Details symptoms, causes, and confirmation methods for overcharged systems.

Restricted Refrigerant System Diagnosis

Covers symptoms, types, and checks for partial or complete refrigerant restrictions.

Sealed System Charging and Repair Method

Outlines the weighed-in charge method for system charging and repair.

Component Testing Procedures

Hermetic Components Check

Checks capillary tubes for restrictions in heating and cooling modes.

Compressor Checks

Guides on testing compressor voltage, amperage, resistance, and ground continuity.

Compressor Replacement

Step-by-step instructions for replacing a compressor, including safety precautions.

Compressor Replacement (Burnout Procedure)

Procedure for compressor replacement following a burnout, including flushing and cleaning.

Fan Motor Testing

Explains fan motor function and provides methods for testing its serviceability.

Capacitor Testing

Covers capacitor types, safety precautions, and testing with a capacitor analyzer.

Heating Element Testing

Details the heating element, its fuse link, high limit control, and testing procedure.

User Interface and Electronic Control Board Testing

Guides on testing the user interface and electronic control board for proper voltage.

Replace Electronic Control Board

Replace User Interface

Troubleshooting Air Conditioner Issues

Unit Performance Test Data Sheet

Diagnostic Codes

List of fault codes, their associated problems, and control board actions for troubleshooting.

Troubleshooting Tips

Refrigerant System Diagnosis (Cooling Cycle)

Flowchart for diagnosing refrigerant system issues during the cooling cycle based on pressure readings.

Wiring Diagrams for Kühl Models

Wiring Diagrams

Friedrich Q Series Specifications

General

Smart Features	Wi-Fi control, voice control with Alexa and Google Assistant
Energy Star Certified	Yes
Cooling Capacity	9, 000 - 36, 000 BTUs
Energy Efficiency Ratio (EER)	12.1
Dimensions (H x W x D)	Varies by model
Weight	Varies by model
