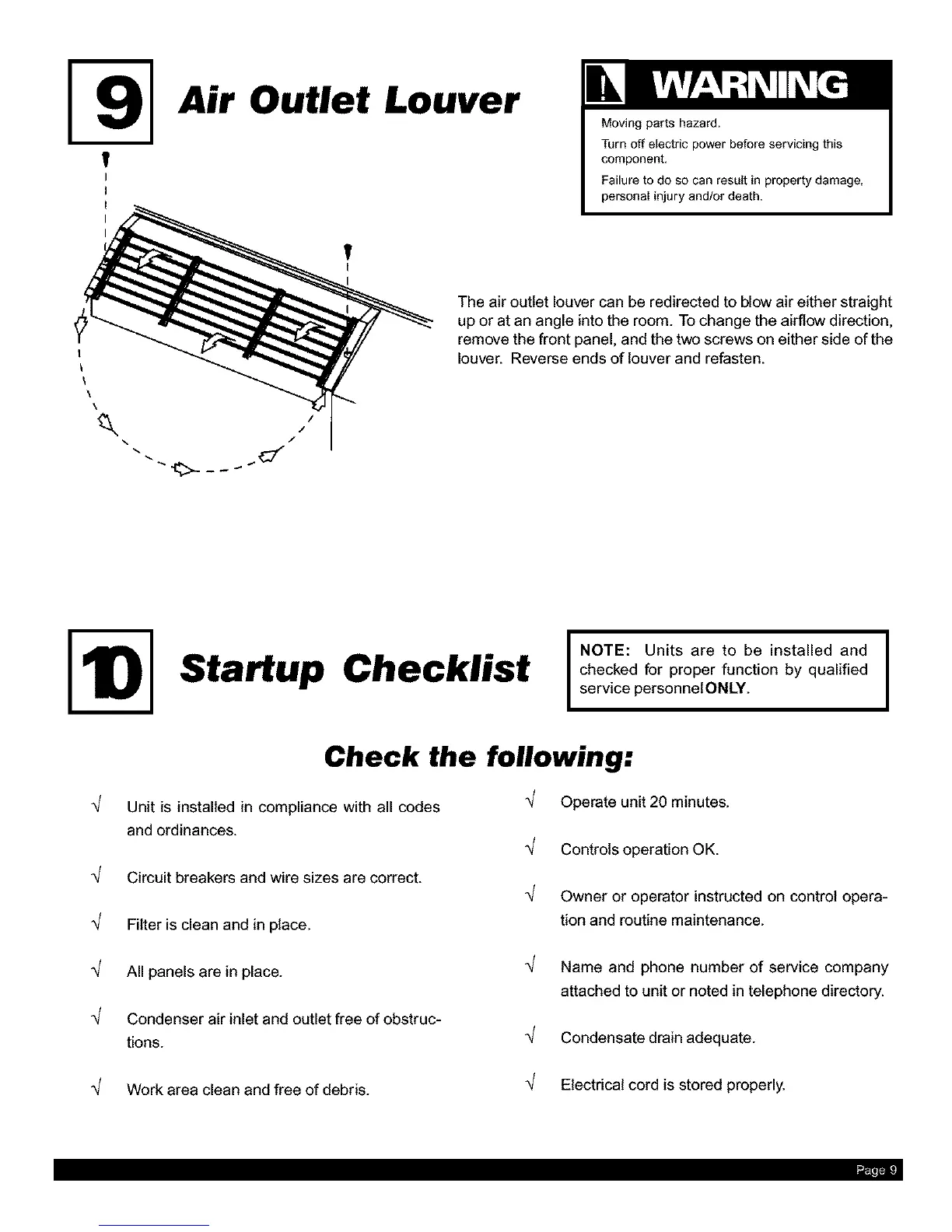

Air Outlet Louver
I
\
\
\
The air outlet louver can be redirected to blow air either straight
up or at an angle into the room. To change the airflow direction,
remove the front panel, and the two screws on either side of the
louver. Reverse ends of louver and refasten.
Startup Checklist
I
NOTE: Units are to be installed and
checked for proper function by qualified
service personnel ONLY.
Check the following:
_/ Unit is installed in compliance with all codes
and ordinances.
_/ Circuit breakers and wire sizes are correct.
_/ Filter is clean and in place.
_/ All panels are in place.
_/ Condenser air inlet and outlet free of obstruc-
tions.
_/ Operate unit 20 minutes.
_/ Controls operation OK.
_/ Owner or operator instructed on control opera-
tion and routine maintenance.
_/ Name and phone number of service company
attached to unit or noted in telephone directory.
_/ Condensate drain adequate.
Work area clean and free of debris.
_/ Electrical cord is stored properly.
