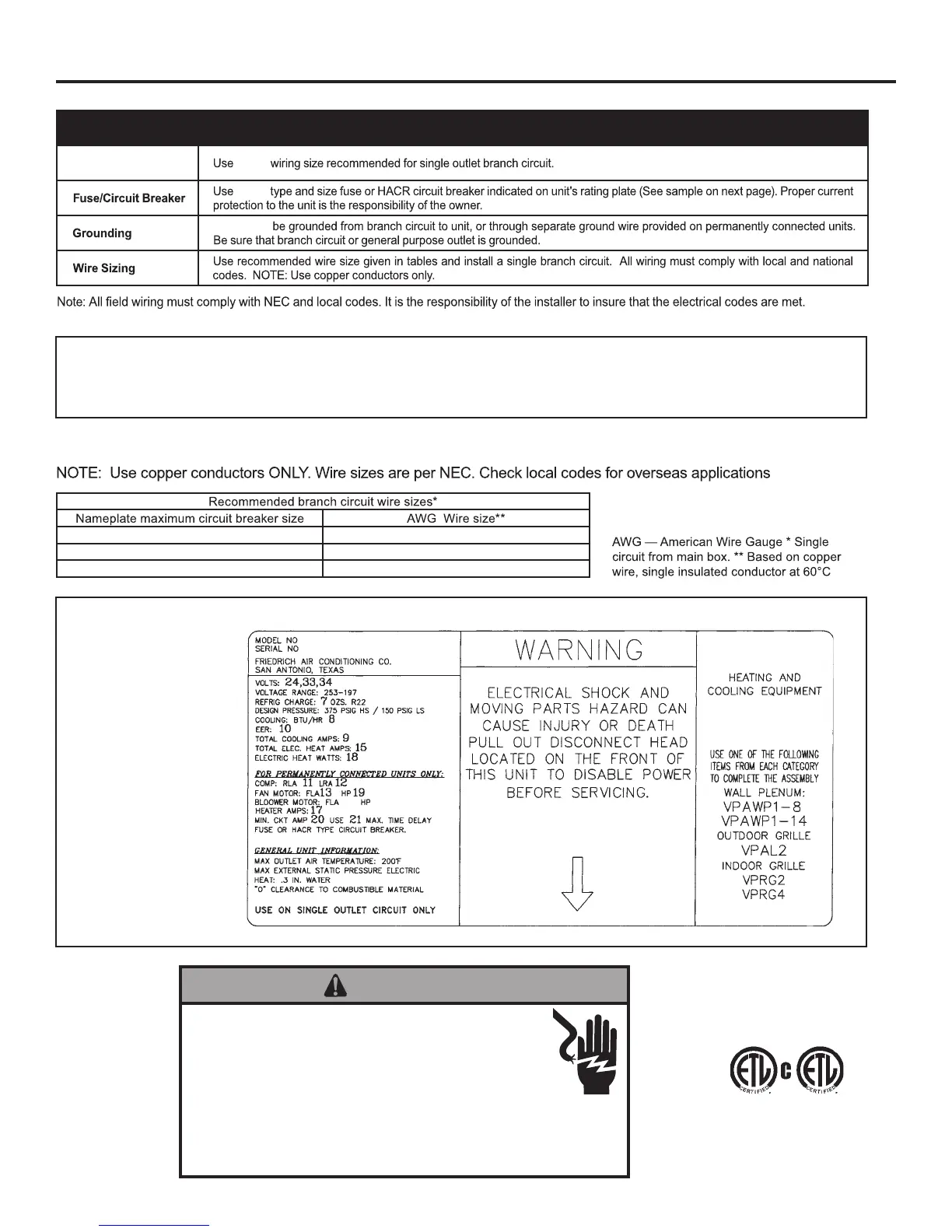

Electrical Requirements
Wire Size ONLY
ONLY
Unit MUST
Sample Nameplate
All 208/230v chassis must be hard wired with properly sized breaker. See namplate for specific chassis electrical
requirements. See figure 9 (Page 12) for unit wiring and wall thermostat wiring. See Electrical Rating Table below for wire size.
Use HACR type breakers to avoid nuisance trips. All field wiring must be done in accordance with NEC and local codes.
Electrical Shock Hazard
Turn OFF electric power before service or installation.
Unit must be properly grounded.
Unit must have correct fuse or circuit breaker protection.
Unit’s supply circuit must have the correct wire conductor size.
All electrical connections and wiring must be installed by a qualified
electrician and conform to the National Electrical Code and all local
codes which have jurisdiction.
Failure to do so can result in property damage, personal injury and/or death.
WARNING
SAMPLE
Electrical Rating Tables
41A51
21A02
01A03
