Friedrich Vert-I-Pak A-Series User Manual

15
Wall Plenum Installation
Step 2 - Inside Wall Plenum Half
Caulk all 8
Flange Corners
and Unused
Holes

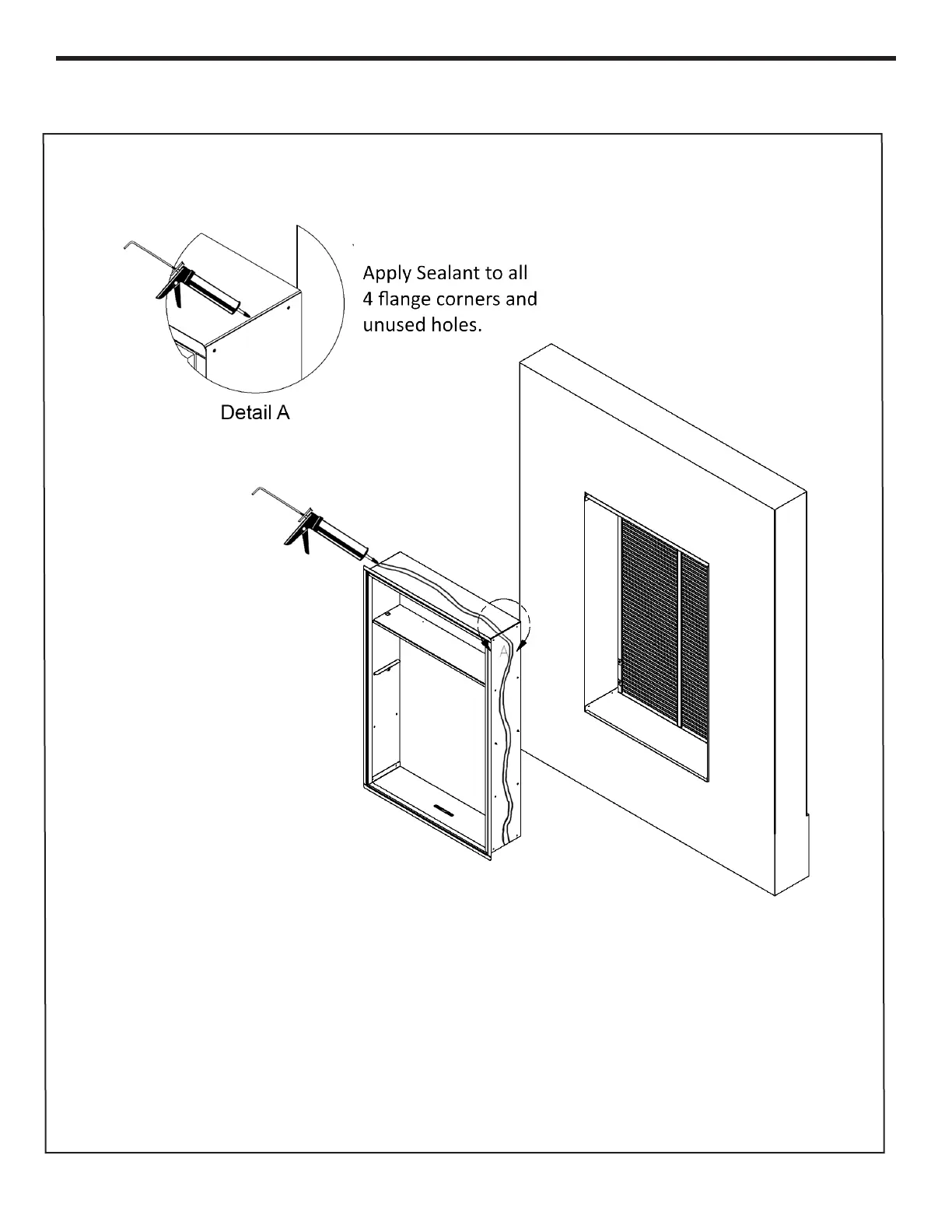

Detail A
1. Apply sealant to all 4 ange corners and unused holes. See Detail A.
2. Flash the inside of the rough opening to ensure the proper t and level.
3. Insert inside plenum half (Part B) into outside plenum half (Part A). Ensure that Part A does not back out of
the rough opening.
4. Remove the inside plenum half.
5. Apply sealant to the outside plenum half and insert into the rough opening to ensure a water-tight seal.
