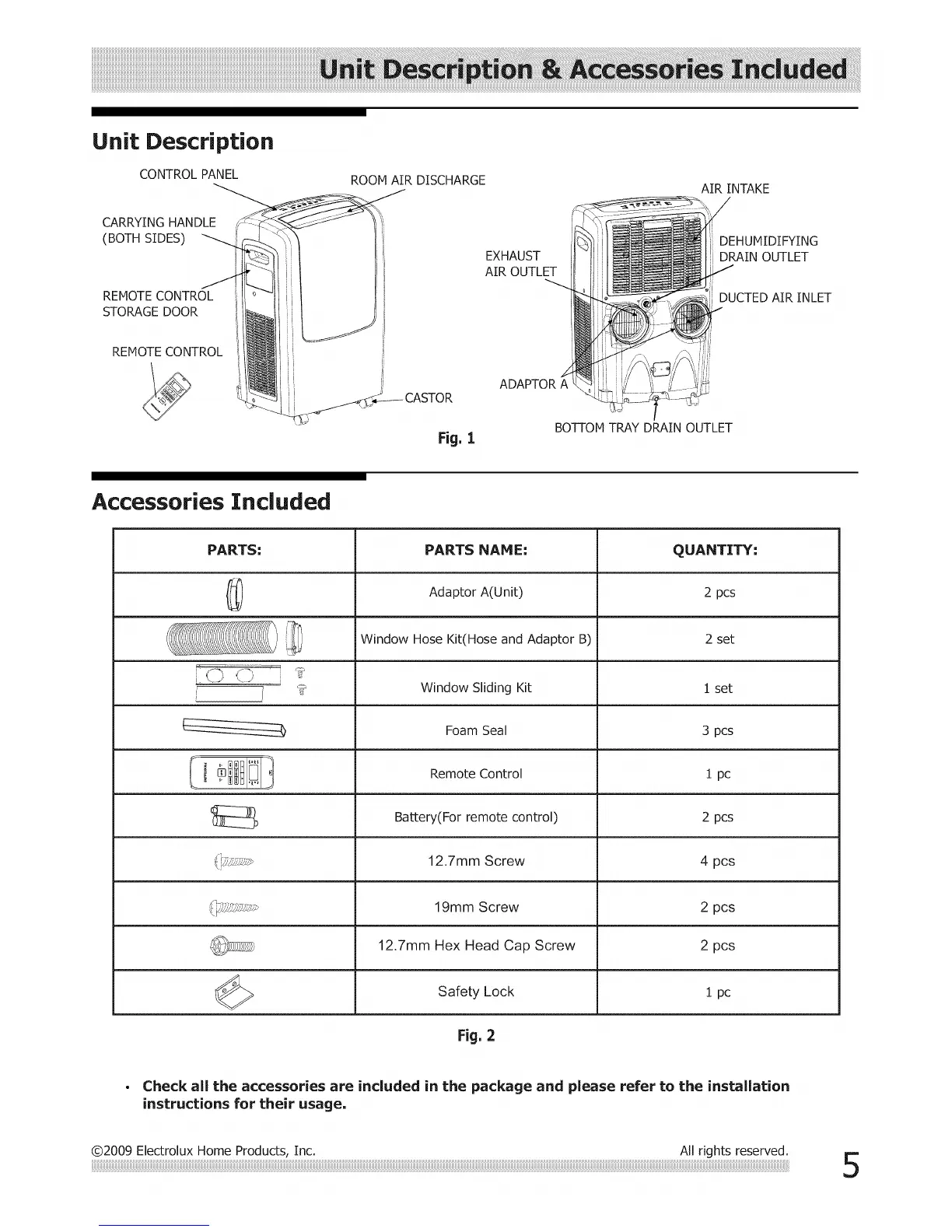

Unit Description
CONTROL PANEL
CARRYING HANDLE
(BOTH SIDES)
REMOTE CONTROL !
STORAGE DOOR
REMOTE CONTROL
ROOM AIR DISCHARGE
Fig. 1
AIR INTAKE
EXHAUST
AIR OUTLET
DEHUMIDIFYING
DRAIN OUTLET
DUCTED AIR INLET
ADAPTOR A
BOTTOM TRAY DRAIN OUTLET
Accessories Included
PARTS: PARTS NAHE: QUANTITY:
Adaptor A(Unit) 2 pcs
Window Hose Kit(Hose and Adaptor B) 2 set
_J % J J
Window Sliding Kit 1 set
Foam Seal 3 pcs
Remote Control 1 pc
Battery(For remote control) 2 pcs
12.7mm Screw 4 pcs
19mm Screw 2 pcs
12.7mm Hex Head Cap Screw 2 pcs
Safety pc
Lock
1
Fig, 2
• Check all the accessories are included in the package and please refer to the installation
instructions for their usage.
02009 Electrolux Home Products, Inc. All rights reserved.
