Frigidaire EFIC101 Use & Care

7

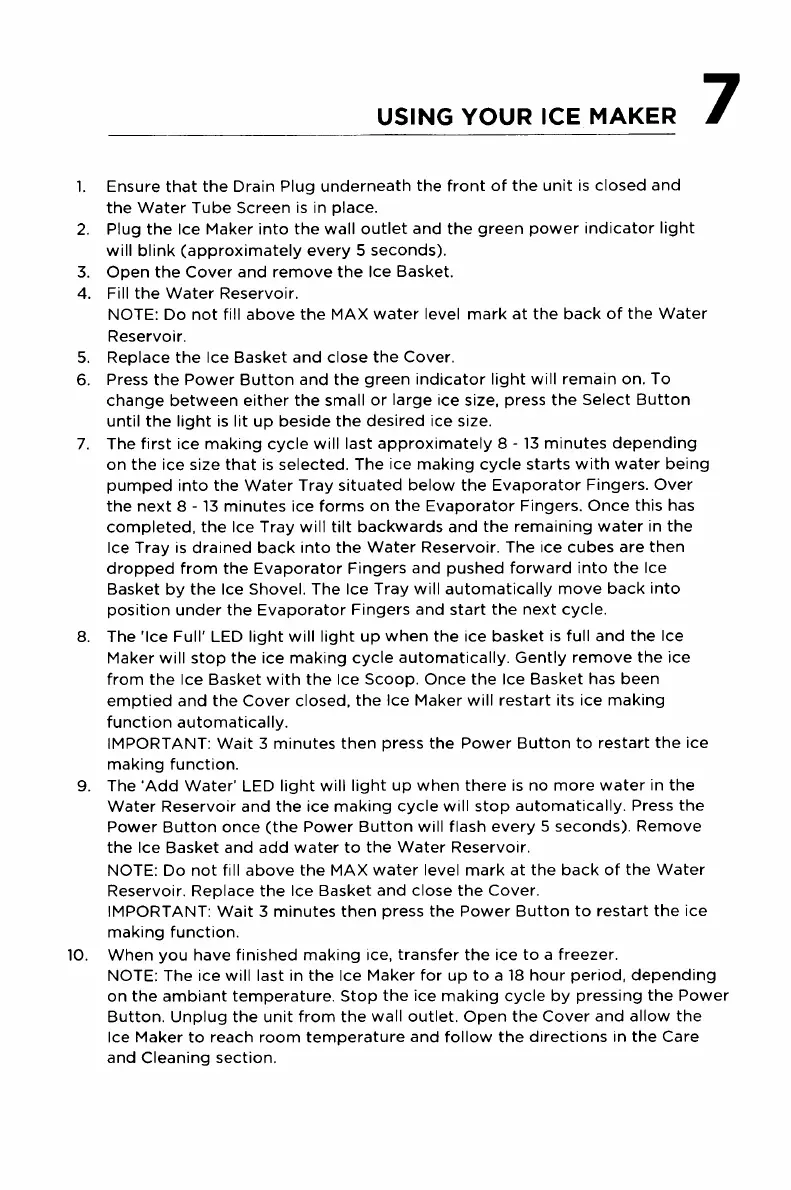

USING YOUR ICE MAKER
1.
Ensure that the Drain Plug underneath the front of the unit is closed and
the Water Tube Screen is in place.
Plug the Ice Maker into the wall outlet and the green power indicator light
will blink (approximately every 5 seconds).
Open the Cover and remove the Ice Basket.
Fill the Water Reservoir.
NOTE; Do not fill above the MAX water level mark at
the back of the Water
Reservoir.
Replace the Ice Basket and close the Cover.
Press the Power Button and the green indicator light will remain on. To
change between either the small or large ice size, press the Select Button
until the light is lit up beside the desired ice size.
The first ice making cycle will last approximately 8-13 minutes depending
on the ice size that is selected. The ice making cycle starts with water being
pumped into the Water Tray situated below the Evaporator Fingers. Over
the next 8 -13 minutes ice forms on the Evaporator
Fingers. Once this has
completed, the Ice Tray will tilt backwards and the
remaining water in the
Ice Tray is drained back into the Water Reservoir. The ice cubes are then
dropped from the Evaporator Fingers and pushed forward into the Ice
Basket by the Ice Shovel. The Ice Tray will automatically move back into
position under the Evaporator Fingers and start the
next cycle.
The 'Ice Full' LED light will light up when the ice basket is full and the Ice
Maker will stop the ice making cycle automatically. Gently remove the ice
from the Ice Basket with the Ice Scoop. Once the Ice Basket has been
emptied and the Cover closed, the ice Maker will restart
its ice making
function automatically.
IMPORTANT: Wait 3 minutes then press the Power Button to restart the ice
making function.
The 'Add Water’ LED light will light up when there is no more water in the
Water Reservoir and the ice making cycle will stop automatically. Press the
Power Button once (the Power Button will flash every 5 seconds). Remove
the Ice Basketand add water to the Water Reservoir.
NOTE; Do not fill above the MAX water level mark at
the back of the Water
Reservoir. Replace the Ice Basket and close the Cover.
IMPORTANT: Wait 3 minutes then press the Power Button to restart the ice
making function.
When you have finished making ice, transfer the ice to a freezer.
NOTE: The ice will last in the Ice Maker for up to
a 18 hour period, depending
on the ambiant temperature. Stop the ice making cycle
by pressing the Power
Button. Unplug the unit from the wall outlet. Open the Cover and allow the
Ice Maker to reach room temperature and follow the directions in the Care
and Cleaning section.
2.
3.
4.
5.
6.
7.
8.
9.
10.

Frigidaire EFIC101 Specifications

General

Brand	Frigidaire
Model	EFIC101
Category	Ice Maker
Language	English
