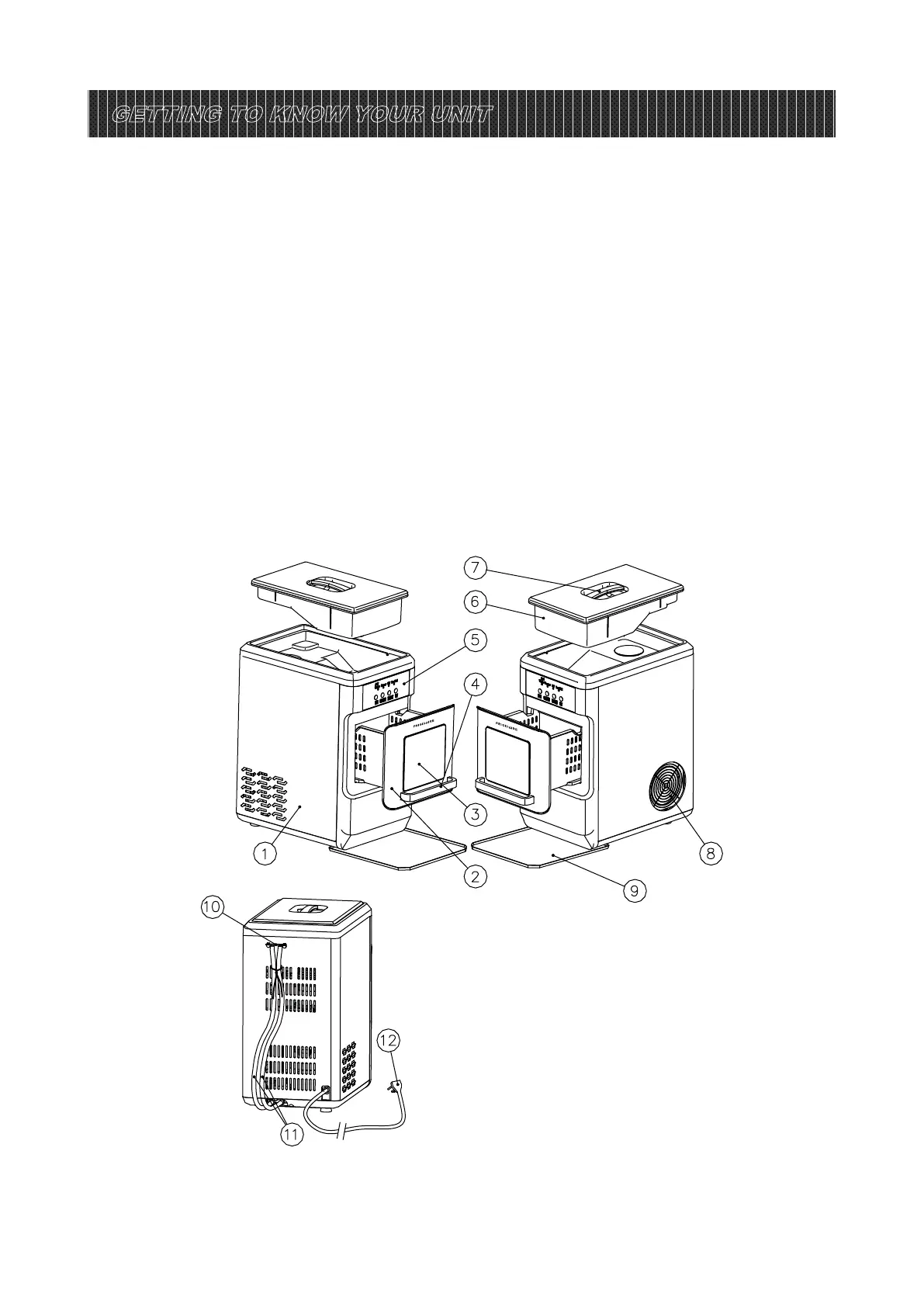

GETTING TO KNOW YOUR UNIT
1. Metal shell
2. Drawer
3. Observation window: See how much ice has been stored in the drawer.
4. Handle for drawer.
5. Control Panel:
Indicator light: Lack of water in reservoir, Power, UV Light, Ice full
Button: ICE, CLEAN, UV, LIGHT
6. Water reservoir
7. Handle for water reservoir
8. Hot Air outlet
9. Drip tray
10. Water drain cap: After cleaning procedure, remove drain cap from the back of the appliance, pull
out the cap from the drainpipe, empty the tank under the drawer, the
n reinsert the cap and put it back
again.
11. Drainpipe: After cleaning procedure, you can collect dirty water from the drainpipe (there are two
pipes: one connects to the evaporator, the other one connects to the water tank under the drawer).
12. Power cord
