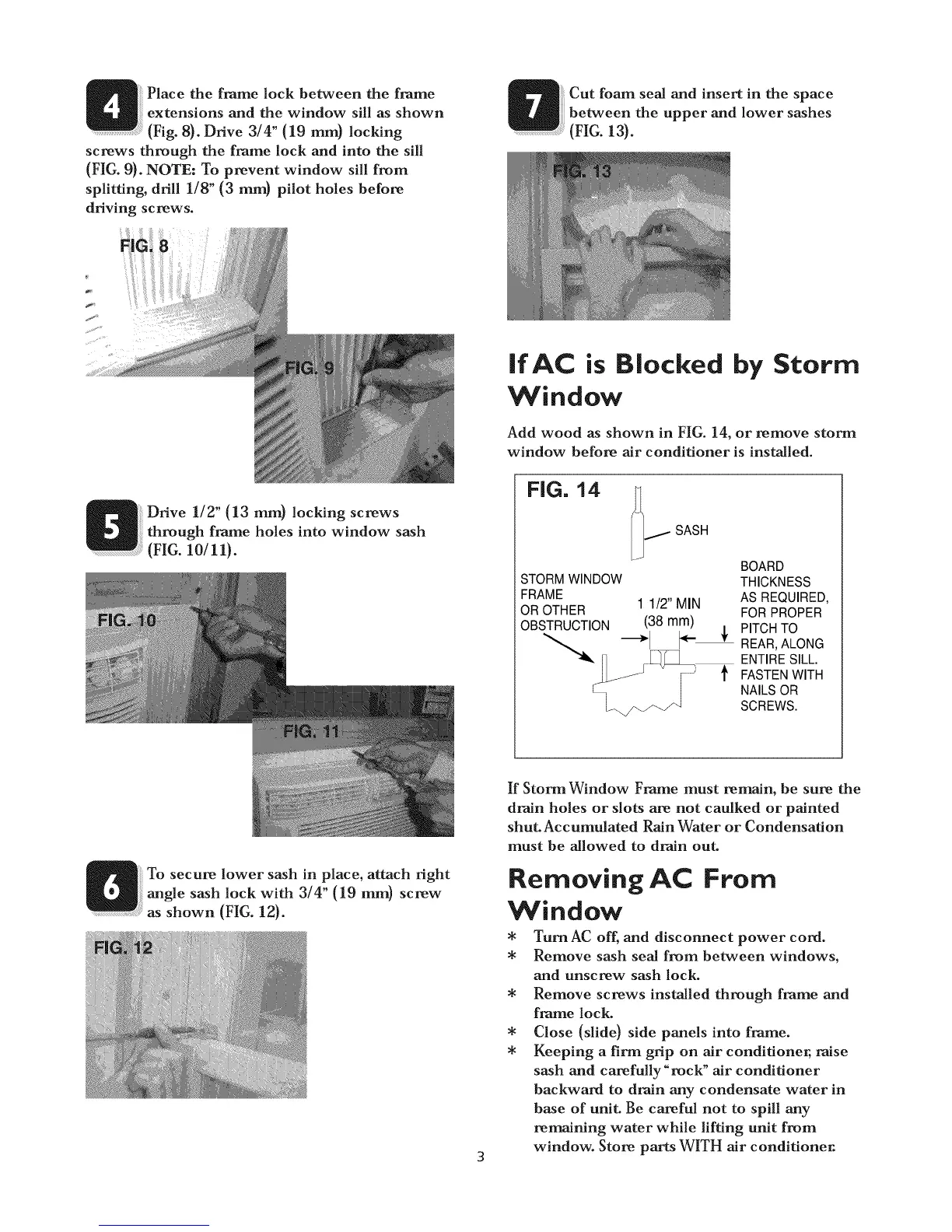

Place the frame lock between the frame
extensions and the window sill as shown
(Fig. 8). Drive 3/4" (19 ram) locking
screws through the frame lock and into the sill
(FIG. 9). NOTE: To prevent window sill from
splitting, drill 1/8" (3 ram) pilot holes before
driving screws.
Cut foam seal and insert in the space
between the upper and lower sashes
(riG.13).
Drive 1/2" (13 ram) locking screws
through frame holes into window sash
(FIG.10/11).
IfAC is Blocked by Storm
Window
Add wood as shown in FIG. 14, or remove storm
window before air conditioner is installed.
FiG. 14
SASH
STORM WINDOW
FRAME
OR OTHER 1 1/2" MIN
OBSTRUCTION (38 ram) .
BOARD
THICKNESS
AS REQUIRED,
FOR PROPER
PITCHTO
REAR,ALONG
ENTIRE SILL.
FASTENWITH
NAILS OR
SCREWS.
To secure lower sash in place, attach right
angle sash lock with 3/4" (19 ram) screw
as shown (FIG. 12).
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted
shut. Accumulated Rain Water or Condensation
must be allowed to drain out.
Removing AC From
Window
* Turn AC off, and disconnect power cord.
* Remove sash seal from between windows,
and unscrew sash lock.
* Remove screws installed through frame and
frame lock.
* Close (slide) side panels into frame.
* Keeping a firm grip on air conditioner, raise
sash and carefully "rock" air conditioner
backward to drain any condensate water in
base of unit. Be careful not to spill any
remaining water while lifting unit from
window. Store parts WITH air conditioner.
