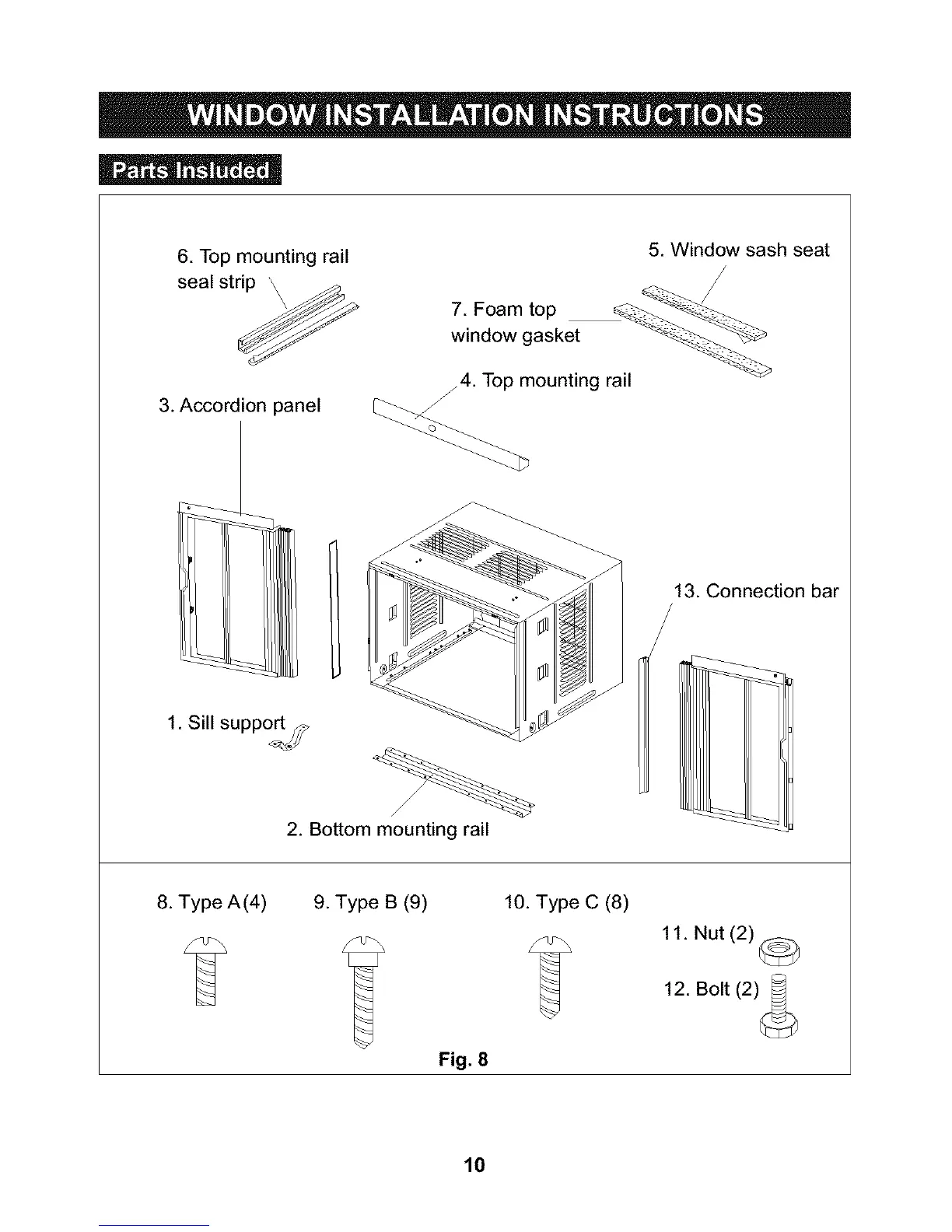

Frigidaire FAD052M7A1 - WINDOW INSTALLATION INSTRUCTIONS

6. Top mounting rail
seal strip \
\
\
3. Accordion panel
7. Foam top
window gasket
j4. Top mounting rail
5. Window sash seat
13. Connection bar
1. Sill suppo_
2. Bottom mounting rail
8. Type A (4) 9. Type B (9) 10. Type C (8)
Fig. 8
11. Nut (2)@
12. Bolt (2)_
10
