A i=o, t,'-- "H'l

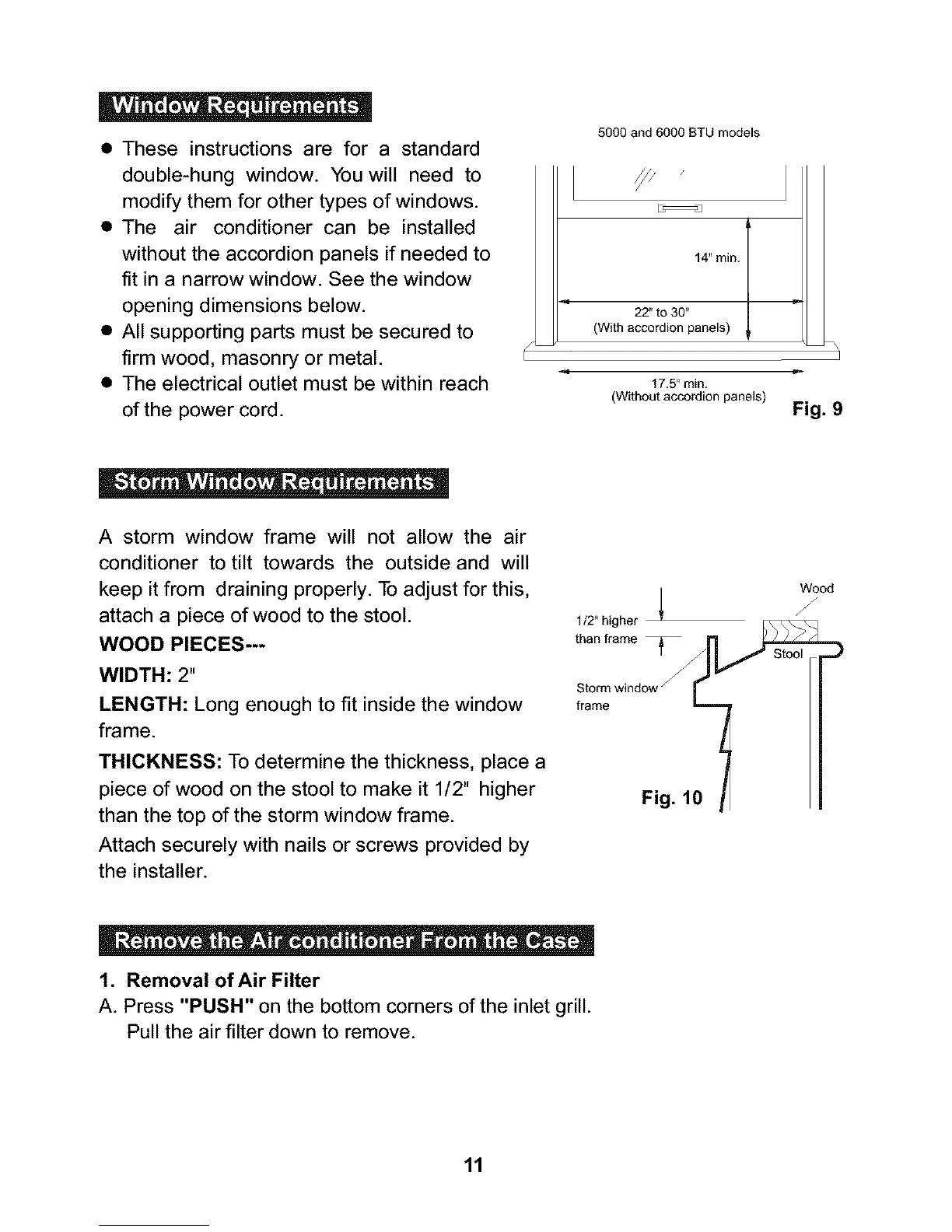

• These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed to
fit in a narrow window. See the window
opening dimensions below.
• All supporting parts must be secured to
firm wood, masonry or metal.
• The electrical outlet must be within reach
of the power cord.
i/
5000 and 6000 BTU models
14" rain,
22" to 30"
(With accordion panels)
17,5 _'min,
(Without accordion panels)
Fig. 9
e H _ = "
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the stool.
WOOD PIECES---
WIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2" higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
1/2" higher 1
than frame
frame
Fig. 10
Wood
Stool
"_ " _ H • " • " . =
1. Removal of Air Filter
A. Press "PUSH" on the bottom corners of the inlet grill.
Pull the air filter down to remove.
11
