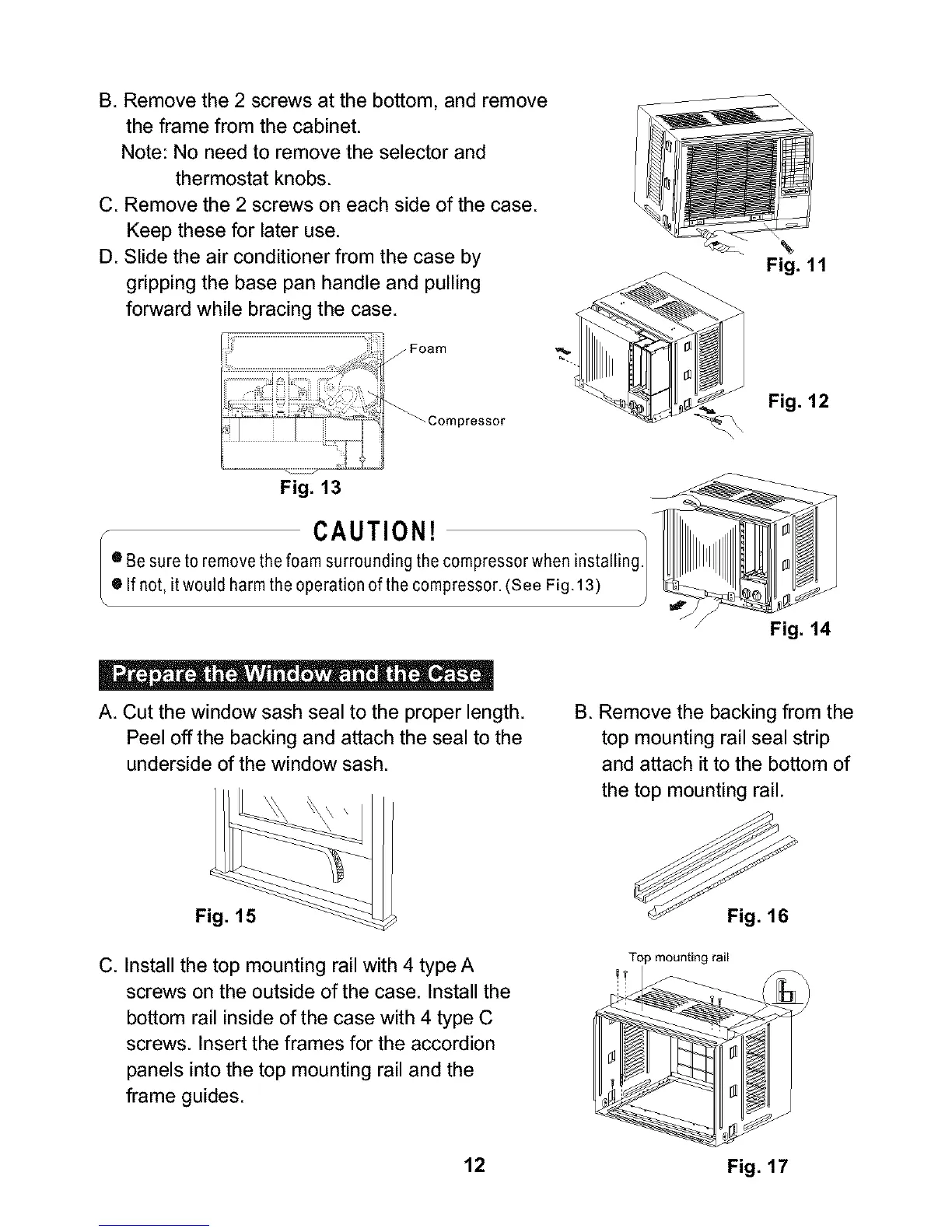

B. Remove the 2 screws at the bottom, and remove
the frame from the cabinet.
Note: No need to remove the selector and
thermostat knobs.
C. Remove the 2 screws on each side of the case.
Keep these for later use.
D. Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
\
%
Fig. 11
Fig. 12
Fig. 13
CAUTION!
• Besuretoremovethefoamsurroundingthecompressorwheninstalling_
• If not,itwouldharmtheoperationofthecompressor.(See Fig.13) J
J
J/
A. Cut the window sash seal to the proper length.
Peel offthe backing and attach the seal to the
underside of the window sash.
Fig. 14
B. Remove the backing from the
top mounting rail seal strip
and attach it to the bottom of
the top mounting rail.
Fig. 15
C. Install the top mounting rail with 4 type A
screws on the outside of the case. Install the
bottom rail inside of the case with 4 type C
screws. Insert the frames for the accordion
panels into the top mounting rail and the
frame guides.
Fig. 16
Top mounting rail
12 Fig. 17
To Next Page
