To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this appliance.
Operation of Current
Device
The power supply cord contains a current device that senses damage to the power cord. To test your
power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a click as the RESET button pops out.
3. Press the RESET button. Again you wilt notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is also indi-
cated by a light on the plug head).
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST button is pushed, or
it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one obtained from
the product manufacturer.

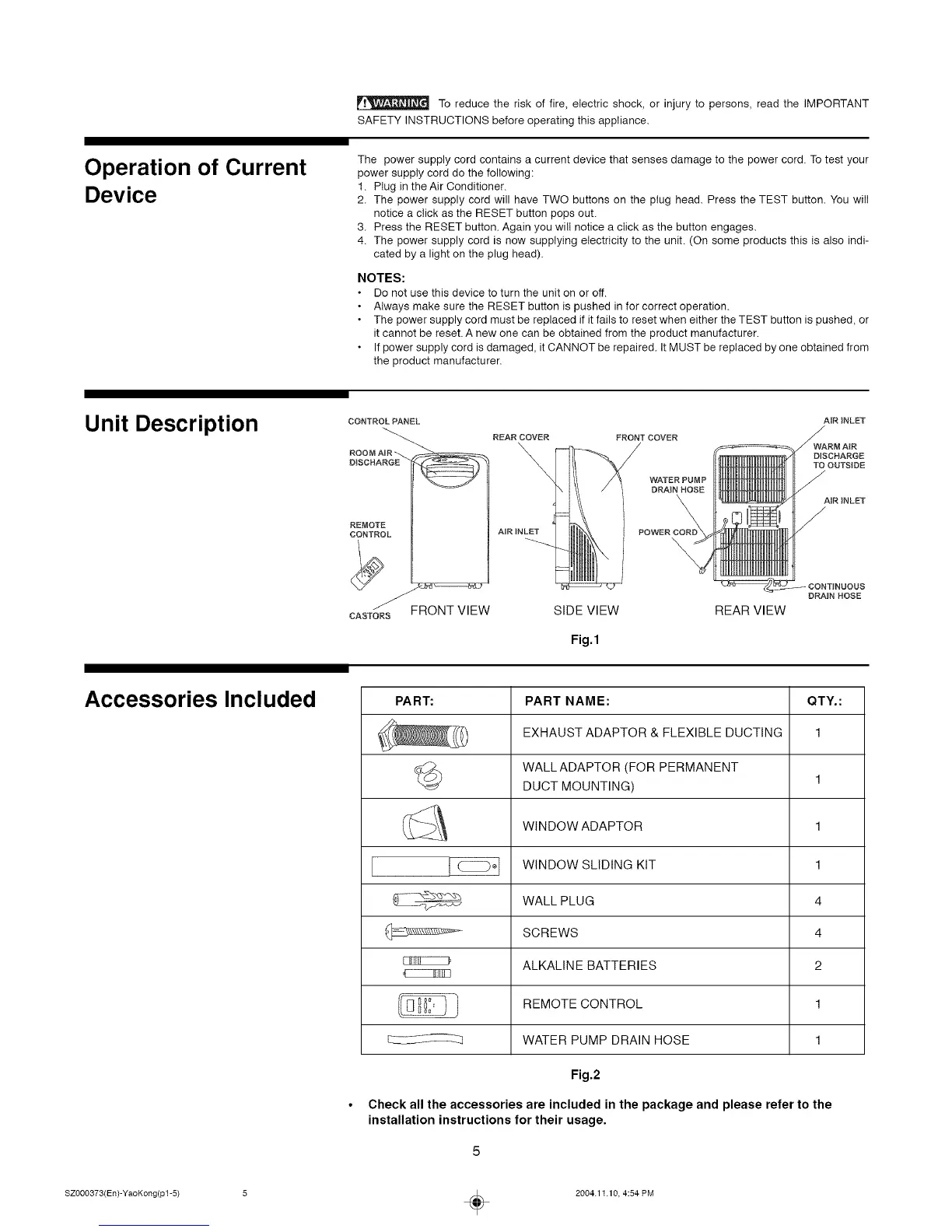

Unit Description
CONTROL PANEL
ROOM A_R
O_SCHARGE_
REMOTE
CONTROL
J FRONT VIEW
CASTORS
REAR COVER
AIR _NLET
FRONT COVER
"// WATER PUx_P
ORA_NHOSE
POWER
\
SiDE VIEW REAR VIEW
Fig.1
AIR _NLET
/
J WARM A_R
DISCHARGE
TO OUTSIDE
/
A_R _NLET
/
ORA_N HOSE
Accessories Included PA RT: QTY.:
1
PART NAME:
EXHAUST ADAPTOR & FLEXIBLE DUCTtNG
WALLADAPTOR (FOR PERMANENT
DUCT MOUNTING)
WINDOW ADAPTOR
WINDOW SLIDING KIT
WALL PLUG
SCREWS
ALKALINE BATTERIES
REMOTE CONTROL
WATER PUMP DRAIN HOSE
Fig.2
1
1
4
4
2
1
1
Check all the accessories are included in the package and please refer to the
installation instructions for their usage.
