ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
(and Optional Electric or Gas Cooktop Combination)
5. Cabinet Installation
The wall oven can tip when the door
is open. The mounting brackets supplied with the
wall oven must be attached to the cabinet and the
appliance to prevent tipping of the wall oven and
injury to persons.
Mounting Brackets Installation Instructions
1. Unpack the wall oven. Remove the bottom trim taped
on the oven side panel. Find the 2 mounting brackets
and screws included in the literature package.
2. Install the mounting brackets in the wall cabinet as
shown on Figure 5. Note: To prevent damage to
cabinet, it is recommended to drill 1/16" (0.16 cm) dia.
pilot holes before installing the mounting brackets.

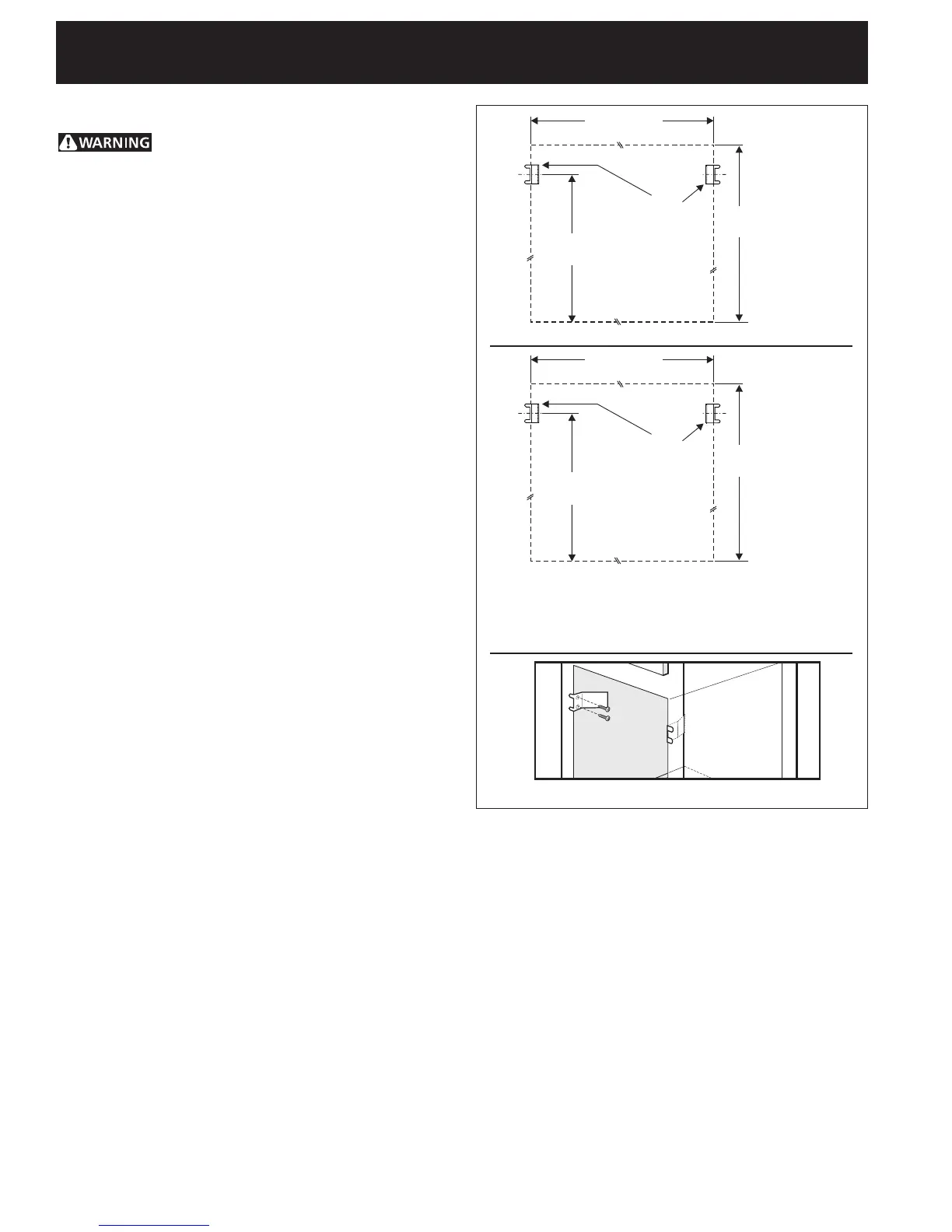

Figure 5
Mounting
Brackets
43 5/8" *
(110.8 cm)
H
see figure 2
F see figure 2
Double Wall ovens
Mounting
Brackets
22 3/16" *
(56.4 cm)
H
see figure 1
F see figure 1
Single Wall ovens
* If wood shims are installed please calculate this
dimension from the top of the shim to the middle of
the mounting bracket.
