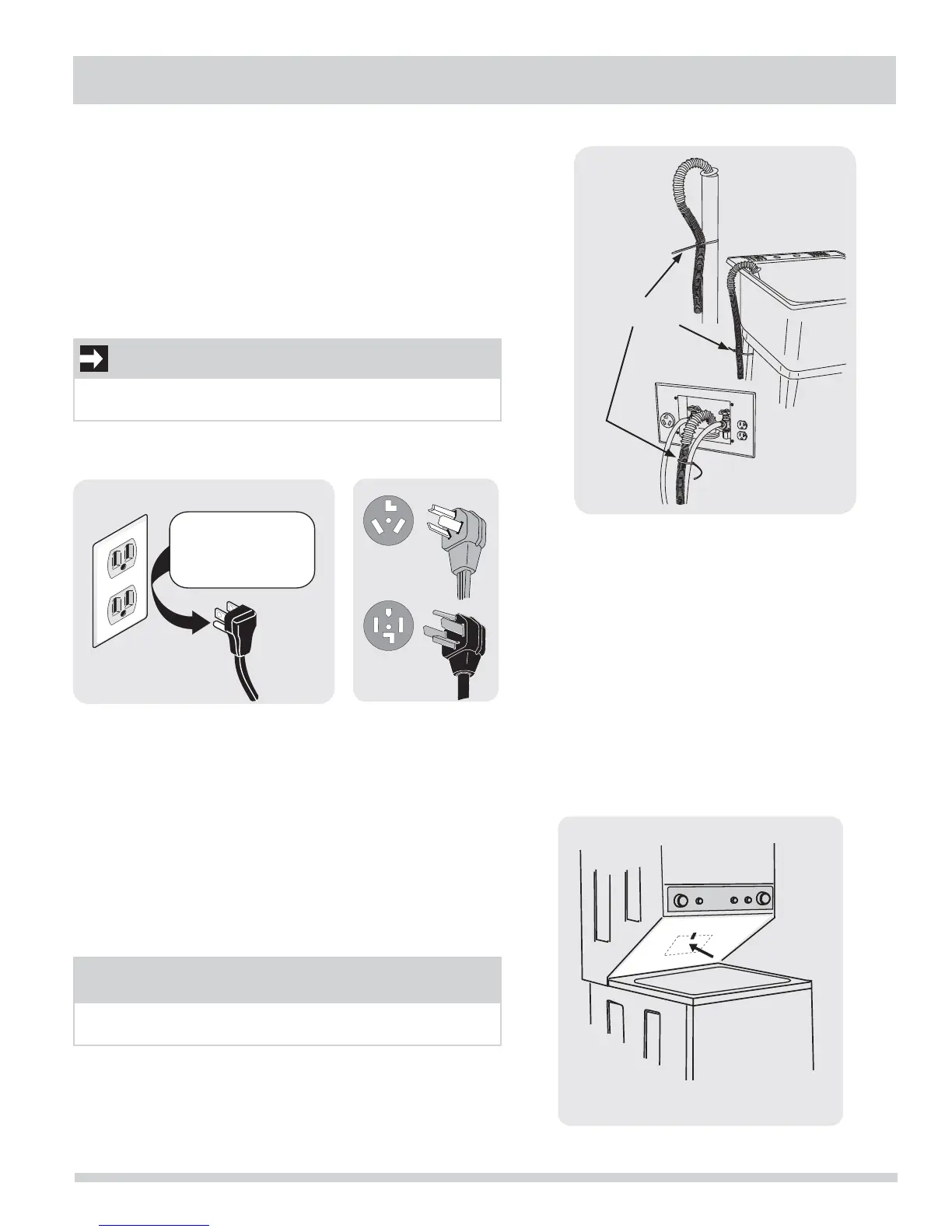

INSTALLATION INSTRUCTIONS
Connecting drain and electrical
Grounding type
wa
ll receptacl
Po
wer cord with
3-prong
gr
ounded plug
Do not,
under
an
y cir
cumstances,
cut,
remo
ve
or b
ypass th
gr
ounding pr
ong.
Í
NOTE
A wiring diagram and technical data sheet are located
behind the dryer access panel.
1 Form a “U” shape on the end of the drain hose with the
hose pointed toward the drain. Place the formed end in
a laundry tub or a standpipe and secure with a cable tie
provided in the enclosure package.
2 Place the hook end of the drain hose in the drain
opening. Secure the drain hose with the cable tie
(provided in the enclosure package) to the standpipe,
inlet hose, laundry tub, etc. so the hose does not pull
out from the force of the water.
3 Plug the power cord into a grounded outlet.
IMPORTANT
Be sure the power is off at a circuit breaker/fuse box before
plugging the power cord into an outlet.
4 Turn on the power at the circuit breaker/fuse box.
5 Read the
Use & Care Guide
provided with the laundry
center. It contains valuable and helpful information that
will save you time and money.
6 Run the washer through a complete cycle, checking for
water leaks and proper operation.
7 If you have any questions during initial operation,
please review the “Avoid Service Checklist” in your Use
& Care Guide before calling for service.
8 Place these instructions in a location near the appliance
for future reference.
