1. Press outer ring against face of
fitting
2. Pull to
remove tube
Insert tube and push until mark
touches face of fitting
To Connect
Adjustable Hinge
To reinstall the refrigerator door, reverse the
above steps.

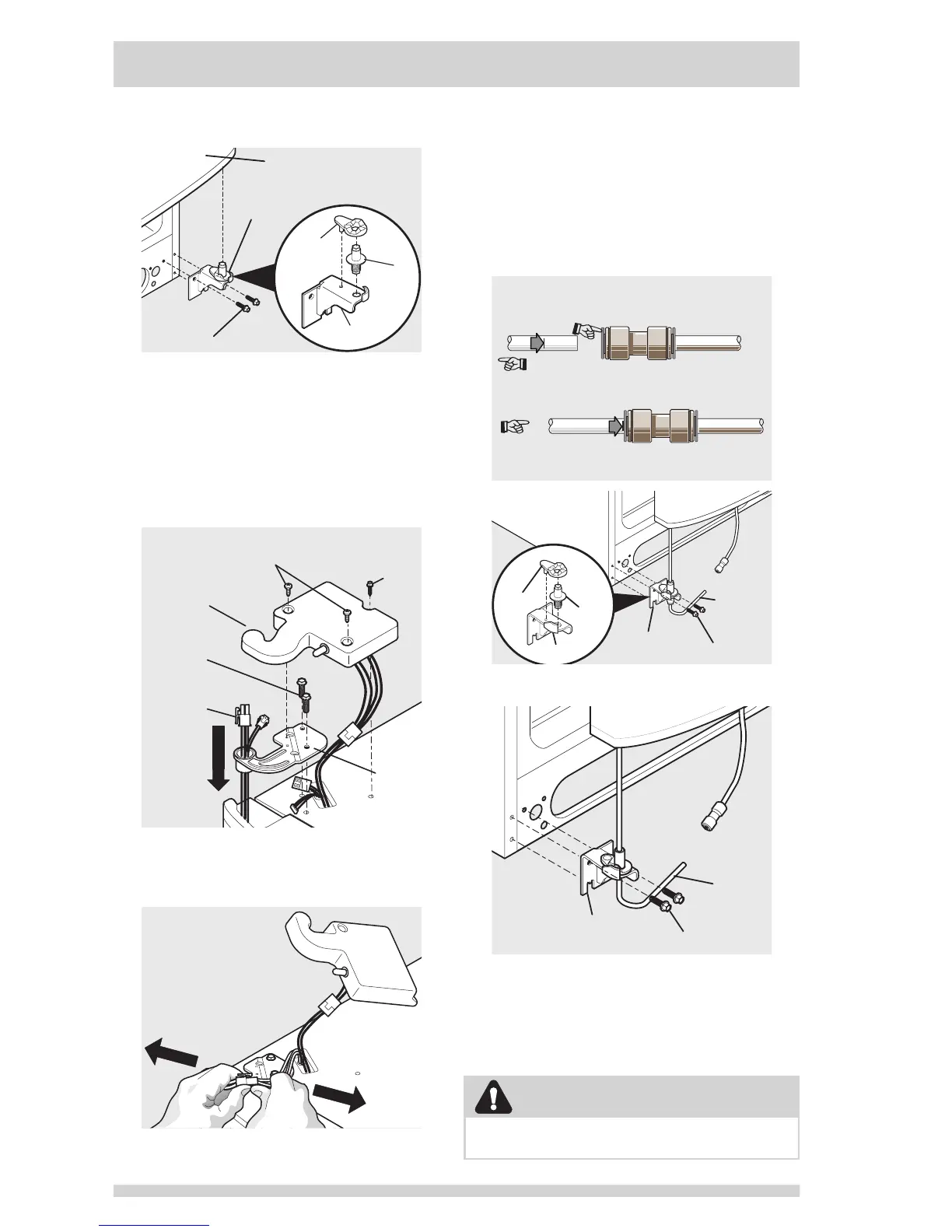

To remove the freezer top hinge
cover:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the freezer door:
1 Detach the multi-wire cable connector
located above the top hinge. Grasp both
sidesoftheconnectorrmlyandpullapart.
3 Detach the water tube from the connector
located below the freezer door. The
connector releases when you press its
outer sleeve inward.
4 Remove the screws from the top hinge
and pull the multi-wire cable through it.
Lift the door off of the bottom hinge.
5 Remove the two bottom hinge screws and
hinge if necessary.
6 Lay the door on its side to avoid damage
to the water tube extending from the
bottom hinge.
To reinstall the freezer door, reverse the above
steps.
3 Remove the two bottom hinge screws and
hinge if necessary.
2 Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
